30DEO (2003)
FUEL

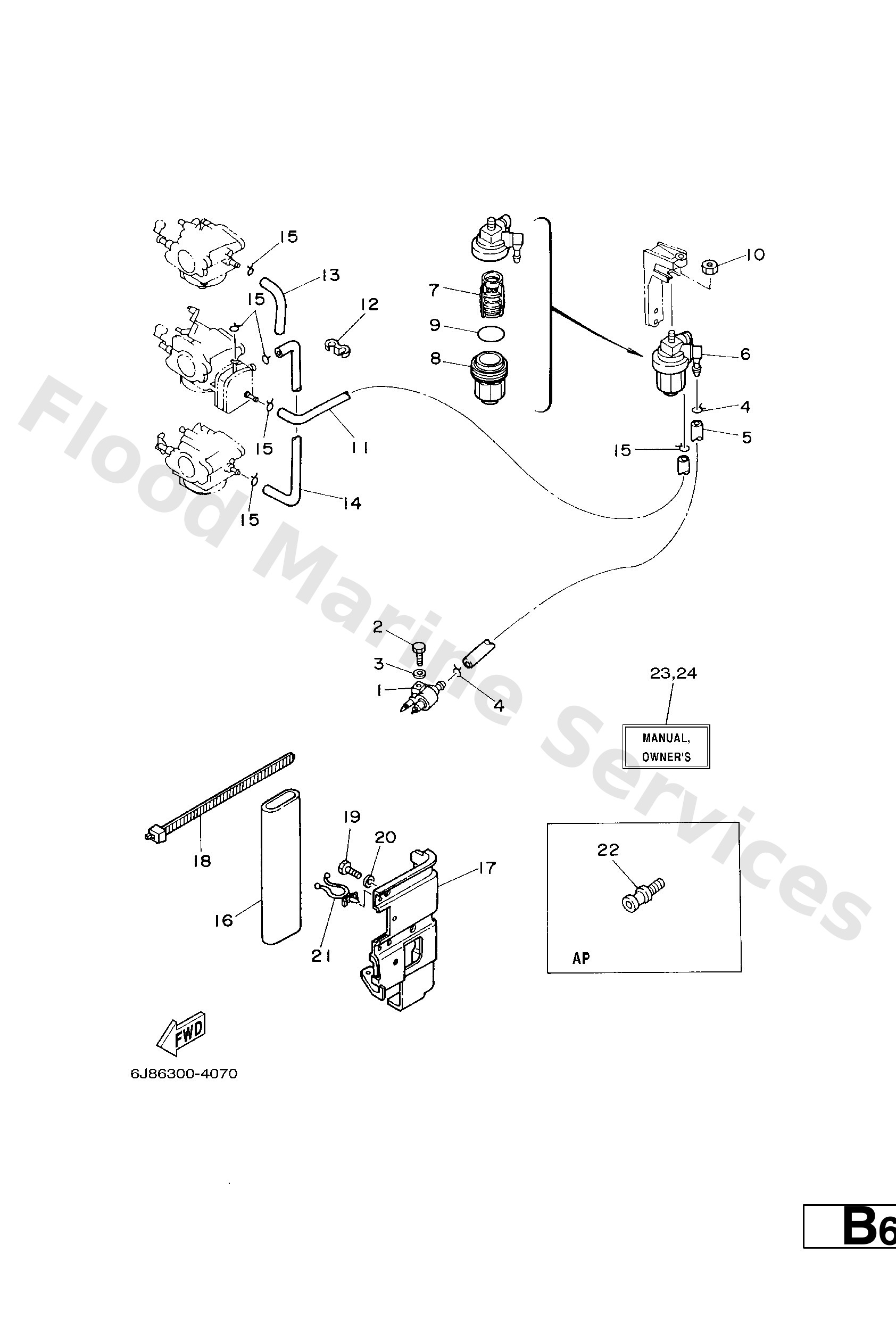

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G1−24304−02
Fuel pipe joint comp. 1
Loading…
↗
2
97095−06025
Bolt
Loading…
↗
3
92995−06600
Washer, plain (646)
Loading…
↗
4
90467−08004
Clip, pipe 6162435600
Loading…
↗
5
90445−09M00
Hose (l180)
Loading…
↗
6
61N−24560−00
Filter assembly
Loading…
↗
7
61N−24563−00
Element, filter
Loading…
↗
8
61N−24521−00
Cup, filter
Loading…
↗
9
93210−32738
O-ring(1wg)
Loading…
↗
10
90179−08M15
Nut(6j8)
Loading…
↗
11
6E5−24312−00
Pipe 2
Loading…
↗
12
90464−09M21
Clamp(6j8)
Loading…
↗
13
688−24313−00
Pipe, fuel 2
Loading…
↗
14
6J8−24311−00
Pipe, fuel 2
Loading…
↗
16
656−W2810−02
Tool kit
Loading…
↗
17
6J8−28170−00
Tool, holder
Loading…
↗
18
6G1−2811G−00
Band
Loading…
↗
19
97095−08016
Bolt, hexagon deep recess
Loading…
↗
20
92995−08600
Washer, plain (663)
Loading…
↗
21
90464−12M17
Clamp(6j8)
Loading…
↗
22
6E0−28193−00−94
D)12.5MM
Plug, water check
Loading…
↗
23
6L3−28199−75−A0
UR (E,F,S)
Om 20d, 25n, 30d
Loading…
↗
23
6L3−28199−75−B0
UR (D,NL,I)
Om 20d, 25n, 30d
Loading…
↗
24
6L3−28199−86−A0
UR (DK,P,GR)
O/m 20dmho/dwo/25nmho/30de '03
Loading…
↗
24
6L3−28199−86−B0
UR (N,S,SS)
O/m 20dmho/dwo/25nmho/30de '03
Loading…
↗
