30DMHO (2007)
FUEL

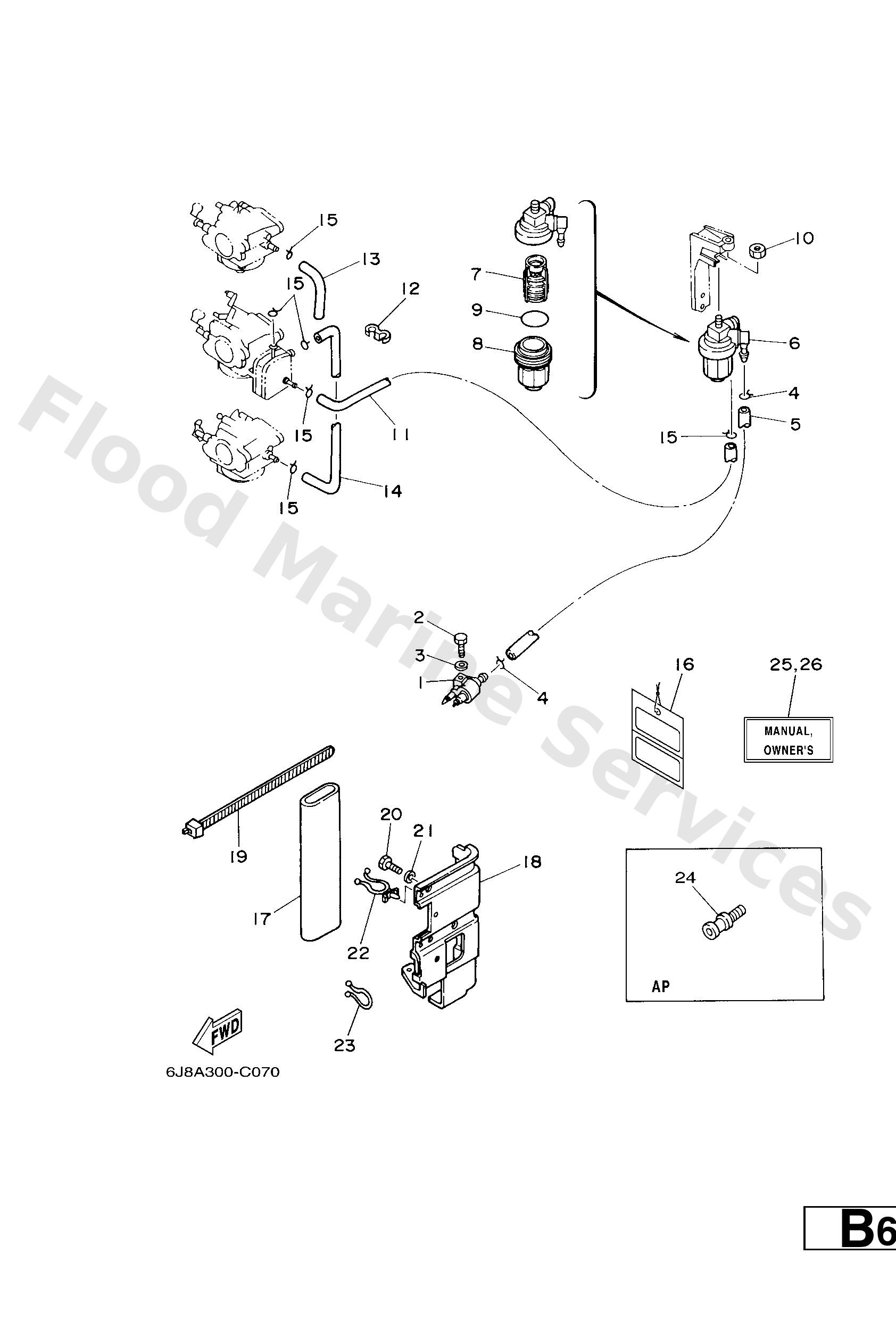

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
2
9709506025
Bolt
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
9046708004
Clip, pipe 6162435600
Loading…
↗
5
9044509M00
Hose (l180)
Loading…
↗
6
61N2456000
Filter assembly
Loading…
↗
7
61N2456300
Element, filter
Loading…
↗
8
61N2452100
Cup, filter
Loading…
↗
9
9321032738
O-ring(1wg)
Loading…
↗
10
9017908M15
Nut(6j8)
Loading…
↗
11
6E52431200
Pipe 2
Loading…
↗
12
9046409M21
Clamp(6j8)
Loading…
↗
13
6882431300
Pipe, fuel 2
Loading…
↗
14
6J82431100
Pipe, fuel 2
Loading…
↗
16
61H2819R31
-
Loading…
↗
17
656W281002
Tool kit
Loading…
↗
18
6J82817000
Tool, holder
Loading…
↗
19
6G12811G00
Band
Loading…
↗
20
9709508016
Bolt, hexagon deep recess
Loading…
↗
21
9299508600
Washer, plain (663)
Loading…
↗
22
9046412M17
Clamp(6j8)
Loading…
↗
23
9046518147
Clamp
Loading…
↗
24
6E0281930094
AP D)12.5MM
Plug, water check
Loading…
↗
25
6J82819972E0
UR (E)
O/m 30d '07
Loading…
↗
25
6J82819972F0
UR (F)
O/m 30d '07
Loading…
↗
25
6J82819972S0
UR (ES)
O/m 30d '07
Loading…
↗
25
6J82819972G0
UR (D)
O/m 30d '07
Loading…
↗
25
6J82819972H0
UR (I)
O/m 30d '07
Loading…
↗
25
6J82819972D0
UR (NL)
O/m 30d '07
Loading…
↗
26
6J8281998DK0
UR (DK)
O/m 30d '07
Loading…
↗
26
6J8281998DR0
UR (GR)
O/m 30d '07
Loading…
↗
26
6J8281998DP0
UR (P)
O/m 30d '07
Loading…
↗
26
6J8281998DN0
UR (N)
O/m 30d '07
Loading…
↗
26
6J8281998DM0
UR (S)
O/m 30d '07
Loading…
↗
26
6J8281998DL0
UR (SF)
O/m 30d '07
Loading…
↗
