30DMHO (2013)
FUEL

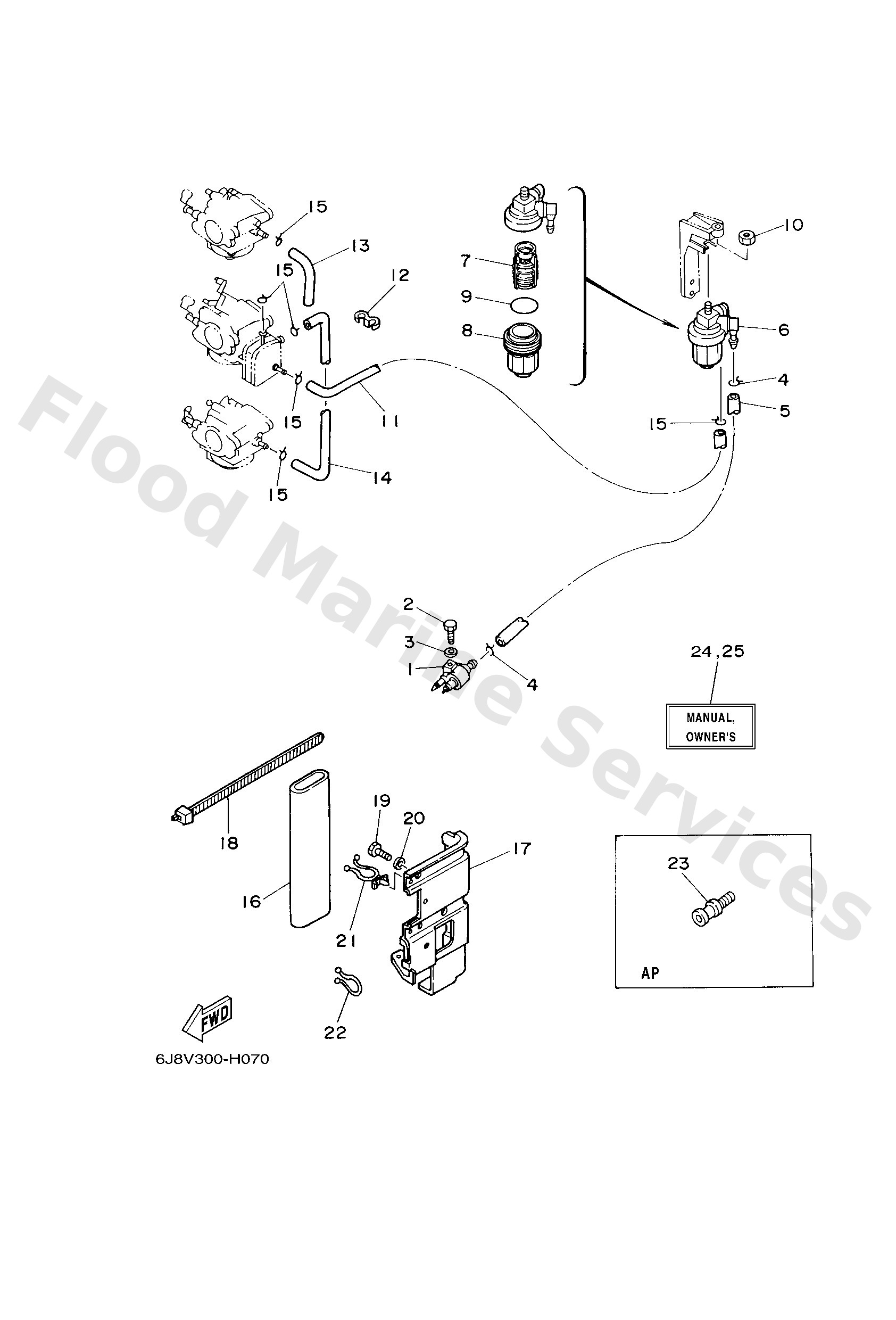

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
2
9709506025
Bolt
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
9046708004
Clip, pipe 6162435600
Loading…
↗
5
9044509M00
Hose (l180)
Loading…
↗
6
61N2456000
Filter assembly
Loading…
↗
7
61N2456300
Element, filter
Loading…
↗
8
61N2452100
Cup, filter
Loading…
↗
9
9321032738
O-ring(1wg)
Loading…
↗
10
9017908M15
Nut(6j8)
Loading…
↗
11
6E52431200
Pipe 2
Loading…
↗
12
9046409M21
Clamp(6j8)
Loading…
↗
13
6882431300
Pipe, fuel 2
Loading…
↗
14
6J82431100
Pipe, fuel 2
Loading…
↗
16
656W281002
AP
Tool kit
Loading…
↗
17
6J82817000
Tool, holder
Loading…
↗
18
6G12811G00
AP
Band
Loading…
↗
19
9709508016
Bolt, hexagon deep recess
Loading…
↗
20
9299508600
Washer, plain (663)
Loading…
↗
21
9046412M17
Clamp(6j8)
Loading…
↗
22
9046518147
Clamp
Loading…
↗
23
6E0281930094
AP D)12.5MM
Plug, water check
Loading…
↗
24
6J82819977G0
UR (D)
Manual,Owner's
Loading…
↗
24
6J82819977S0
UR (ES)
Manual,Owner's
Loading…
↗
24
6J82819977F0
UR (F)
Manual,Owner's
Loading…
↗
24
6J82819977E0
UR (E)
Manual,Owner's
Loading…
↗
24
6J82819977D0
UR (NL)
Manual,Owner's
Loading…
↗
24
6J82819977H0
UR (I)
Manual,Owner's
Loading…
↗
25
6J8281998JK0
UR (DK)
Manual,Owner's
Loading…
↗
25
6J8281998JR0
UR (GR)
Manual,Owner's
Loading…
↗
25
6J8281998JP0
UR (P)
Manual,Owner's
Loading…
↗
25
6J8281998JN0
UR (N)
Manual,Owner's
Loading…
↗
25
6J8281998JM0
UR (S)
Manual,Owner's
Loading…
↗
25
6J8281998JL0
UR (SF)
Manual,Owner's
Loading…
↗
