40VEO (2009)
FUEL

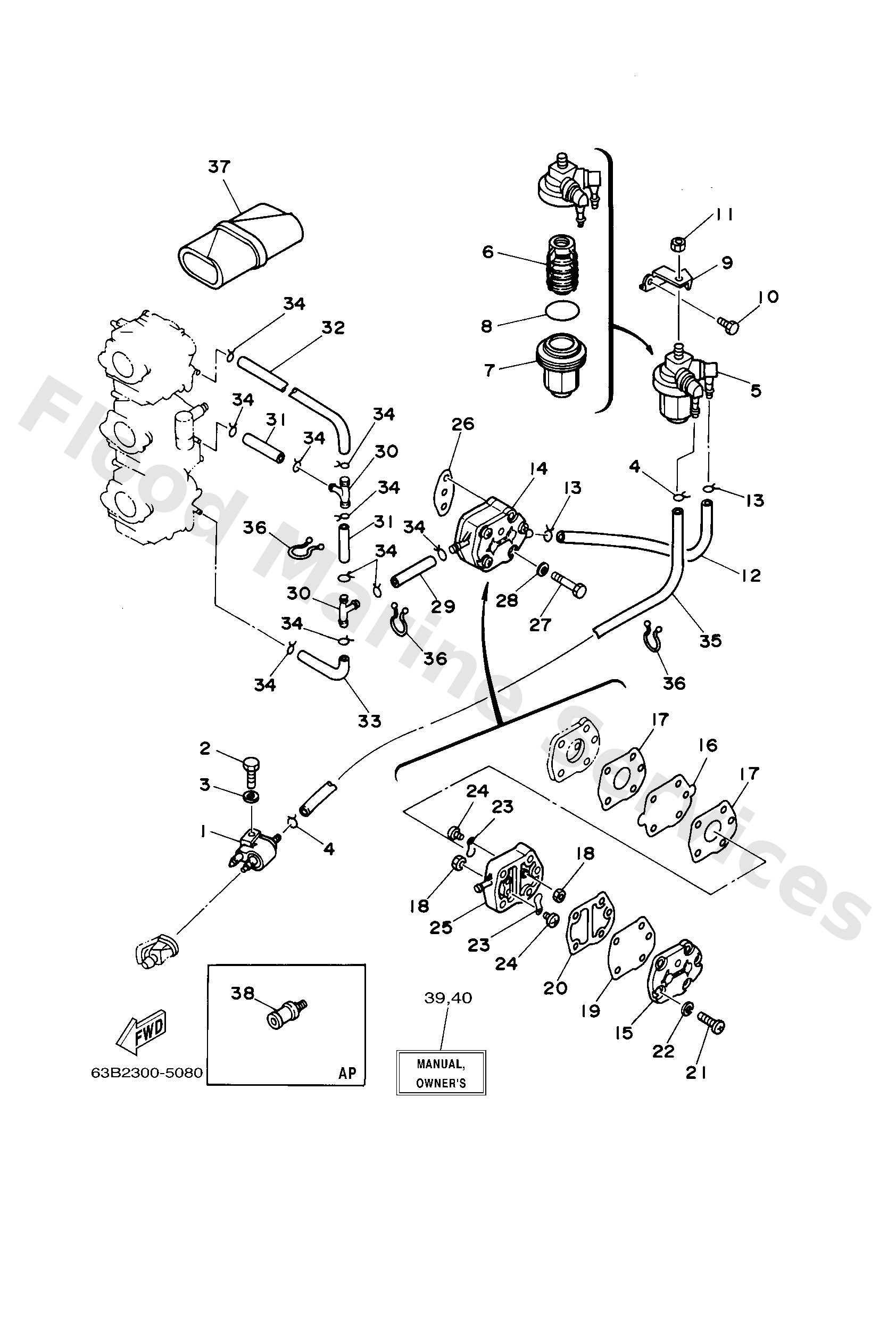

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
2
9709506025
Bolt
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
9046708004
Clip, pipe 6162435600
Loading…
↗
5
61N2456000
Filter assembly
Loading…
↗
6
61N2456300
Element, filter
Loading…
↗
7
61N2452100
Cup, filter
Loading…
↗
8
9321032738
O-ring(1wg)
Loading…
↗
9
6H42456602
Bracket, filter
Loading…
↗
10
9701306014
Bolt(gj3)
Loading…
↗
11
9538008600
Nut (661)
Loading…
↗
12
6H42431400
Pipe 4
Loading…
↗
14
6922441000
Fuel pump assembly
Loading…
↗
15
6A02441300
Cover, pump
Loading…
↗
16
6922441100
Diaphragm
Loading…
↗
17
6482443401
Gasket, body
Loading…
↗
18
9538003600
Nut (6g8)
Loading…
↗
19
6632441100
Diaphragm
Loading…
↗
20
6482443502
Gasket, body 2
Loading…
↗
21
9850305028
Ybs86-530 screw,panhead
Loading…
↗
22
9299005100
Ybs67-5 washer, spring
Loading…
↗
23
6A02442101
Valve, check
Loading…
↗
24
6A01432500
Screw, pan head
Loading…
↗
25
6A02441202
Body 1
Loading…
↗
26
65024431A0
Gasket,fuel pump
Loading…
↗
27
9709506040
Bolt (682)
Loading…
↗
29
9044509063
Hose (l1500)
Loading…
↗
30
6882437800
Pipe, joint
Loading…
↗
31
9044509057
Hose (l180)
Loading…
↗
32
6H42431300
Pipe 3
Loading…
↗
33
6H42431200
Pipe, fuel 2
Loading…
↗
35
6H42431100
Pipe 1
Loading…
↗
36
9046415M11
Clamp (3y2)
Loading…
↗
37
656W281002
Tool kit
Loading…
↗
38
6E0281930094
AP D)12.5MM
Plug, water check
Loading…
↗
39
63B281997DE0
UR (E)
O/m 40v/50h '09
Loading…
↗
39
63B281997DH0
UR (I)
O/m 40v/50h '09
Loading…
↗
39
63B281997DD0
UR (NL)
O/m 40v/50h '09
Loading…
↗
39
63B281997DG0
UR (D)
O/m 40v/50h '09
Loading…
↗
39
63B281997DS0
UR (ES)
O/m 40v/50h '09
Loading…
↗
39
63B281997DF0
UR (F)
O/m 40v/50h '09
Loading…
↗
40
63B281998DK0
UR (DK)
O/m 40v/50h '09
Loading…
↗
40
63B281998DR0
UR (GR)
O/m 40v/50h '09
Loading…
↗
40
63B281998DP0
UR (P)
O/m 40v/50h '09
Loading…
↗
40
63B281998DN0
UR (N)
O/m 40v/50h '09
Loading…
↗
40
63B281998DM0
UR (S)
O/m 40v/50h '09
Loading…
↗
40
63B281998DL0
UR (SF)
O/m 40v/50h '09
Loading…
↗
