40VMHO (2021)
FUEL

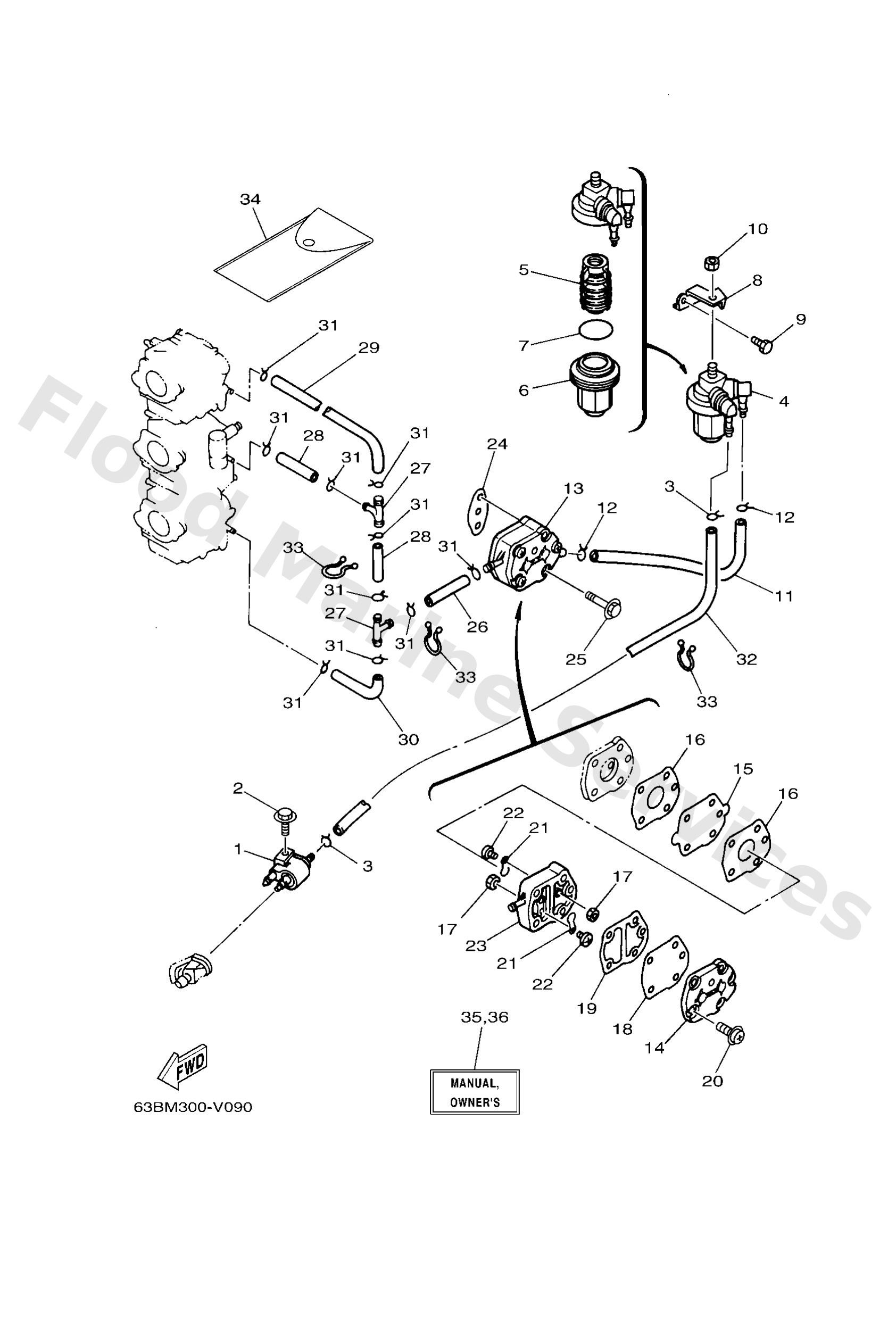

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430410
Fuel pipe joint comp. 1
Loading…
↗
2
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
3
9046708004
Clip, pipe 6162435600
Loading…
↗
4
61N2456000
Filter assembly
Loading…
↗
5
61N2456300
Element, filter
Loading…
↗
6
61N2452100
Cup, filter
Loading…
↗
7
9321032738
O-ring(1wg)
Loading…
↗
8
6H42456602
Bracket, filter
Loading…
↗
9
9701306014
Bolt(gj3)
Loading…
↗
10
9538008600
Nut (661)
Loading…
↗
11
6H42431400
Pipe 4
Loading…
↗
13
6922441001
Fuel pump assembly
Loading…
↗
14
6A02441300
Cover, pump
Loading…
↗
15
6922441100
Diaphragm
Loading…
↗
16
6482443401
Gasket, body
Loading…
↗
17
9538003600
Nut (6g8)
Loading…
↗
18
6632441100
Diaphragm
Loading…
↗
19
6482443503
Gasket, body 2
Loading…
↗
20
9798005128
Screw, with washer
Loading…
↗
21
6A02442101
Valve, check
Loading…
↗
22
6A01432500
Screw, pan head
Loading…
↗
23
6A02441202
Body 1
Loading…
↗
24
65024431A0
Gasket,fuel pump
Loading…
↗
25
97E9506540
Bolt, hexagon w/w deep recess
Loading…
↗
26
9044509063
Hose (l1500)
Loading…
↗
27
6882437800
Pipe, joint
Loading…
↗
28
9044509057
Hose (l180)
Loading…
↗
29
6H42431300
Pipe 3
Loading…
↗
30
6H42431200
Pipe, fuel 2
Loading…
↗
32
6H42431100
Pipe 1
Loading…
↗
33
9046415M11
Clamp (3y2)
Loading…
↗
34
656W281003
AP
Tool kit
Loading…
↗
35
63B281997NF0
UR (F)
Manual,owner's
Loading…
↗
35
63B281997NH0
UR (I)
Manual,owner's
Loading…
↗
35
63B281997ND0
UR (NL)
Manual,owner's
Loading…
↗
35
63B281997NG0
UR (D)
Manual,owner's
Loading…
↗
35
63B281997NS0
UR (ES)
Manual,owner's
Loading…
↗
35
63B281997NE0
UR (E)
Manual,owner's
Loading…
↗
36
63B281998NK0
UR (DK)
Manual,owner's
Loading…
↗
36
63B281998NR0
UR (GR)
Manual,owner's
Loading…
↗
36
63B281998NP0
UR (P)
Manual,owner's
Loading…
↗
36
63B281998NN0
UR (N)
Manual,owner's
Loading…
↗
36
63B281998NM0
UR (S)
Manual,owner's
Loading…
↗
36
63B281998NL0
UR (SF)
Manual,owner's
Loading…
↗
