55BET (2002)
FUEL

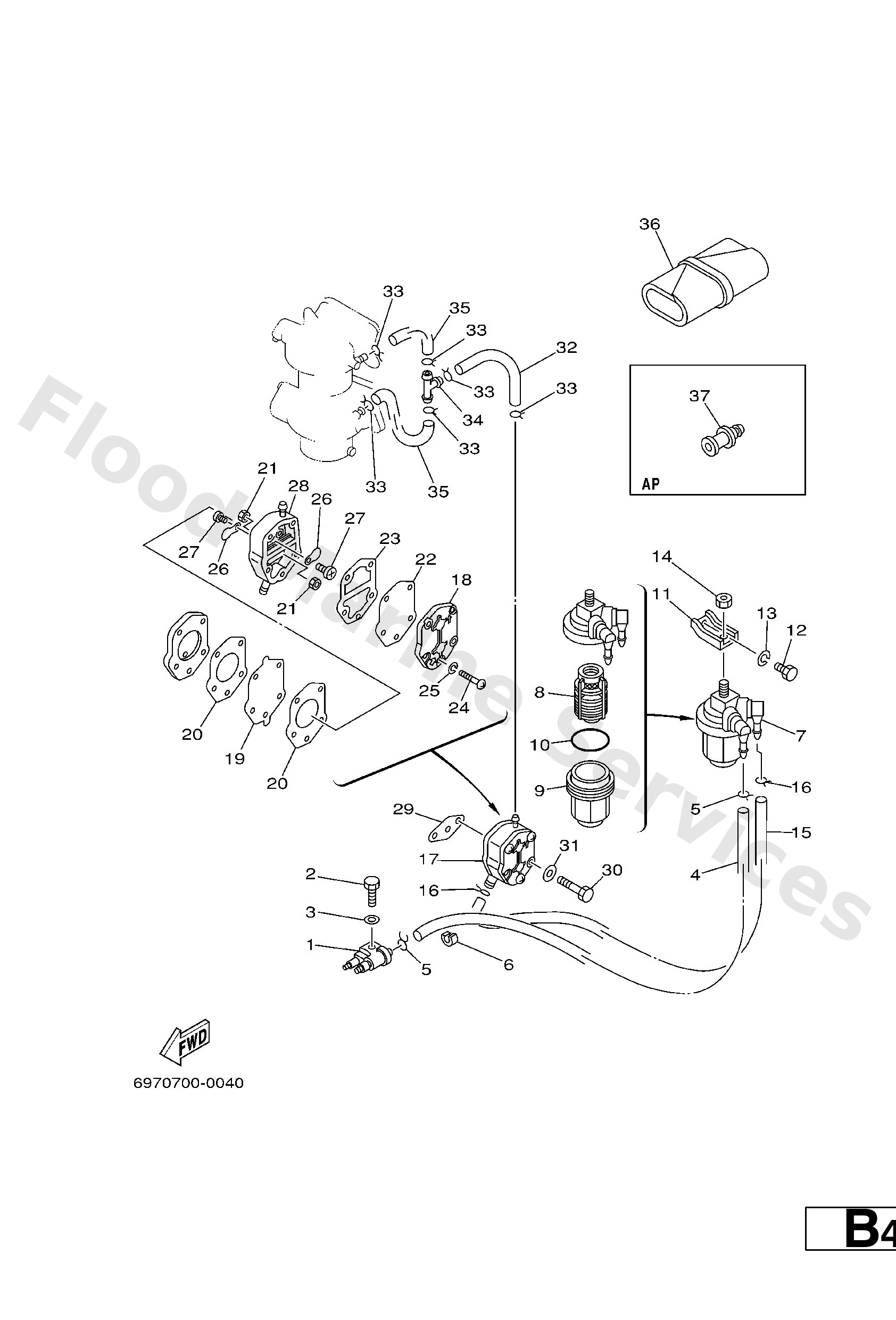

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G1--24304--02
Fuel pipe joint comp. 1
Loading…
↗
2
97095--06020
Bolt(7u8)
Loading…
↗
3
92995--06600
Washer, plain (646)
Loading…
↗
4
9044509109
Hose (l1500)
Loading…
↗
5
90467--08004
Clip, pipe 6162435600
Loading…
↗
6
9046404011
Clamp(663)
Loading…
↗
7
61N--24560--00
Filter assembly
Loading…
↗
8
61N--24563--00
Element, filter
Loading…
↗
9
61N--24521--00
Cup, filter
Loading…
↗
10
93210--32738
O-ring(1wg)
Loading…
↗
11
6E92456670
Bracket, filter
Loading…
↗
12
97013--06014
Bolt(gj3)
Loading…
↗
13
92903--06100
Washer(6a1)
Loading…
↗
14
95380--08600
Nut (661)
Loading…
↗
15
90445--09097
Hose (l1500)
Loading…
↗
17
692--24410--00
Fuel pump assembly
Loading…
↗
18
6A0--24413--00
Cover, pump
Loading…
↗
19
692--24411--00
Diaphragm
Loading…
↗
20
648--24434--01
Gasket, body
Loading…
↗
21
95380--03600
Nut (6g8)
Loading…
↗
22
663--24411--00
Diaphragm
Loading…
↗
23
648--24435--02
Gasket, body 2
Loading…
↗
24
98503--05028
Ybs86-530 screw,panhead
Loading…
↗
25
92990--05100
Ybs67-5 washer, spring
Loading…
↗
26
6A0--24421--01
Valve, check
Loading…
↗
27
6A0--14325--00
Screw, pan head
Loading…
↗
28
6A0--24412--02
Body 1
Loading…
↗
29
650--24431--A0
Gasket,fuel pump
Loading…
↗
30
97095--06040
Bolt (682)
Loading…
↗
32
90445--09086
Hose (l1500)
Loading…
↗
34
688--24378--00
Pipe, joint
Loading…
↗
35
90445--09061
4−
Loading…
↗
36
656--W2810--02
Tool kit
Loading…
↗
37
626--28193--01--94
AP D)15MM
Plug, water check
Loading…
↗
