70BETO (2015)
FUEL

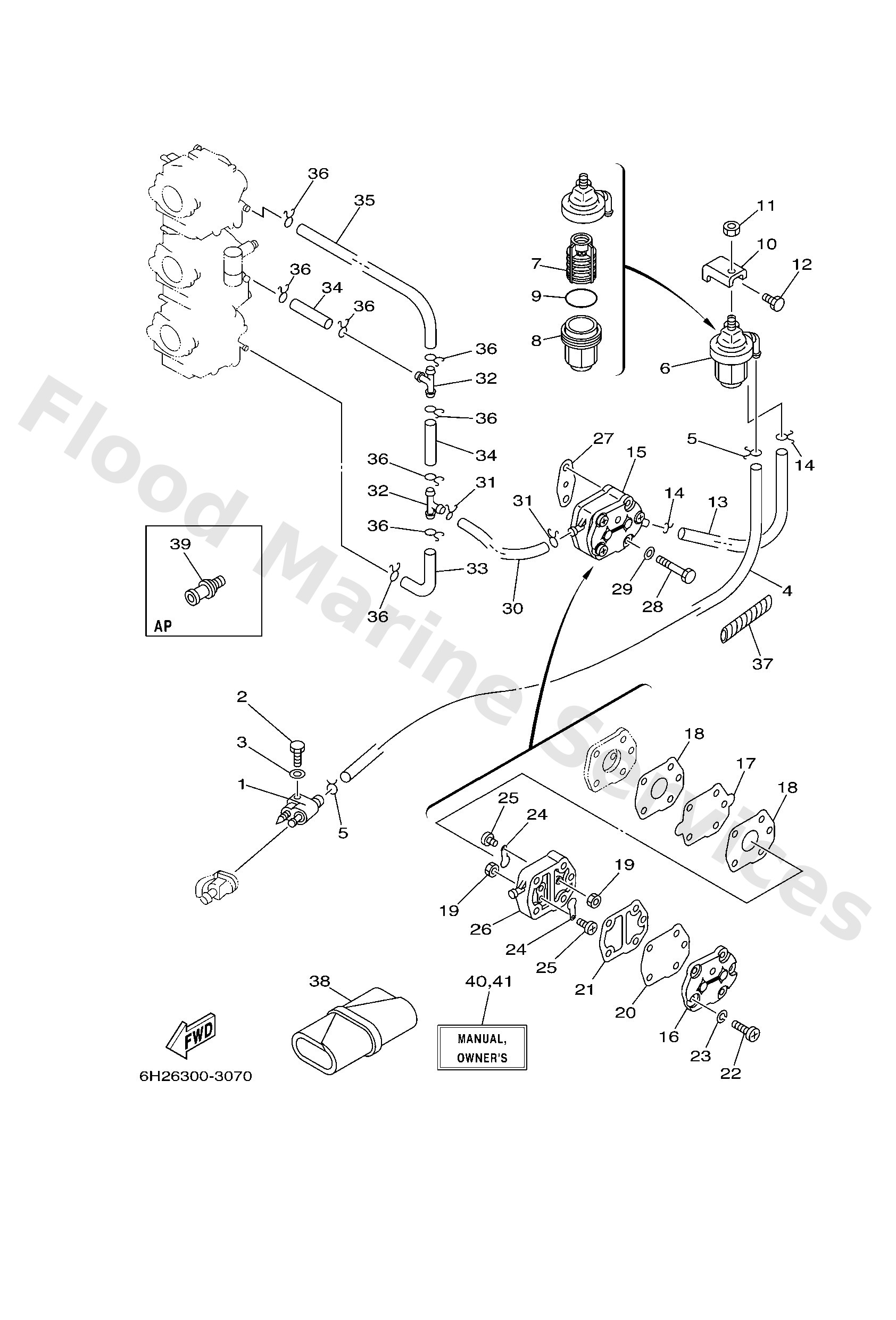

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
2
9709506025
Bolt
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
9044509M75
Hose (l1500)
Loading…
↗
5
9046708004
Clip, pipe 6162435600
Loading…
↗
6
61N2456000
Filter assembly
Loading…
↗
7
61N2456300
Element, filter
Loading…
↗
8
61N2452100
Cup, filter
Loading…
↗
9
9321032738
O-ring(1wg)
Loading…
↗
10
6482456602
Bracket, filter
Loading…
↗
11
9538008600
Nut (661)
Loading…
↗
12
9701306014
Bolt(gj3)
Loading…
↗
13
9044509072
Hose (l1500)
Loading…
↗
15
6922441000
Fuel pump assembly
Loading…
↗
16
6A02441300
Cover, pump
Loading…
↗
17
6922441100
Diaphragm
Loading…
↗
18
6482443401
Gasket, body
Loading…
↗
19
9538003600
Nut (6g8)
Loading…
↗
20
6632441100
Diaphragm
Loading…
↗
21
6482443502
Gasket, body 2
Loading…
↗
22
9850305028
Ybs86-530 screw,panhead
Loading…
↗
23
9299005100
Ybs67-5 washer, spring
Loading…
↗
24
6A02442101
Valve, check
Loading…
↗
25
6A01432500
Screw, pan head
Loading…
↗
26
6A02441202
Body 1
Loading…
↗
27
65024431A0
Gasket,fuel pump
Loading…
↗
28
9709506040
Bolt (682)
Loading…
↗
32
6882437800
Pipe, joint
Loading…
↗
33
6H32431300
Pipe, fuel 2
Loading…
↗
34
9044509220
Hose (l1500)
Loading…
↗
35
6H32431400
Pipe 4
Loading…
↗
37
9044610M01
Tube (6e5)
Loading…
↗
38
656W281002
AP
Tool kit
Loading…
↗
39
6E02819300
AP D)12.5MM
Plug, water check
Loading…
↗
40
6H32819971E0
UR (E)
Manual,Owner's
Loading…
↗
40
6H32819971F0
UR (F)
Manual,Owner's
Loading…
↗
40
6H32819971S0
UR (ES)
Manual,Owner's
Loading…
↗
40
6H32819971G0
UR (D)
Manual,Owner's
Loading…
↗
40
6H32819971D0
UR (NL)
Manual,Owner's
Loading…
↗
40
6H32819971H0
UR (I)
Manual,Owner's
Loading…
↗
41
6H32819981K0
UR (DK)
Manual,Owner's
Loading…
↗
41
6H32819981R0
UR (GR)
Manual,Owner's
Loading…
↗
41
6H32819981P0
UR (P)
Manual,Owner's
Loading…
↗
41
6H32819981N0
UR (N)
Manual,Owner's
Loading…
↗
41
6H32819981M0
UR (S)
Manual,Owner's
Loading…
↗
41
6H32819981L0
UR (SF)
Manual,Owner's
Loading…
↗
