75CETO (2002)
FUEL

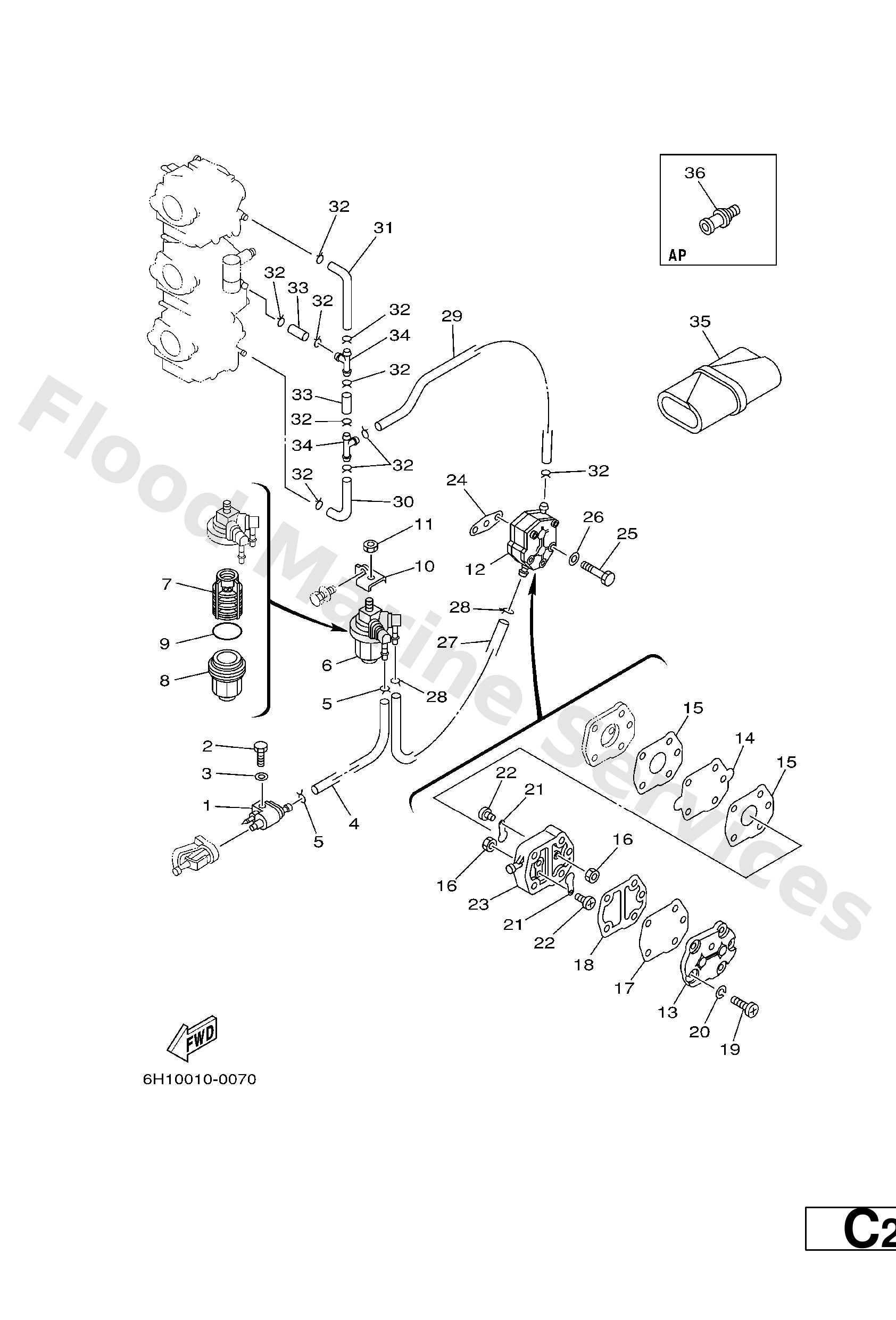

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G1−24304−02
Fuel pipe joint comp. 1
Loading…
↗
2
97095−06020
Bolt(7u8)
Loading…
↗
3
92995−06600
Washer, plain (646)
Loading…
↗
4
90445−09105
Hose (l420)
Loading…
↗
5
90467−08004
Clip, pipe 6162435600
Loading…
↗
6
61N−24560−00
Filter assembly
Loading…
↗
7
61N−24563−00
Element, filter
Loading…
↗
8
61N−24521−00
Cup, filter
Loading…
↗
9
93210−32738
O-ring(1wg)
Loading…
↗
10
6H1−24566−01
Bracket, filter
Loading…
↗
11
95380−08600
Nut (661)
Loading…
↗
12
692−24410−00
Fuel pump assembly
Loading…
↗
13
6A0−24413−00
Cover, pump
Loading…
↗
14
692−24411−00
Diaphragm
Loading…
↗
15
648−24434−01
Gasket, body
Loading…
↗
16
95380−03600
Nut (6g8)
Loading…
↗
17
663−24411−00
Diaphragm
Loading…
↗
18
648−24435−02
Gasket, body 2
Loading…
↗
19
98503−05028
Ybs86-530 screw,panhead
Loading…
↗
20
92990−05100
Ybs67-5 washer, spring
Loading…
↗
21
6A0−24421−01
Valve, check
Loading…
↗
22
6A0−14325−00
Screw, pan head
Loading…
↗
23
6A0−24412−02
Body 1
Loading…
↗
24
650−24431−A0
Gasket,fuel pump
Loading…
↗
25
97095−06040
Bolt (682)
Loading…
↗
27
6H1−24314−00
Pipe 4
Loading…
↗
29
90445−09097
Hose (l1500)
Loading…
↗
30
688−24313−00
Pipe, fuel 2
Loading…
↗
31
688−24314−00
Pipe, fuel 2
Loading…
↗
33
90445−09220
Hose (l1500)
Loading…
↗
34
688−24378−00
Pipe, joint
Loading…
↗
35
656−W2810−02
Tool kit
Loading…
↗
36
6E0−28193−00−94
AP D)12.5MM
Plug, water check
Loading…
↗
