9.9FMH (2022)
FUEL

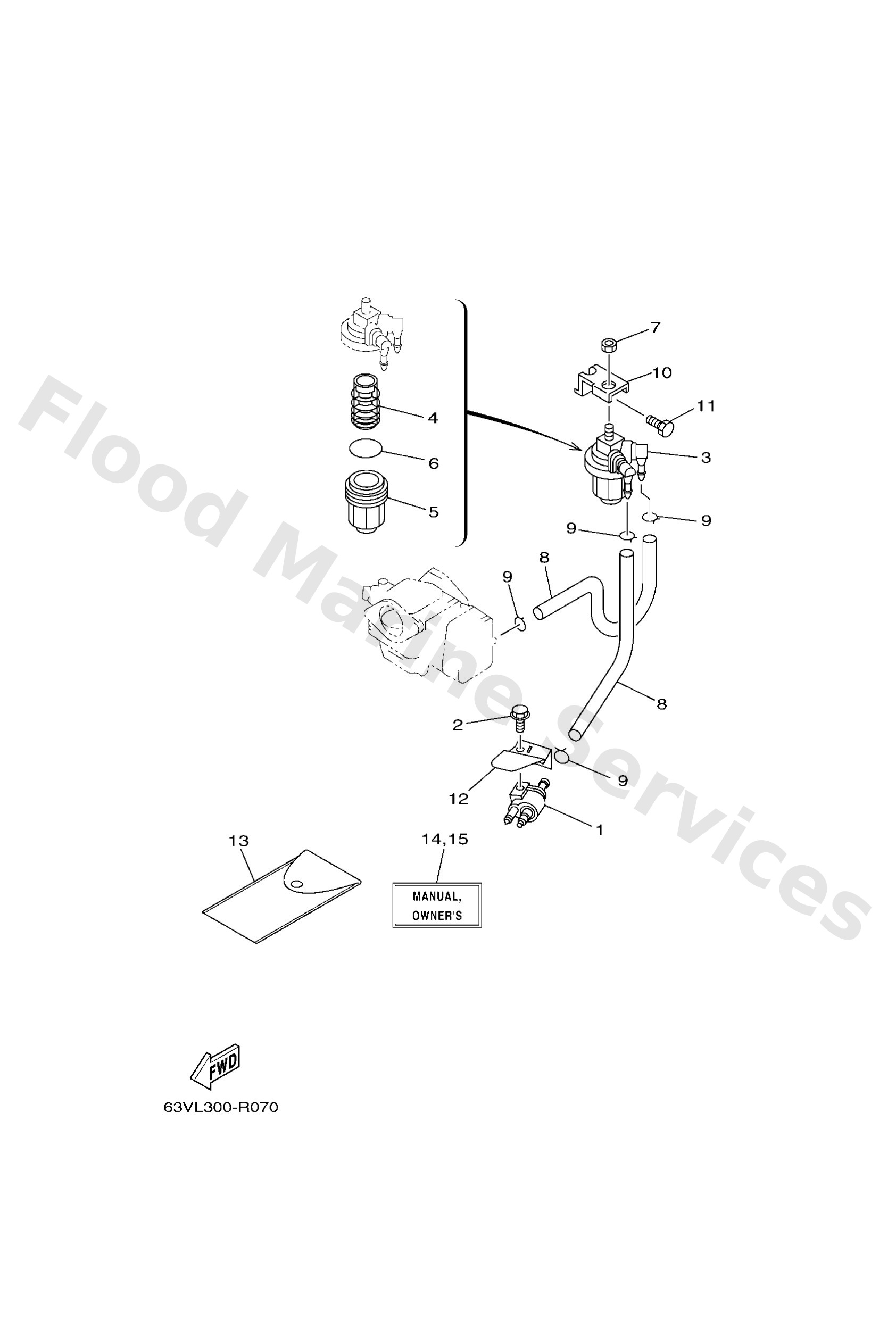

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430410
Fuel pipe joint comp. 1
Loading…
↗
2
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
3
61N2456000
Filter assembly
Loading…
↗
4
61N2456300
Element, filter
Loading…
↗
5
61N2452100
Cup, filter
Loading…
↗
6
9321032738
O-ring(1wg)
Loading…
↗
7
9538008600
Nut (661)
Loading…
↗
8
9044509M00
Hose (l180)
Loading…
↗
9
9046708004
Clip, pipe 6162435600
Loading…
↗
10
6822456601
Bracket, filter
Loading…
↗
11
9701306010
Bolt(63v)
Loading…
↗
12
63V2439601
Plate
Loading…
↗
13
656W281003
AP
Tool kit
Loading…
↗
14
63V281997ME0
UR (E)
Manual,owner's
Loading…
↗
14
63V281997MF0
UR (F)
Manual,owner's
Loading…
↗
14
63V281997MS0
UR (ES)
Manual,owner's
Loading…
↗
14
63V281997MG0
UR (D)
Manual,owner's
Loading…
↗
14
63V281997MD0
UR (NL)
Manual,owner's
Loading…
↗
14
63V281997MH0
UR (I)
Manual,owner's
Loading…
↗
15
63V281998NL0
UR (SF)
Manual,owner's
Loading…
↗
15
63V281998NM0
UR (S)
Manual,owner's
Loading…
↗
15
63V281998NN0
UR (N)
Manual,owner's
Loading…
↗
15
63V281998NP0
UR (P)
Manual,owner's
Loading…
↗
15
63V281998NR0
UR (GR)
Manual,owner's
Loading…
↗
15
63V281998NK0
UR (DK)
Manual,owner's
Loading…
↗
