9.9GMH (2017)
FUEL

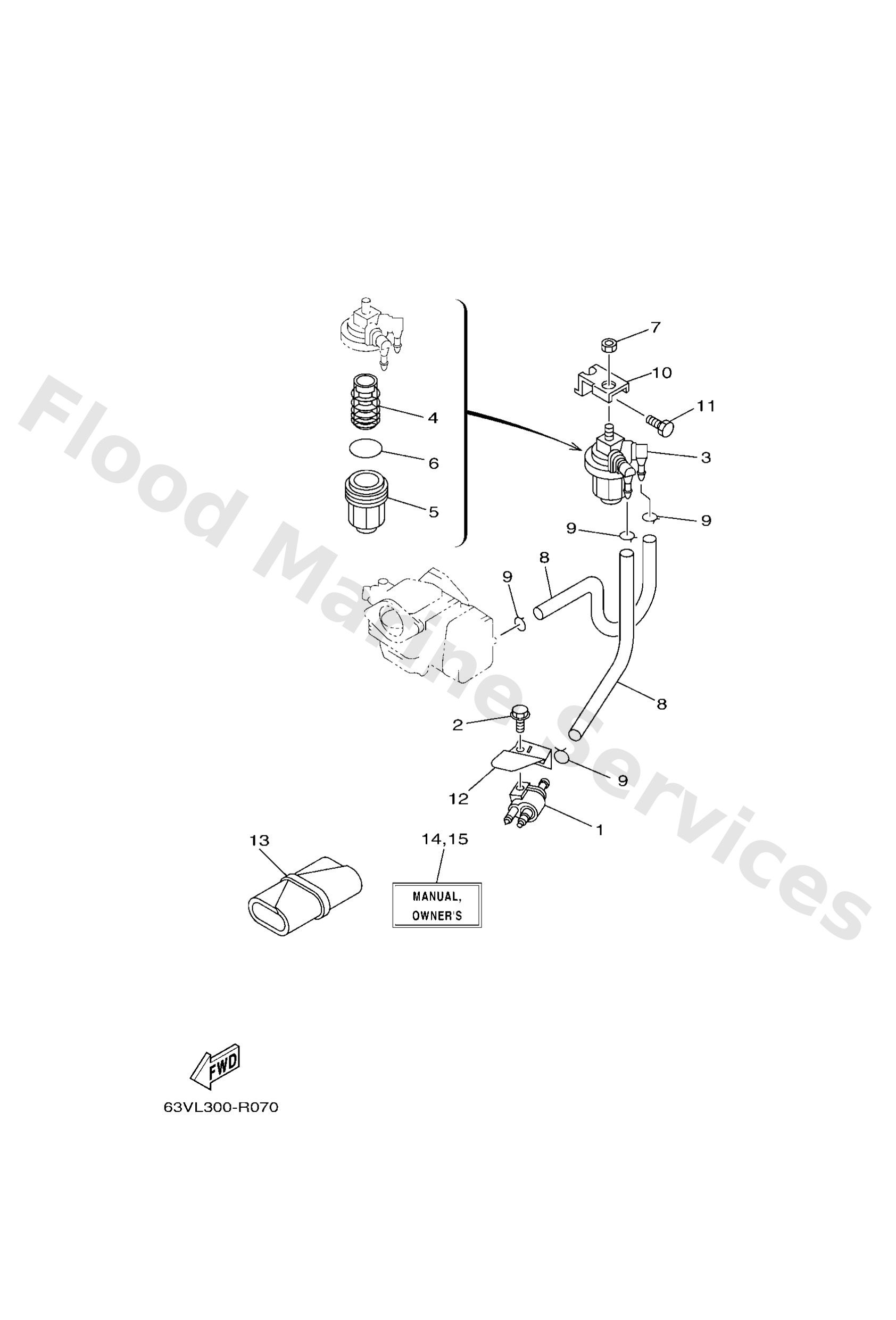

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430410
Fuel pipe joint comp. 1
Loading…
↗
2
9759506520
Bolt(7u8)
Loading…
↗
3
61N2456000
Filter assembly
Loading…
↗
4
61N2456300
Element, filter
Loading…
↗
5
61N2452100
Cup, filter
Loading…
↗
6
9321032738
O-ring(1wg)
Loading…
↗
7
9538008600
Nut (661)
Loading…
↗
8
9044509M00
Hose (l180)
Loading…
↗
9
9046708004
Clip, pipe 6162435600
Loading…
↗
10
6822456601
Bracket, filter
Loading…
↗
11
9701306010
Bolt(63v)
Loading…
↗
12
63V2439601
Plate
Loading…
↗
13
656W281002
AP
Tool kit
Loading…
↗
14
63V281997GG0
UR (D)
Manual,owner's
Loading…
↗
14
63V281997GH0
UR (I)
Manual,owner's
Loading…
↗
14
63V281997GD0
UR (NL)
Manual,owner's
Loading…
↗
14
63V281997GS0
UR (ES)
Manual,owner's
Loading…
↗
14
63V281997GF0
UR (F)
Manual,owner's
Loading…
↗
14
63V281997GE0
UR (E)
Manual,owner's
Loading…
↗
15
63V281998HL0
UR (SF)
Manual,owner's
Loading…
↗
15
63V281998HM0
UR (S)
Manual,owner's
Loading…
↗
15
63V281998HN0
UR (N)
Manual,owner's
Loading…
↗
15
63V281998HP0
UR (P)
Manual,owner's
Loading…
↗
15
63V281998HR0
UR (GR)
Manual,owner's
Loading…
↗
15
63V281998HK0
UR (DK)
Manual,owner's
Loading…
↗
