90AETO (2003)
FUEL

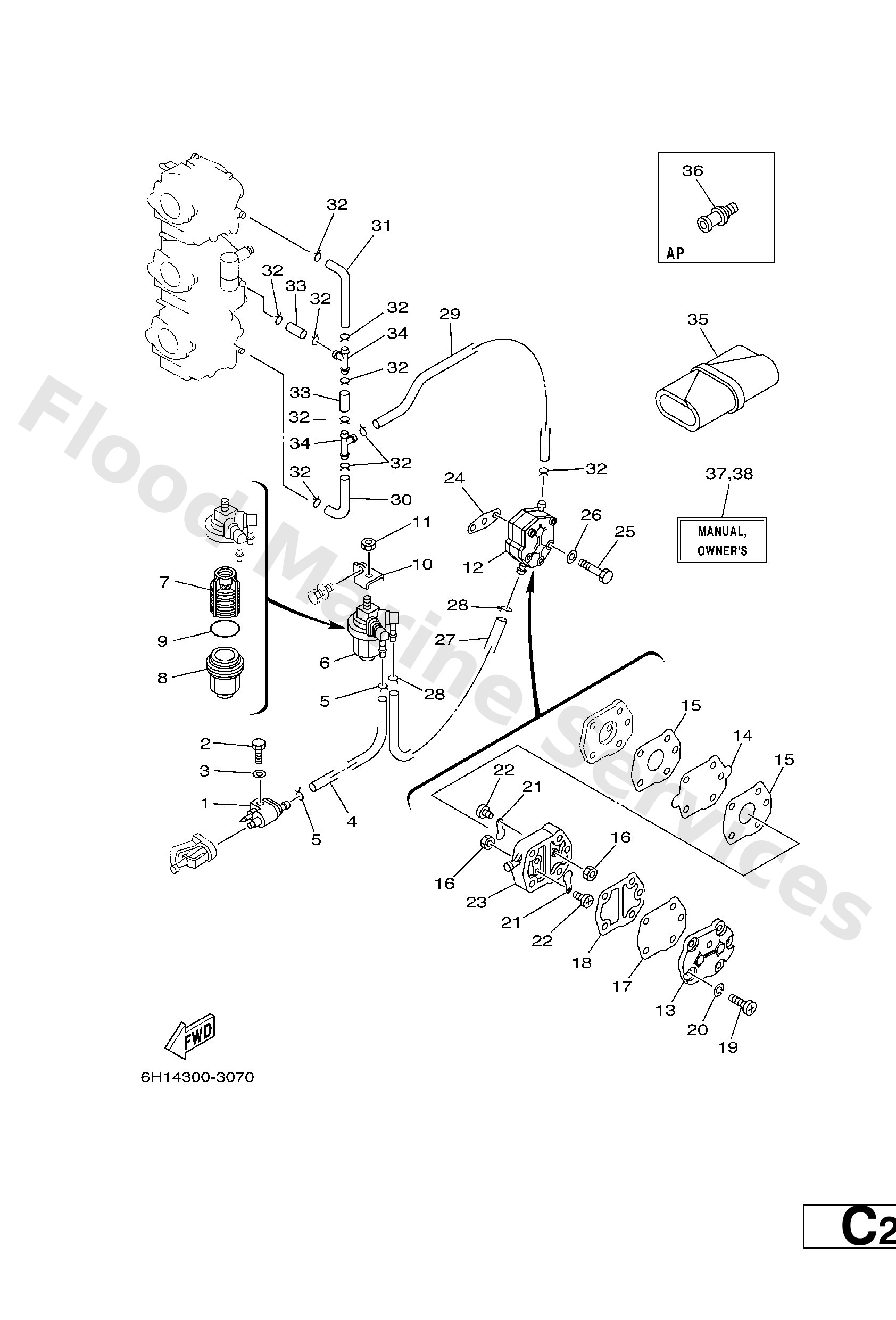

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G1--24304--02
Fuel pipe joint comp. 1
Loading…
↗
2
97095--06020
Bolt(7u8)
Loading…
↗
3
92995--06600
Washer, plain (646)
Loading…
↗
4
90445--09105
Hose (l420)
Loading…
↗
5
90467--08004
Clip, pipe 6162435600
Loading…
↗
6
61N--24560--00
Filter assembly
Loading…
↗
7
61N--24563--00
Element, filter
Loading…
↗
8
61N--24521--00
Cup, filter
Loading…
↗
9
93210--32738
O-ring(1wg)
Loading…
↗
10
6H1--24566--01
Bracket, filter
Loading…
↗
11
95380--08600
Nut (661)
Loading…
↗
12
692--24410--00
Fuel pump assembly
Loading…
↗
13
6A0--24413--00
Cover, pump
Loading…
↗
14
692--24411--00
Diaphragm
Loading…
↗
15
648--24434--01
Gasket, body
Loading…
↗
16
95380--03600
Nut (6g8)
Loading…
↗
17
663--24411--00
Diaphragm
Loading…
↗
18
648--24435--02
Gasket, body 2
Loading…
↗
19
98503--05028
Ybs86-530 screw,panhead
Loading…
↗
20
92990--05100
Ybs67-5 washer, spring
Loading…
↗
21
6A0--24421--01
Valve, check
Loading…
↗
22
6A0--14325--00
Screw, pan head
Loading…
↗
23
6A0--24412--02
Body 1
Loading…
↗
24
650--24431--A0
Gasket,fuel pump
Loading…
↗
25
97095--06040
Bolt (682)
Loading…
↗
27
6H1--24314--00
Pipe 4
Loading…
↗
29
90445--09097
Hose (l1500)
Loading…
↗
30
688--24313--00
Pipe, fuel 2
Loading…
↗
31
688--24314--00
Pipe, fuel 2
Loading…
↗
33
90445--09220
Hose (l1500)
Loading…
↗
34
688--24378--00
Pipe, joint
Loading…
↗
35
656--W2810--02
Tool kit
Loading…
↗
36
6E0--28193--00--94
AP D)12.5MM
Plug, water check
Loading…
↗
37
6H2281997PA0
UR (E,F,S)
O/m 50geto/60feto/70beto/75/90
Loading…
↗
37
6H2281997PB0
UR (D,NL,I)
O/m 50geto/60feto/70beto/75/90
Loading…
↗
38
6H2281998PA0
UR (DK,P,GR)
O/m 50geto/60feto/70beto/7 '03
Loading…
↗
38
6H2281998PB0
UR (N,S,SS)
O/m 50geto/60feto/70beto/7 '03
Loading…
↗
