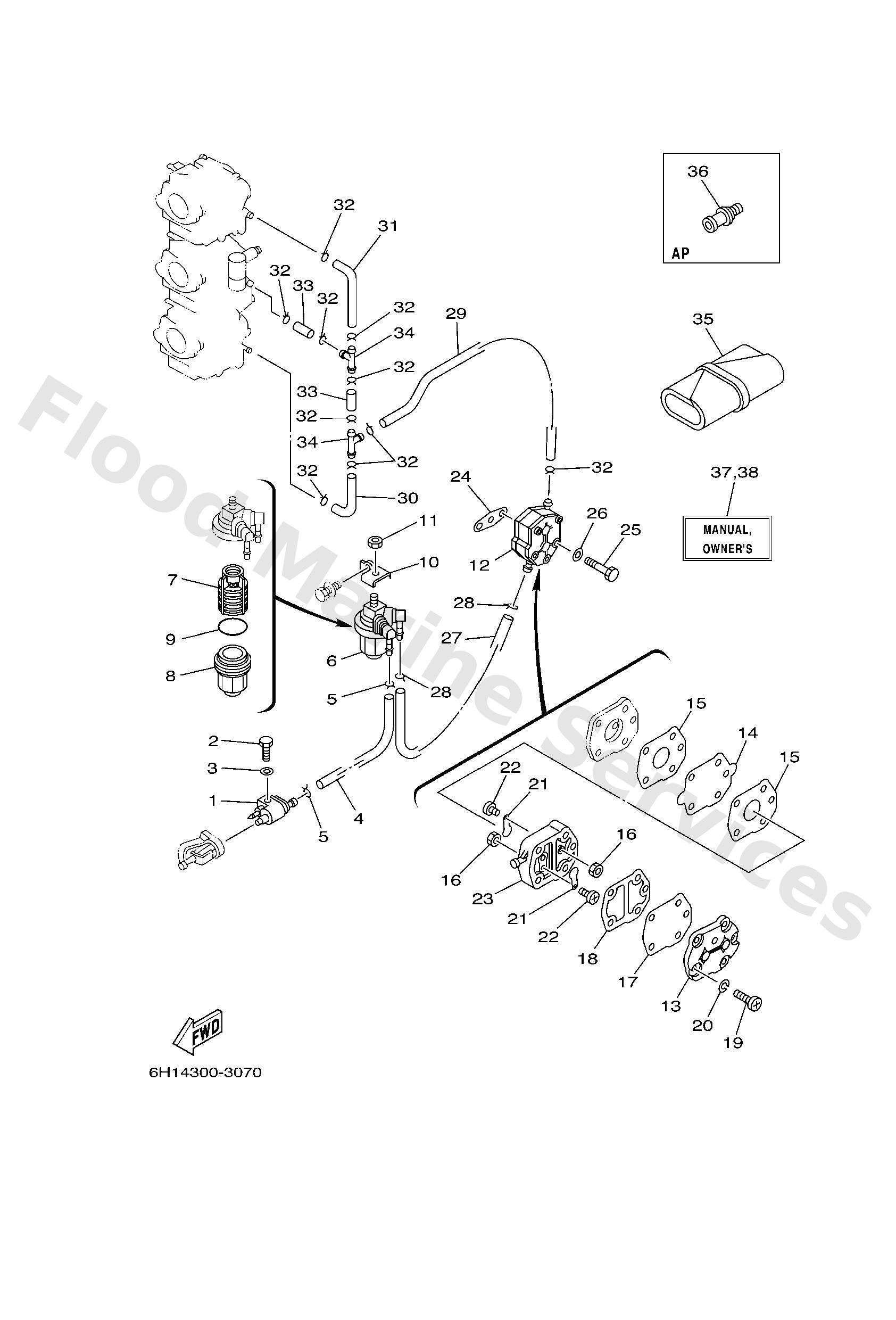

Diagram: FUEL

Diagram

Parts List

Reference
Description
Price


1
6G12430402
Fuel pipe joint comp. 1
Loading…

↗
2
9709506020
Bolt(7u8)
Loading…

↗
3
9299506600
Washer, plain (646)
Loading…

↗
4
9044509104
Hose (l1500)
Loading…

↗
5
9046708004
Clip, pipe 6162435600
Loading…

↗
6
61N2456000
Filter assembly
Loading…

↗
7
61N2456300
Element, filter
Loading…

↗
8
61N2452100
Cup, filter
Loading…

↗
9
9321032738
O-ring(1wg)
Loading…

↗
10
6H12456601
Bracket, filter
Loading…

↗
11
9538008600
Nut (661)
Loading…

↗
12
6922441000
Fuel pump assembly
Loading…

↗
13
6A02441300
Cover, pump
Loading…

↗
14
6922441100
Diaphragm
Loading…

↗
15
6482443401
Gasket, body
Loading…

↗
16
9538003600
Nut (6g8)
Loading…

↗
17
6632441100
Diaphragm
Loading…

↗
18
6482443502
Gasket, body 2
Loading…

↗
19
9850305028
Ybs86-530 screw,panhead
Loading…

↗
20
9299005100
Ybs67-5 washer, spring
Loading…

↗
21
6A02442101
Valve, check
Loading…

↗
22
6A01432500
Screw, pan head
Loading…

↗
23
6A02441202
Body 1
Loading…

↗
24
65024431A0
Gasket,fuel pump
Loading…

↗
25
9709506040
Bolt (682)
Loading…

↗
27
6H12431400
Pipe 4
Loading…

↗
29
9044509097
Hose (l1500)
Loading…

↗
30
6882431300
Pipe, fuel 2
Loading…

↗
31
6882431400
Pipe, fuel 2
Loading…

↗
33
9044509220
Hose (l1500)
Loading…

↗
34
6882437800
Pipe, joint
Loading…

↗
35
656W281002 AP
Tool kit
Loading…

↗
36
6E0281930094 AP D)12.5MM
Plug, water check
Loading…

↗
37
67P2819977E0 UR (E)
Manual,owner's
Loading…

↗
37
67P2819977H0 UR (I)
Manual,owner's
Loading…

↗
37
67P2819977D0 UR (NL)
Manual,owner's
Loading…

↗
37
67P2819977G0 UR (D)
Manual,owner's
Loading…

↗
37
67P2819977S0 UR (ES)
Manual,owner's
Loading…

↗
37
67P2819977F0 UR (F)
Manual,owner's
Loading…

↗
38
67P2819987K0 UR (DK)
Manual,owner's
Loading…

↗
38
67P2819987R0 UR (GR)
Manual,owner's
Loading…

↗
38
67P2819987P0 UR (P)
Manual,owner's
Loading…

↗
38
67P2819987N0 UR (N)
Manual,owner's
Loading…

↗
38
67P2819987M0 UR (S)
Manual,owner's
Loading…

↗
38
67P2819987L0 UR (SF)
Manual,owner's
Loading…

↗
