E15DMH (2004)
FUEL

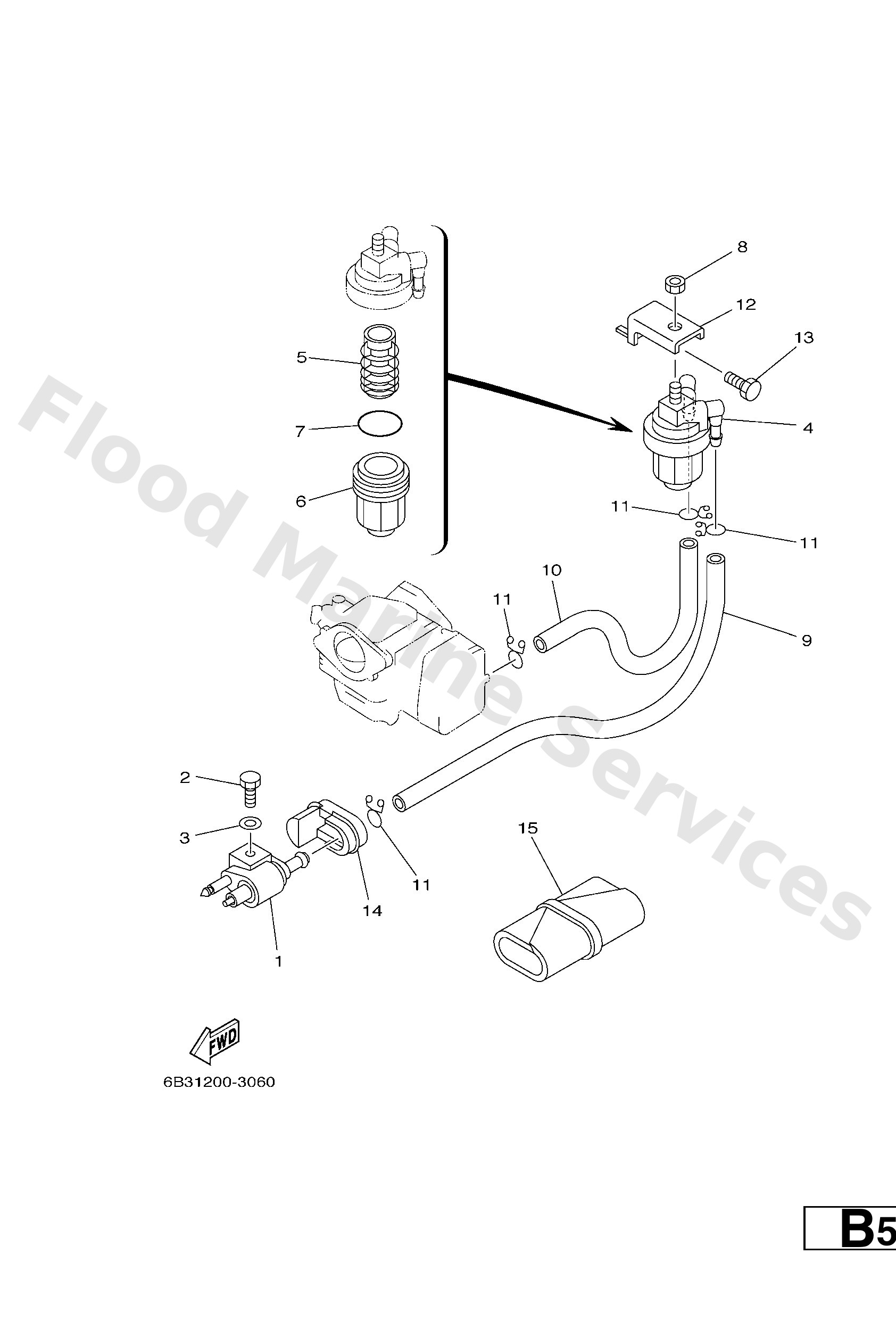

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
2
9709506020
Bolt(7u8)
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
61N2456000
Filter assembly
Loading…
↗
5
61N2456300
Element, filter
Loading…
↗
6
61N2452100
Cup, filter
Loading…
↗
7
9321032738
O-ring(1wg)
Loading…
↗
8
9538008600
Nut (661)
Loading…
↗
9
9044509104
Hose (l1500)
Loading…
↗
10
9044509M00
Hose (l180)
Loading…
↗
11
9046708004
Clip, pipe 6162435600
Loading…
↗
12
6482456602
Bracket, filter
Loading…
↗
13
9701306010
Bolt(63v)
Loading…
↗
14
6B42432900
Seal
Loading…
↗
15
63V28100A0
Tool kit
Loading…
↗
