E40XMH (2003)
FUEL

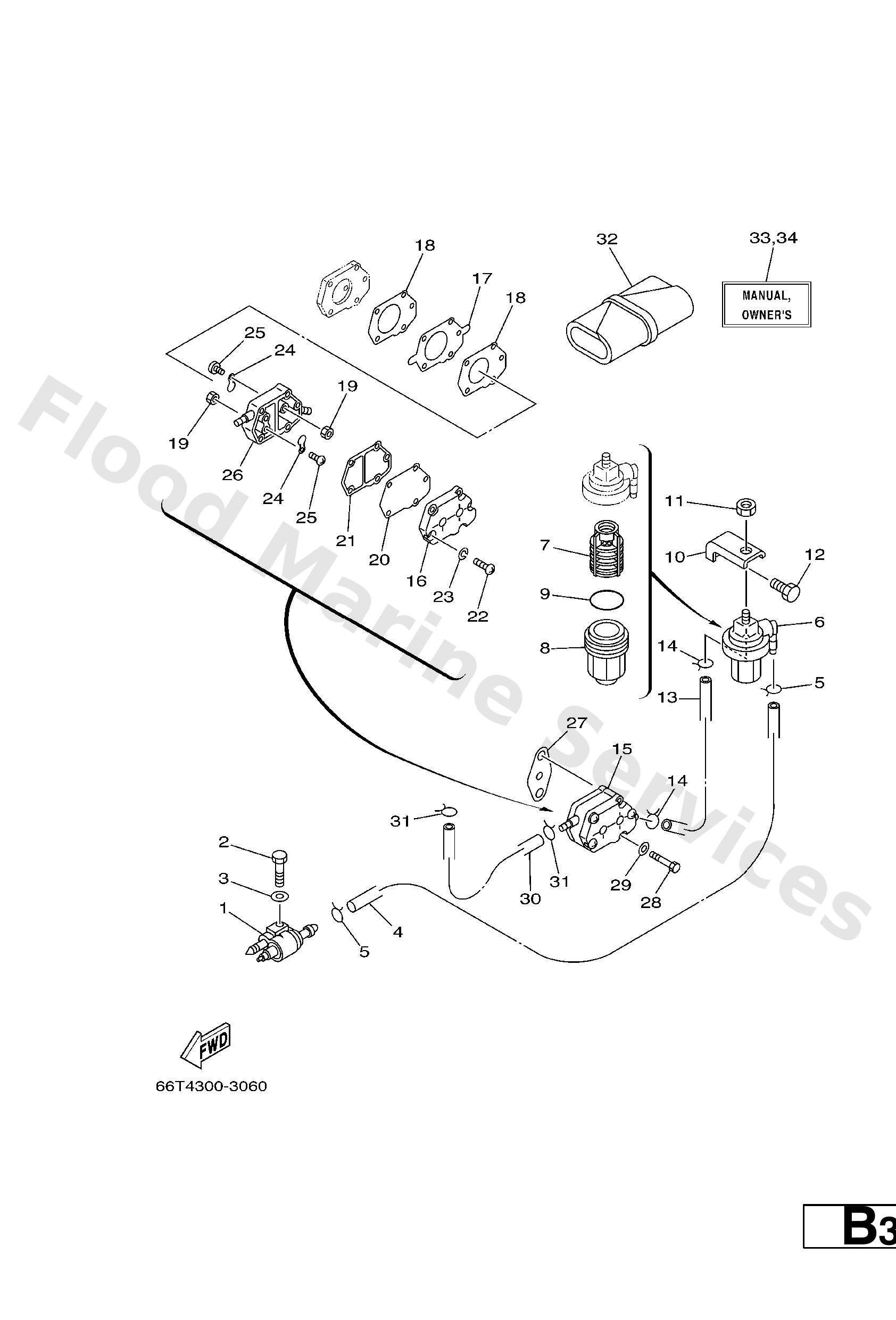

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G1−24304−02
Fuel pipe joint comp. 1
Loading…
↗
2
97095−06030
Bolt(jf7)
Loading…
↗
3
92995−06600
Washer, plain (646)
Loading…
↗
4
90445−09M08
Hose (l865)
Loading…
↗
5
90467−08004
Clip, pipe 6162435600
Loading…
↗
6
61N−24560−00
Filter assembly
Loading…
↗
7
61N−24563−00
Element, filter
Loading…
↗
8
61N−24521−00
Cup, filter
Loading…
↗
9
93210−32738
O-ring(1wg)
Loading…
↗
10
648−24566−02
Bracket, filter
Loading…
↗
11
95380−08600
Nut (661)
Loading…
↗
12
97013−06014
Bolt(gj3)
Loading…
↗
13
90445−09086
Hose (l1500)
Loading…
↗
15
692−24410−00
Fuel pump assembly
Loading…
↗
16
6A0−24413−00
Cover, pump
Loading…
↗
17
692−24411−00
Diaphragm
Loading…
↗
18
648−24434−01
Gasket, body
Loading…
↗
19
95380−03600
Nut (6g8)
Loading…
↗
20
663−24411−00
Diaphragm
Loading…
↗
21
648−24435−02
Gasket, body 2
Loading…
↗
22
98503−05028
Ybs86-530 screw,panhead
Loading…
↗
23
92990−05100
Ybs67-5 washer, spring
Loading…
↗
24
6A0−24421−01
Valve, check
Loading…
↗
25
6A0−14325−00
Screw, pan head
Loading…
↗
26
6A0−24412−02
Body 1
Loading…
↗
27
650−24431−A0
Gasket,fuel pump
Loading…
↗
28
97095−06040
Bolt (682)
Loading…
↗
32
676−W2810−01
Tool kit
Loading…
↗
33
66T−28199−72−A0
UR (E,F,S)
O/m e40xmh/40xw/xwt '03 e,f,s
Loading…
↗
33
66T−28199−72−B0
UR (D,NL,I)
O/m e40xmh/40xw/xwt '03 g,d,i
Loading…
↗
34
66T−28199−82−A0
UR (DK,P,GR)
O/m 40xwt/e/xmh(66t5/4) '03
Loading…
↗
34
66T−28199−82−B0
UR (N,S,SS)
O/m 40xwt/e/xmh(66t5/4) '03
Loading…
↗
