E60HMHD (2002)
FUEL

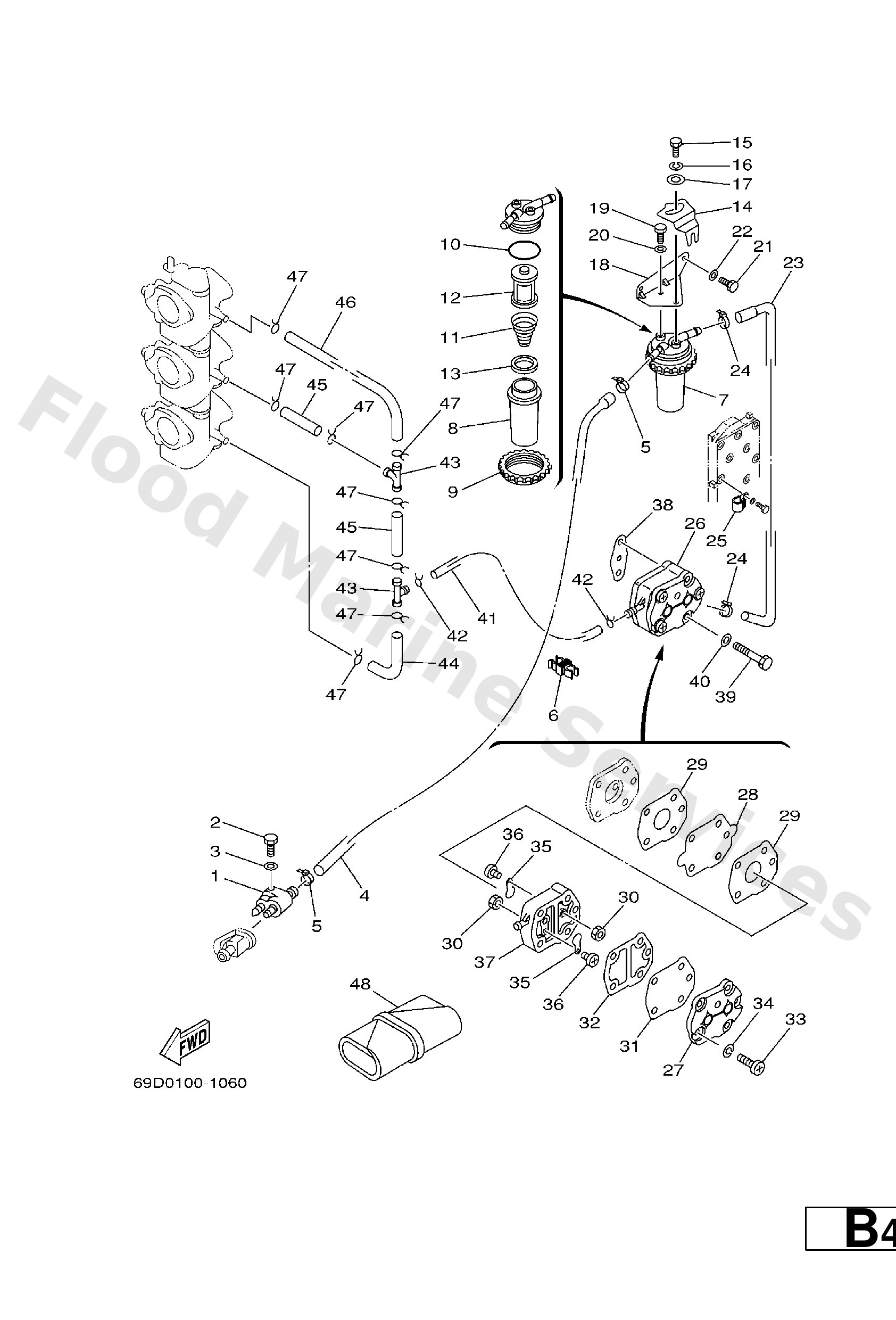

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G1−24304−02
Fuel pipe joint comp. 1
Loading…
↗
2
97095−06025
Bolt
Loading…
↗
3
92995−06600
Washer, plain (646)
Loading…
↗
4
69D−24311−00
Pipe, fuel 1
Loading…
↗
5
90465−11M10
Clamp
Loading…
↗
6
90464−10M59
Clamp
Loading…
↗
7
61A−24560−04
Filter assembly
Loading…
↗
8
61A−24521−00
Cup, filter
Loading…
↗
9
65L−24531−01
Nut
Loading…
↗
10
61A−24564−00
O-ring
Loading…
↗
11
61A−24577−01
Spring
Loading…
↗
12
61A−24563−00
Element, filter
Loading…
↗
13
61A−24469−00
Float, water level
Loading…
↗
14
65L−24558−00
Holder, filter
Loading…
↗
15
97095−06016
Bolt, hexagon deep recess
Loading…
↗
16
92995−06100
Washer(6a1)
Loading…
↗
17
90201−06068
Washer,plate (6k8)
Loading…
↗
18
69D−24566−01
Bracket, filter
Loading…
↗
19
97095−06014
Bolt(gj3)
Loading…
↗
23
69D−24312−00
Pipe 2
Loading…
↗
25
90465−08M83
Clamp
Loading…
↗
26
692−24410−00
Fuel pump assembly
Loading…
↗
27
6A0−24413−00
Cover, pump
Loading…
↗
28
692−24411−00
Diaphragm
Loading…
↗
29
648−24434−01
Gasket, body
Loading…
↗
30
95380−03600
Nut (6g8)
Loading…
↗
31
663−24411−00
Diaphragm
Loading…
↗
32
648−24435−02
Gasket, body 2
Loading…
↗
33
98503−05028
Ybs86-530 screw,panhead
Loading…
↗
34
92990−05100
Ybs67-5 washer, spring
Loading…
↗
35
6A0−24421−01
Valve, check
Loading…
↗
36
6A0−14325−00
Screw, pan head
Loading…
↗
37
6A0−24412−02
Body 1
Loading…
↗
38
650−24431−A0
Gasket,fuel pump
Loading…
↗
39
97095−06040
Bolt (682)
Loading…
↗
41
90445−09072
Hose (l1500)
Loading…
↗
42
90467−08004
Clip, pipe 6162435600
Loading…
↗
43
688−24378−00
Pipe, joint
Loading…
↗
44
6H3−24313−00
Pipe, fuel 2
Loading…
↗
45
90445−09220
Hose (l1500)
Loading…
↗
46
6H3−24314−00
Pipe 4
Loading…
↗
48
656−W2810−02
Tool kit
Loading…
↗
