E60HMHD (2004)
FUEL

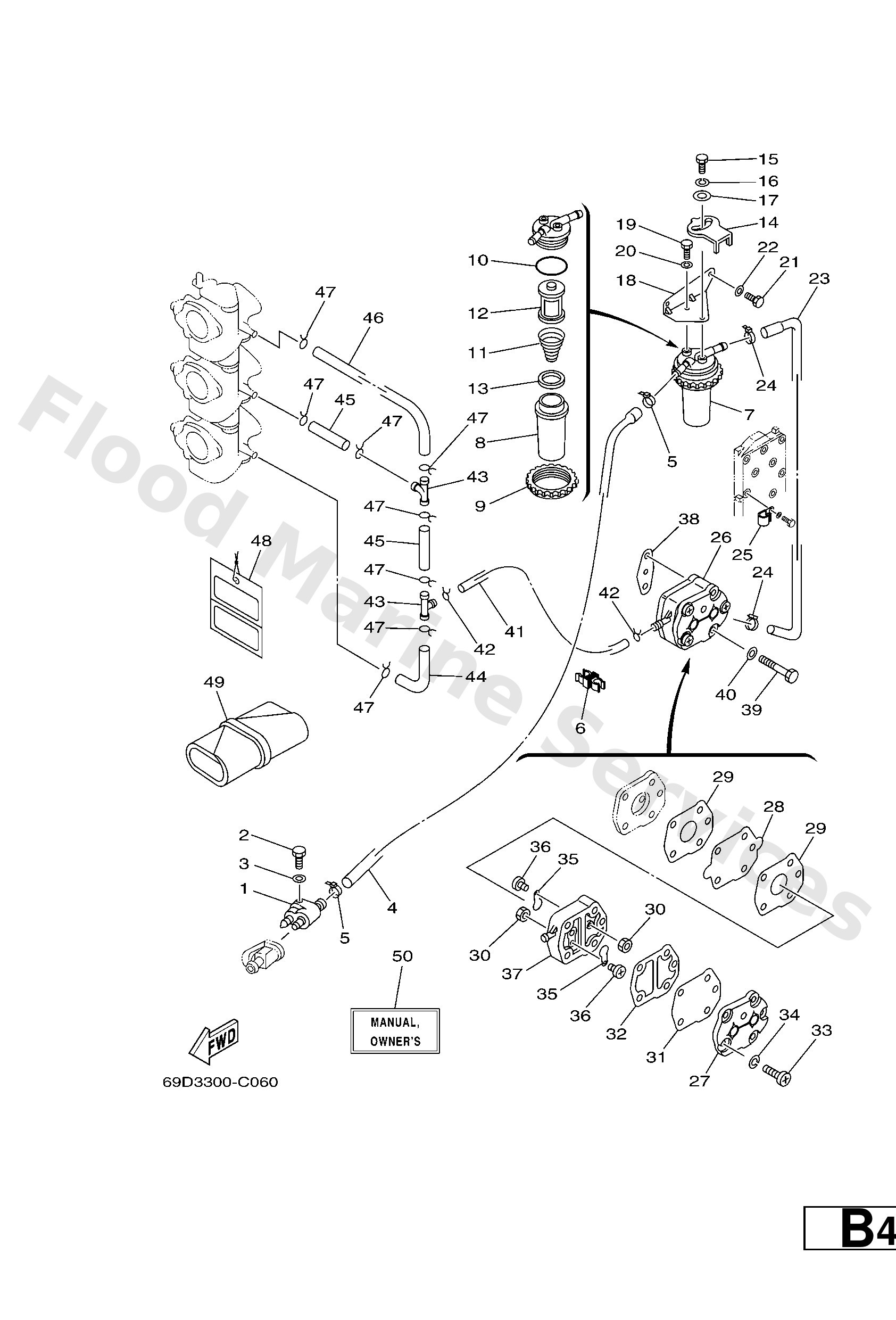

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
2
9709506025
Bolt
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
69D2431100
Pipe, fuel 1
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
9046410M59
Clamp
Loading…
↗
7
61A2456004
Filter assembly
Loading…
↗
8
61A2452100
Cup, filter
Loading…
↗
9
65L2453101
Nut
Loading…
↗
10
61A2456400
O-ring
Loading…
↗
11
61A2457701
Spring
Loading…
↗
12
61A2456300
Element, filter
Loading…
↗
13
61A2446900
Float, water level
Loading…
↗
14
60H2455800
Holder, filter
Loading…
↗
15
9709506016
Bolt, hexagon deep recess
Loading…
↗
16
9299506100
Washer(6a1)
Loading…
↗
17
9020106068
Washer,plate (6k8)
Loading…
↗
18
69D2456601
Bracket, filter
Loading…
↗
19
9709506014
Bolt(gj3)
Loading…
↗
23
69D2431200
Pipe 2
Loading…
↗
25
9046508M83
Clamp
Loading…
↗
26
6922441000
Fuel pump assembly
Loading…
↗
27
6A02441300
Cover, pump
Loading…
↗
28
6922441100
Diaphragm
Loading…
↗
29
6482443401
Gasket, body
Loading…
↗
30
9538003600
Nut (6g8)
Loading…
↗
31
6632441100
Diaphragm
Loading…
↗
32
6482443502
Gasket, body 2
Loading…
↗
33
9850305028
Ybs86-530 screw,panhead
Loading…
↗
34
9299005100
Ybs67-5 washer, spring
Loading…
↗
35
6A02442101
Valve, check
Loading…
↗
36
6A01432500
Screw, pan head
Loading…
↗
37
6A02441202
Body 1
Loading…
↗
38
65024431A0
Gasket,fuel pump
Loading…
↗
39
9709506040
Bolt (682)
Loading…
↗
41
9044509072
Hose (l1500)
Loading…
↗
42
9046708004
Clip, pipe 6162435600
Loading…
↗
43
6882437800
Pipe, joint
Loading…
↗
44
6H32431300
Pipe, fuel 2
Loading…
↗
45
9044509220
Hose (l1500)
Loading…
↗
46
6H32431400
Pipe 4
Loading…
↗
48
61H2819R31
-
Loading…
↗
49
656W281002
Tool kit
Loading…
↗
50
69D2819962A0
(F,S,P)
Om e75b/e60h/75b '06
