E60HMHD (2025)
FUEL

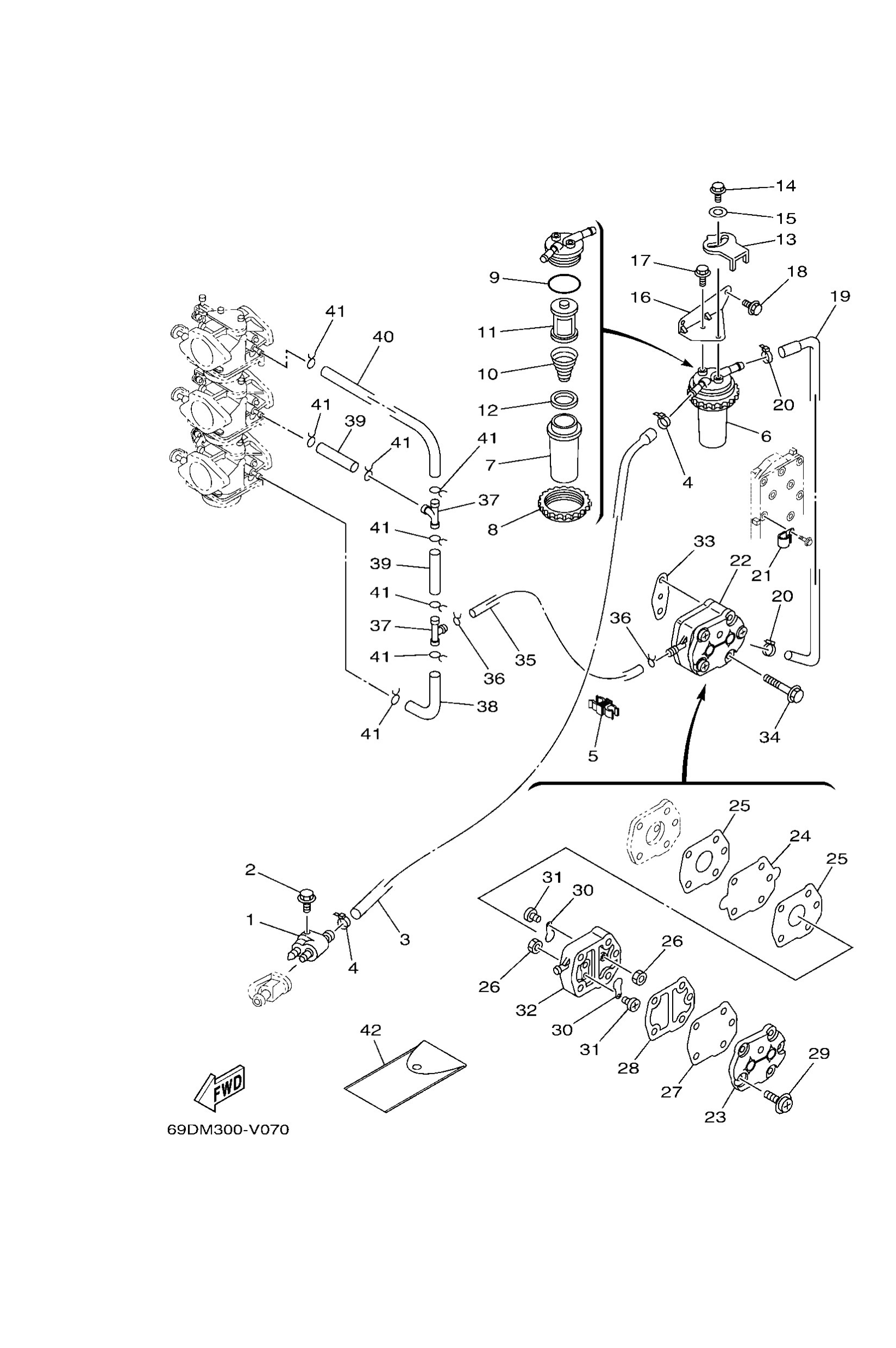

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430411
Fuel pipe joint comp. 1
Loading…
↗
2
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
3
69D2431100
Pipe, fuel 1
Loading…
↗
4
9046511M10
Clamp
Loading…
↗
5
9046410M59
Clamp
Loading…
↗
6
61A2456005
Filter assembly
Loading…
↗
7
61A2452100
Cup, filter
Loading…
↗
8
65L2453101
Nut
Loading…
↗
9
61A2456401
O-ring
Loading…
↗
10
61A2457701
Spring
Loading…
↗
11
61A2456302
Element, filter
Loading…
↗
12
61A2446900
Float, water level
Loading…
↗
13
60H2455800
Holder, filter
Loading…
↗
14
97E9506416
Bolt, hexagon w/w deep recess
Loading…
↗
15
9020106068
Washer,plate (6k8)
Loading…
↗
16
69D2456601
Bracket, filter
Loading…
↗
17
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
18
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
19
69D2431200
Pipe 2
Loading…
↗
21
9046508M83
Clamp
Loading…
↗
22
6922441001
Fuel pump assembly
Loading…
↗
23
6A02441300
Cover, pump
Loading…
↗
24
6922441100
Diaphragm
Loading…
↗
25
6482443401
Gasket, body
Loading…
↗
26
9538003600
Nut (6g8)
Loading…
↗
27
6632441100
Diaphragm
Loading…
↗
28
6482443503
Gasket, body 2
Loading…
↗
29
9798005128
Screw, with washer
Loading…
↗
30
6A02442101
Valve, check
Loading…
↗
31
6A01432500
Screw, pan head
Loading…
↗
32
6A02441202
Body 1
Loading…
↗
33
65024431A0
Gasket,fuel pump
Loading…
↗
34
97E9506540
Bolt, hexagon w/w deep recess
Loading…
↗
35
9044509072
Hose (l1500)
Loading…
↗
36
9046708004
Clip, pipe 6162435600
Loading…
↗
37
6882437800
Pipe, joint
Loading…
↗
38
6H32431300
Pipe, fuel 2
Loading…
↗
39
9044509220
Hose (l1500)
Loading…
↗
40
6H32431400
Pipe 4
Loading…
↗
42
656W281003
AP
Tool kit
