F100BET (2003)
FUEL

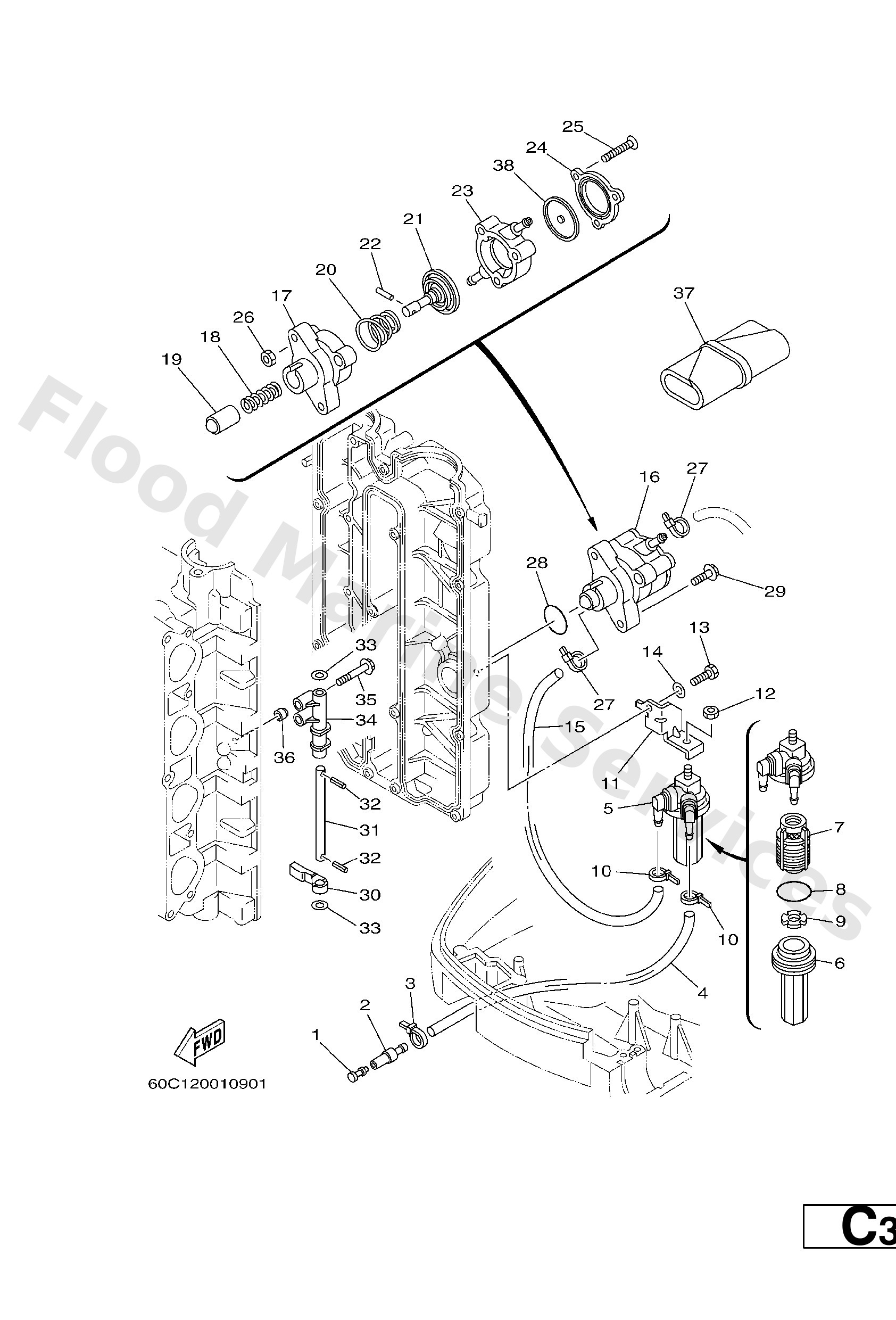

Diagram: FUEL
Parts List
Reference
Description
Price
1
689−85547−00
Damper
Loading…
↗
2
6R3−24377−00
Pipe, joint 3
Loading…
↗
3
90465−11M10
Clamp
Loading…
↗
4
90445−13M27
Hose (l950)
Loading…
↗
5
60C−24560−00
Filter assembly
Loading…
↗
6
68V−24521−01
Cup, filter
Loading…
↗
7
61N−24563−00
Element, filter
Loading…
↗
8
93210−32738
O-ring(1wg)
Loading…
↗
9
68V−24469−01
Float, water level
Loading…
↗
11
68V−24566−00
Bracket, Filter
Loading…
↗
12
95380−08600
Nut (661)
Loading…
↗
13
97095−06016
Bolt, hexagon deep recess
Loading…
↗
14
92995−06600
Washer, plain (646)
Loading…
↗
15
90445−13M11
Pipe, fuel 1
Loading…
↗
16
68V−24410−00
Fuel pump assembly
Loading…
↗
17
68V−24412−00
Body 1
Loading…
↗
18
68V−24454−00
Spring
Loading…
↗
19
68V−13131−00
Plunger
Loading…
↗
20
68V−24423−00
Spring, diaphragm
Loading…
↗
21
68V−24411−00
Diaphragm
Loading…
↗
22
68V−24374−00
Pin
Loading…
↗
23
68V−24413−00
Body 2
Loading…
↗
24
68V−24414−00
Body 3
Loading…
↗
25
68V−24444−00
Screw
Loading…
↗
26
68V−24149−00
Nut
Loading…
↗
28
93210−30682
O-ring (371)
Loading…
↗
29
90119−06M83
Bolt, with washer
Loading…
↗
30
67F−24575−00
Lever, fuel change
Loading…
↗
31
68V−24495−00
Shaft
Loading…
↗
32
91609−25014
10 −
Loading…
↗
33
90201−08M12
Washer plate (682)
Loading…
↗
34
67F−24491−00
Bracket, fuel pump
Loading…
↗
35
90119−07235
Bolt, with washer
Loading…
↗
36
91809−08006
Pin, dowel
Loading…
↗
37
67F−28100−00
Tool kit
Loading…
↗
38
68V2447110
Diaphragm
Loading…
↗
38
4EB2314400
Seal, dust
