F100BET (2012)
FUEL

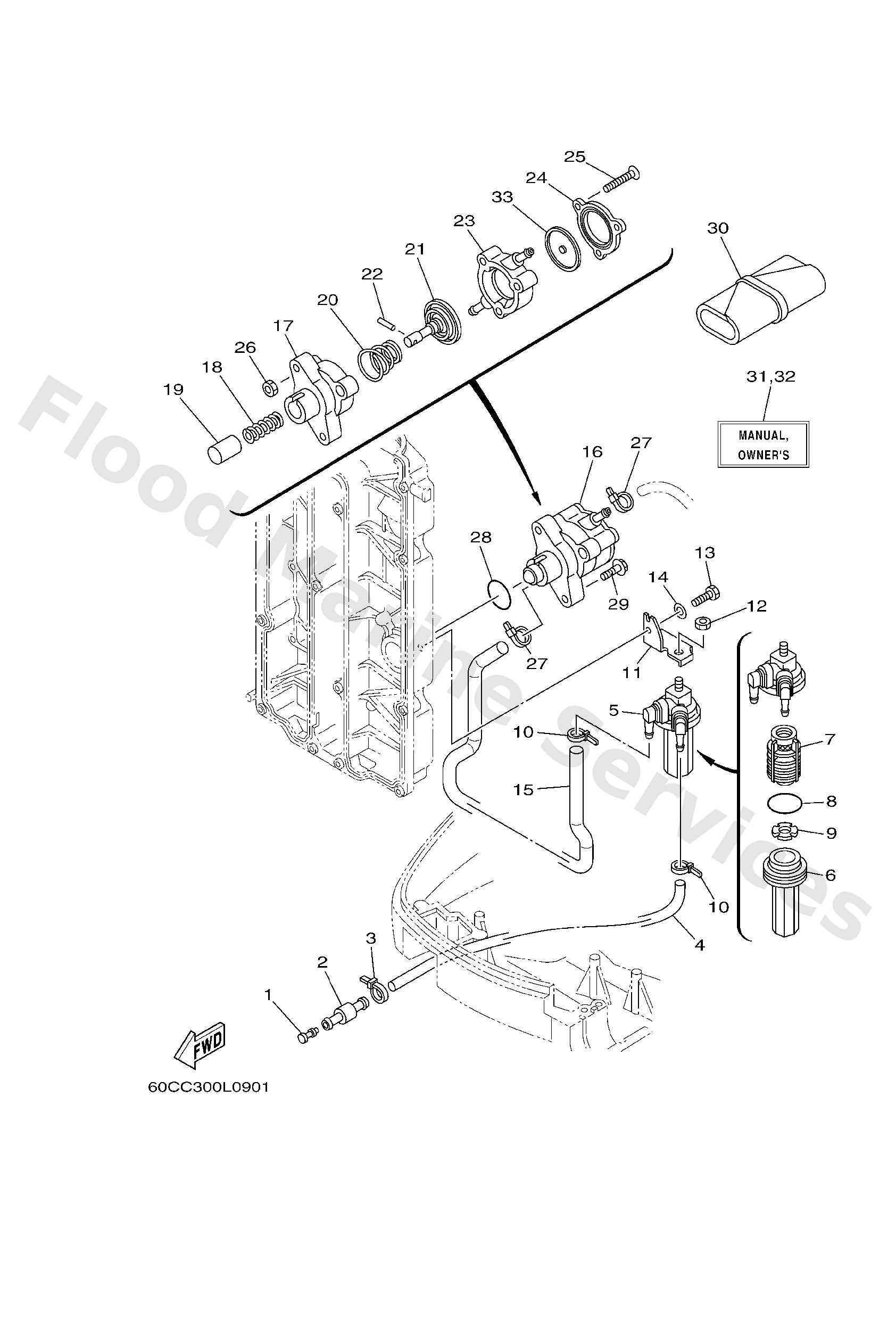

Diagram: FUEL
Parts List
Reference
Description
Price
1
6898554700
Damper
Loading…
↗
2
6R32437700
Pipe, joint 3
Loading…
↗
3
9046511M10
Clamp
Loading…
↗
4
9044513M27
Hose (l950)
Loading…
↗
5
60C2456001
Filter assembly
Loading…
↗
6
68V2452101
Cup, filter
Loading…
↗
7
61N2456310
Element, filter
Loading…
↗
8
9321032738
O-ring(1wg)
Loading…
↗
9
68V2446901
Float, water level
Loading…
↗
11
60C2456600
Bracket, filter
Loading…
↗
12
9538008600
Nut (661)
Loading…
↗
13
9709506016
Bolt, hexagon deep recess
Loading…
↗
14
9299506600
Washer, plain (646)
Loading…
↗
15
6D82431100
Pipe, fuel 1
Loading…
↗
16
6D82441010
Fuel pump assembly
Loading…
↗
17
68V2441200
Body 1
Loading…
↗
18
68V2445400
Spring
Loading…
↗
19
63P1313100
Plunger
Loading…
↗
20
68V2442300
Spring, diaphragm
Loading…
↗
21
68V2441100
Diaphragm
Loading…
↗
22
68V2437400
Pin
Loading…
↗
23
68V2441310
Body 2
Loading…
↗
24
6D82441400
Body 3
Loading…
↗
25
68V2444400
Screw
Loading…
↗
26
68V2414900
Nut
Loading…
↗
28
9321030682
O-ring (371)
Loading…
↗
29
9011906M83
Bolt, with washer
Loading…
↗
30
67F2810001
AP
Tool kit
Loading…
↗
31
67F281997FD0
UR (NL)
Manual,Owner's
Loading…
↗
31
67F281997FG0
UR (D)
Manual,Owner's
Loading…
↗
31
67F281997FS0
UR (ES)
Manual,Owner's
Loading…
↗
31
67F281997FF0
UR (F)
Manual,Owner's
Loading…
↗
31
67F281997FE0
UR (E)
Manual,Owner's
Loading…
↗
31
67F281997FH0
UR (I)
Manual,Owner's
Loading…
↗
32
67F281998HL0
UR (SF)
Manual,Owner's
Loading…
↗
32
67F281998HK0
UR (DK)
Manual,Owner's
Loading…
↗
32
67F281998HR0
UR (GR)
Manual,Owner's
Loading…
↗
32
67F281998HP0
UR (P)
Manual,Owner's
Loading…
↗
32
67F281998HN0
UR (N)
Manual,Owner's
Loading…
↗
32
67F281998HM0
UR (S)
Manual,Owner's
Loading…
↗
33
68V2447110
Diaphragm
Loading…
↗
38
4EB2314400
Seal, dust
Loading…
↗
