F2.5AMH (2011)
FUEL

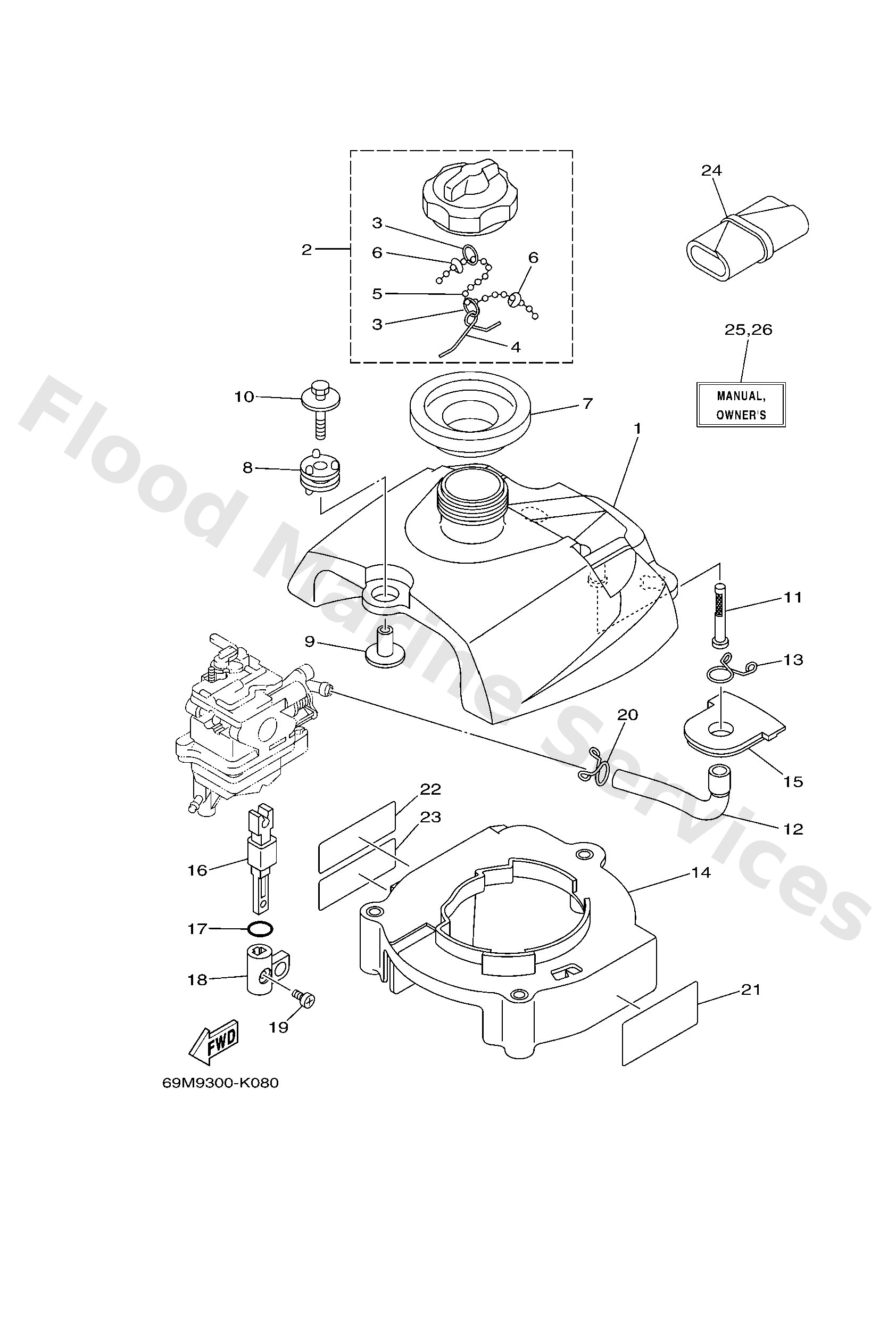

Diagram: FUEL
Parts List
Reference
Description
Price
1
69MF411101
Tank, Fuel
Loading…
↗
2
68D2461000
Cap assembly
Loading…
↗
3
90468100A0
Clip
Loading…
↗
4
6242463400
Hook, chain ball
Loading…
↗
5
69M2463300
Chain, ball
Loading…
↗
6
67D2175700
Washer, special 1
Loading…
↗
7
69M2464101
Gasket, cap 1
Loading…
↗
8
69MF437500
Grommet
Loading…
↗
9
9038706176
Collar
Loading…
↗
10
9011906098
Bolt, with washer
Loading…
↗
11
6L52425100
Strainer 1
Loading…
↗
12
69MF431100
Pipe, Fuel 1
Loading…
↗
13
9046713M13
Clip(6m6)
Loading…
↗
14
69MF419100
Bracket, fuel tank
Loading…
↗
15
69MF418100
Damper, locating 1
Loading…
↗
16
69M2455400
Shaft, cock
Loading…
↗
17
9321013M43
O-ring (26h)
Loading…
↗
18
69M2457500
Lever, fuel change
Loading…
↗
19
9015905M12
Screw, with washer(6t4)
Loading…
↗
20
9046711M08
Clip(72x)
Loading…
↗
21
69ME343760
Mark, caution
Loading…
↗
22
6AH8199440
Label, safety
Loading…
↗
23
6AH8199450
Label, safety
Loading…
↗
24
69MF810000
AP
Tool kit
Loading…
↗
25
69MF819978E0
UR (E)
Manual,owner's
Loading…
↗
25
69MF819978F0
UR (F)
Manual,owner's
Loading…
↗
25
69MF819978S0
UR (ES)
Manual,owner's
Loading…
↗
25
69MF819978G0
UR (D)
Manual,owner's
Loading…
↗
25
69MF819978H0
UR (I)
Manual,owner's
Loading…
↗
25
69MF819978D0
UR (NL)
Manual,owner's
Loading…
↗
26
69MF819988K0
UR (DK)
Manual,owner's
Loading…
↗
26
69MF819988R0
UR (GR)
Manual,owner's
Loading…
↗
26
69MF819988P0
UR (P)
O/m
Loading…
↗
26
69MF819988N0
UR (N)
Manual,owner's
Loading…
↗
26
69MF819988M0
UR (S)
Manual,owner's
Loading…
↗
26
69MF819988L0
UR (SF)
Manual,owner's
Loading…
↗
