F2.5BMH (2017)
FUEL

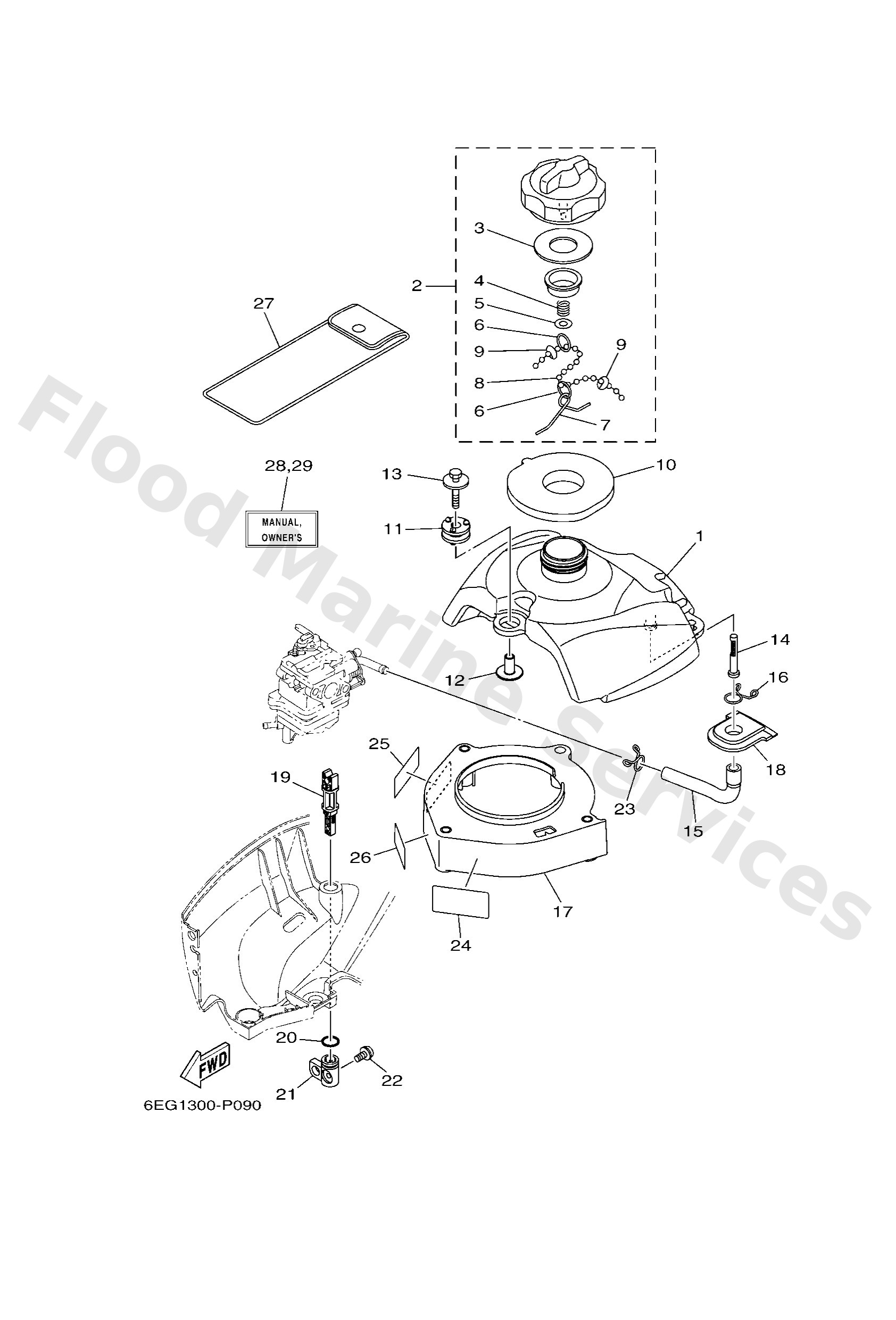

Diagram: FUEL
Parts List
Reference
Description
Price
1
6EGF411100
Tank, fuel
Loading…
↗
2
68D2461010
Cap assembly
Loading…
↗
3
68D2461200
Packing, cap
Loading…
↗
4
90501100A5
Spring, compression
Loading…
↗
5
9299004200
Ybs66-4 washer, plain
Loading…
↗
6
90468100A0
Clip
Loading…
↗
7
6242463400
Hook, chain ball
Loading…
↗
8
69M2463301
Chain, ball
Loading…
↗
9
67D2175700
Washer, special 1
Loading…
↗
10
6EG2464100
Gasket, cap 1
Loading…
↗
11
6EGF437500
Grommet
Loading…
↗
12
9038706176
Collar
Loading…
↗
13
9011906098
Bolt, with washer
Loading…
↗
14
6L52425100
Strainer 1
Loading…
↗
15
6EGF431100
Pipe, fuel 1
Loading…
↗
16
9046713M13
Clip(6m6)
Loading…
↗
17
6EGF419100
Bracket, fuel tank
Loading…
↗
18
6EGF418100
Damper, locating 1
Loading…
↗
19
6EGF455400
Shaft, cock
Loading…
↗
20
93210128F6
O-ring
Loading…
↗
21
6EGF457500
Lever, fuel change
Loading…
↗
22
9015905M12
Screw, with washer(6t4)
Loading…
↗
23
9046711M08
Clip(72x)
Loading…
↗
24
6EGE343760
Mark, caution
Loading…
↗
25
6EEH199440
Label, safety
Loading…
↗
26
6EEH199450
Label, safety
Loading…
↗
27
6EEF810000
AP
Tool kit
Loading…
↗
28
6EGF819971S0
UR (ES)
O/m f2.5bmh'17
Loading…
↗
28
6EGF819971H0
UR (I)
O/m f2.5bmh'17
Loading…
↗
28
6EGF819971D0
UR (NL)
O/m f2.5bmh'17
Loading…
↗
28
6EGF819971G0
UR (D)
O/m f2.5bmh'17
Loading…
↗
28
6EGF819971F0
UR (F)
O/m f2.5bmh'17
Loading…
↗
28
6EGF819971E0
UR (E)
O/m f2.5bmh'17
Loading…
↗
29
6EGF819981K0
UR (DK)
O/m f2.5bmh'17
Loading…
↗
29
6EGF819981R0
UR (GR)
O/m f2.5bmh'17
Loading…
↗
29
6EGF819981P0
UR (P)
O/m f2.5bmh'17
Loading…
↗
29
6EGF819981N0
UR (N)
O/m f2.5bmh'17
Loading…
↗
29
6EGF819981M0
UR (S)
O/m f2.5bmh'17
Loading…
↗
29
6EGF819981L0
UR (SF)
O/m f2.5bmh'17
Loading…
↗
