F20AE (2002)
FUEL

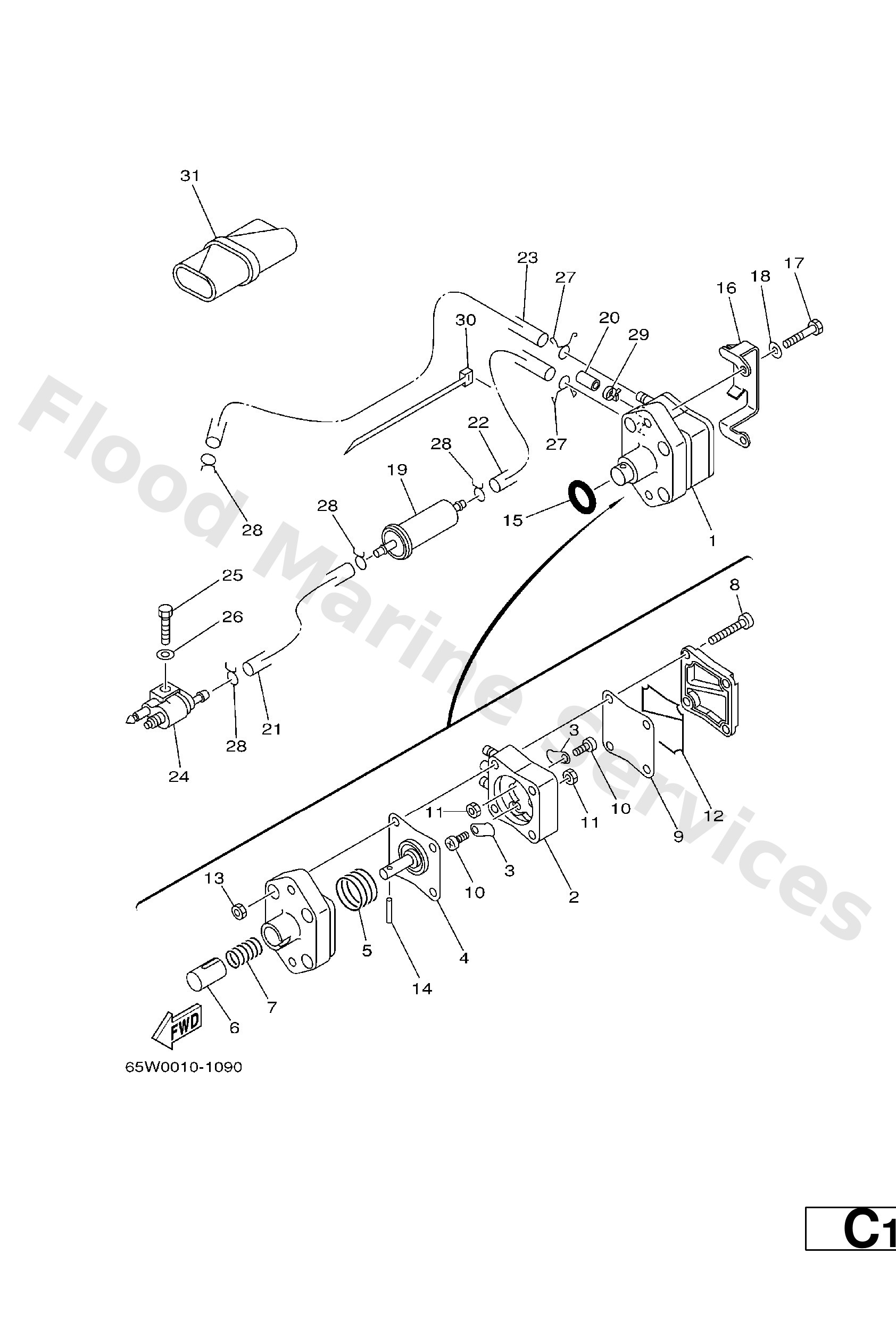

Diagram: FUEL
Parts List
Reference
Description
Price
1
62Y2441002
Fuel pump assembly
Loading…
↗
2
62Y2441300
Body 4
Loading…
↗
3
62Y2442101
Valve, check
Loading…
↗
4
62Y2441102
Diaphragm
Loading…
↗
5
62Y2442300
Spring, diaphragm
Loading…
↗
6
62Y1313101
Plunger
Loading…
↗
7
62Y2445400
Spring
Loading…
↗
8
62Y2444400
Screw
Loading…
↗
9
62Y2447100
Diaphragm
Loading…
↗
10
6A01432500
Screw, pan head
Loading…
↗
11
9538003600
Nut (6g8)
Loading…
↗
12
62Y2445200
Packing
Loading…
↗
13
9538005600
Nut, hexagon (663)
Loading…
↗
14
62Y2437401
Pin
Loading…
↗
15
9321024M79
O-ring
Loading…
↗
16
65W2447400
Cover
Loading…
↗
17
9709506030
Bolt(jf7)
Loading…
↗
18
9299506600
Washer, plain (646)
Loading…
↗
19
65W2425100
Strainer 1
Loading…
↗
20
65W2448100
Plug
Loading…
↗
21
9044510M33
Hose (l1040)
Loading…
↗
22
9044510M03
Hose (l400)
Loading…
↗
23
9044510M43
Hose (l400)
Loading…
↗
24
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
25
9709506025
Bolt
Loading…
↗
27
9046710M04
Clip, pipe 1 (6e9)
Loading…
↗
28
9046709M03
Clip(6k8)
Loading…
↗
29
9046511M10
Clamp
Loading…
↗
30
9046513M18
Clamp
Loading…
↗
31
62Y2810000
Tool kit
Loading…
↗
