F20AEH (1998)
FUEL

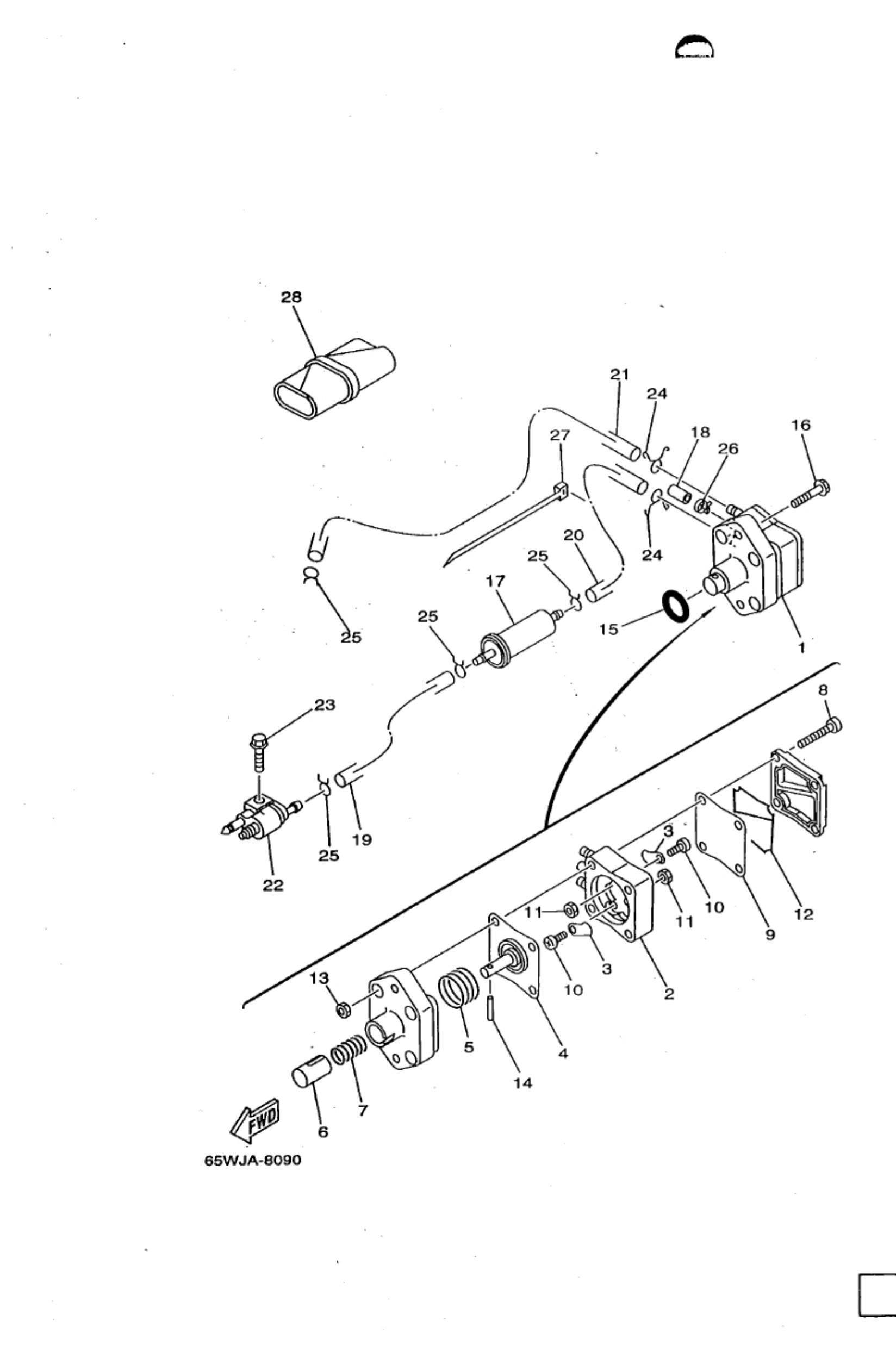

Diagram: FUEL
Parts List
Reference
Description
Price
1
62Y2441002
IEE
Fuel pump assembly
Loading…
↗
3
62Y2442101
2| 2| 2
Valve, check
Loading…
↗
4
62Y2441102
1] 1
Diaphragm
Loading…
↗
5
62Y2442300
1f 1
Spring, diaphragm
Loading…
↗
6
62Y1313101
Plunger
Loading…
↗
7
62Y2445400
1) 1] 1
Spring
Loading…
↗
8
62Y2444400
al af 4
Screw
Loading…
↗
9
62Y2447100
1f 1] 1
Diaphragm
Loading…
↗
10
6A01432500
2| 2| 2
Screw, pan head
Loading…
↗
11
9538003600
Nut (6g8)
Loading…
↗
12
62Y2445200
Packing
Loading…
↗
13
9538005600
al a] a
Nut, hexagon (663)
Loading…
↗
14
62Y2437401
1)
Pin
Loading…
↗
15
9321024M79
1] 1
O-ring
Loading…
↗
16
9759506530
2|"3| 72
Bolt, hexagon w/w deep recess
Loading…
↗
17
65W2425100
RIE
Strainer 1
Loading…
↗
18
65W2448100
[IRIE
Plug
Loading…
↗
19
9044510M33
1] 1] 1
Hose (l1040)
Loading…
↗
20
9044510M03
Hose (l400)
Loading…
↗
22
6G12430402
11] 1
Fuel pipe joint comp. 1
Loading…
↗
23
9759506525
11]
Bolt, hexagon w/w deep recess
Loading…
↗
24
9046710M04
2| 2| 2
Clip, pipe 1 (6e9)
Loading…
↗
24
B85WJA8090
25 90467-09M03
Loading…
↗
27
9046513M18
Clamp
Loading…
↗
28
62Y2810000
RIE
Tool kit
Loading…
↗
