F20DET (2013)
FUEL

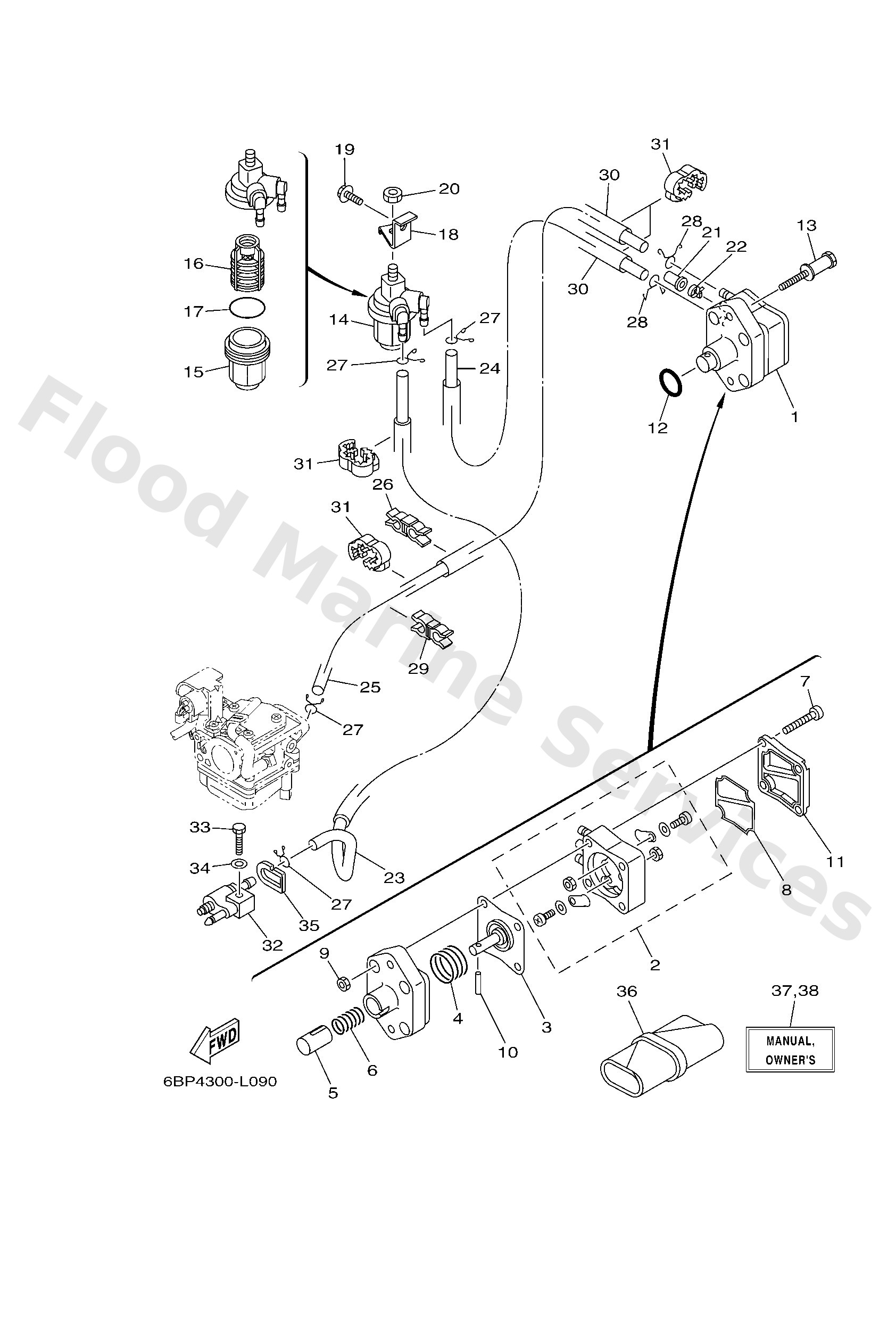

Diagram: FUEL
Parts List
Reference
Description
Price
1
62Y2441004
Fuel pump assembly
Loading…
↗
2
62Y2441501
Body 4
Loading…
↗
3
62Y2441102
Diaphragm
Loading…
↗
4
62Y2442300
Spring, diaphragm
Loading…
↗
5
62Y1313101
Plunger
Loading…
↗
6
62Y2445400
Spring
Loading…
↗
7
62Y2444401
Screw
Loading…
↗
8
6C52447100
Diaphragm
Loading…
↗
9
9538005600
Nut, hexagon (663)
Loading…
↗
10
62Y2437401
Pin
Loading…
↗
11
6C52441400
Body 3
Loading…
↗
12
9321024M79
O-ring
Loading…
↗
13
9010906266
Bolt
Loading…
↗
14
61N2456010
Filter assembly
Loading…
↗
15
61N2452100
Cup, filter
Loading…
↗
16
61N2456310
Element, filter
Loading…
↗
17
9321032738
O-ring(1wg)
Loading…
↗
18
6D52456600
Bracket, filter
Loading…
↗
19
9589508016
Bolt, flange deep recess
Loading…
↗
20
9538008600
Nut (661)
Loading…
↗
21
6BL2448100
Plug
Loading…
↗
22
9046511M10
Clamp
Loading…
↗
23
6BL2431100
Pipe, fuel 1
Loading…
↗
24
9044510M20
Hose (l400)
Loading…
↗
25
9044510MG7
Hose (l350)
Loading…
↗
26
9046410M59
Clamp
Loading…
↗
27
9046709M17
Clip(6k8)
Loading…
↗
28
9046710M04
Clip, pipe 1 (6e9)
Loading…
↗
29
9046411009
Clamp
Loading…
↗
30
9044615003
Hose
Loading…
↗
31
9046413227
Clamp
Loading…
↗
32
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
33
9709506025
Bolt
Loading…
↗
34
9299506600
Washer, plain (646)
Loading…
↗
35
61N2432900
Seal
Loading…
↗
36
62Y2810000
AP
Tool kit
Loading…
↗
37
6BP2819975E0
UR (E)
Manual,owner's
Loading…
↗
37
6BP2819975H0
UR (I)
Manual,owner's
Loading…
↗
37
6BP2819975D0
UR (NL)
Manual,owner's
Loading…
↗
37
6BP2819975G0
UR (D)
Manual,owner's
Loading…
↗
37
6BP2819975S0
UR (ES)
Manual,owner's
Loading…
↗
37
6BP2819975F0
UR (F)
Manual,owner's
Loading…
↗
38
6BP2819985K0
UR (DK)
Manual,owner's
Loading…
↗
38
6BP2819985R0
UR (GR)
Manual,owner's
Loading…
↗
38
6BP2819985P0
UR (P)
Manual,owner's
Loading…
↗
38
6BP2819985N0
UR (N)
Manual,owner's
Loading…
↗
38
6BP2819985M0
UR (S)
Manual,owner's
Loading…
↗
38
6BP2819985L0
UR (SF)
Manual,owner's
Loading…
↗
