F30AMHD (2009)
FUEL

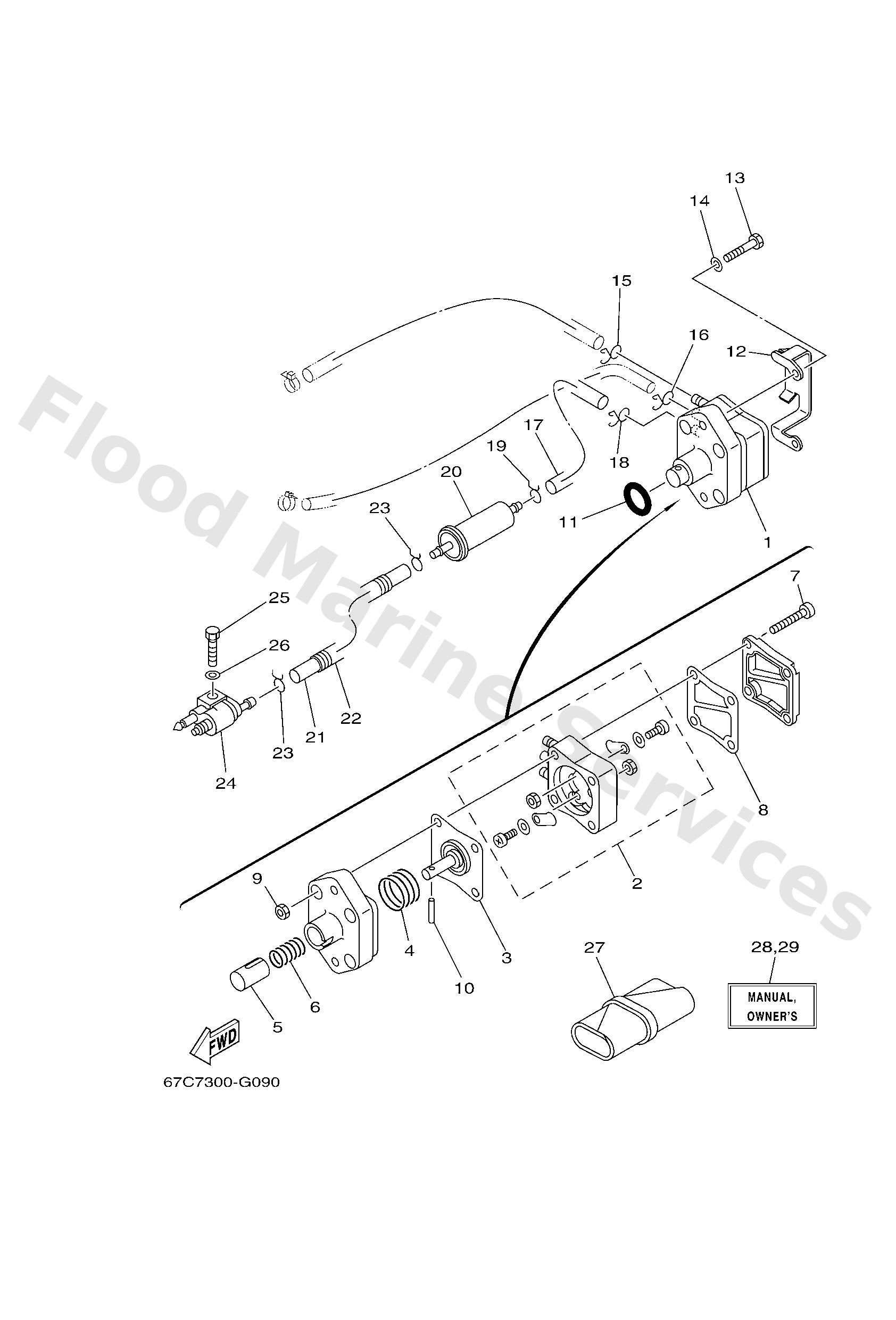

Diagram: FUEL
Parts List
Reference
Description
Price
1
62Y2441004
Fuel pump assembly
Loading…
↗
2
62Y2441501
Body 4
Loading…
↗
3
62Y2441102
Diaphragm
Loading…
↗
4
62Y2442300
Spring, diaphragm
Loading…
↗
5
62Y1313101
Plunger
Loading…
↗
6
62Y2445400
Spring
Loading…
↗
7
62Y2444401
Screw
Loading…
↗
8
6C52447100
Diaphragm
Loading…
↗
9
9538005600
Nut, hexagon (663)
Loading…
↗
10
62Y2437401
Pin
Loading…
↗
11
9321024M79
O-ring
Loading…
↗
12
65W2447400
Cover
Loading…
↗
13
9709506030
Bolt(jf7)
Loading…
↗
14
9299506600
Washer, plain (646)
Loading…
↗
15
9046710M04
Clip, pipe 1 (6e9)
Loading…
↗
16
9046709M17
Clip(6k8)
Loading…
↗
17
9044510MG6
Hose (l200)
Loading…
↗
19
9046709M03
Clip(6k8)
Loading…
↗
20
65W2425110
Strainer 1
Loading…
↗
21
9044510MH8
Hose 'l430)
Loading…
↗
22
9044614M12
Hose(6tc)
Loading…
↗
24
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
25
9709506025
Bolt
Loading…
↗
27
62Y2810000
Tool kit
Loading…
↗
28
67C281997AS0
UR (ES)
O/m f60a/f40b '09
Loading…
↗
28
67C281997AH0
UR (I)
O/m f60a/f40b '09
Loading…
↗
28
67C281997AD0
UR (NL)
O/m f60a/f40b '09
Loading…
↗
28
67C281997AG0
UR (D)
O/m f60a/f40b '09
Loading…
↗
28
67C281997AF0
UR (F)
O/m f60a/f40b '09
Loading…
↗
28
67C281997AE0
UR (E)
O/m f60a/f40b '09
Loading…
↗
29
67C281998CK0
UR (DK)
O/m f60a/f40b '09
Loading…
↗
29
67C281998CR0
UR (GR)
O/m f60a/f40b '09
Loading…
↗
29
67C281998CP0
UR (P)
O/m f60a/f40b '09
Loading…
↗
29
67C281998CN0
UR (N)
O/m f60a/f40b '09
Loading…
↗
29
67C281998CM0
UR (S)
O/m f60a/f40b '09
Loading…
↗
29
67C281998CL0
UR (SF)
O/m f60a/f40b '09
Loading…
↗
