F40BET (2004)
FUEL

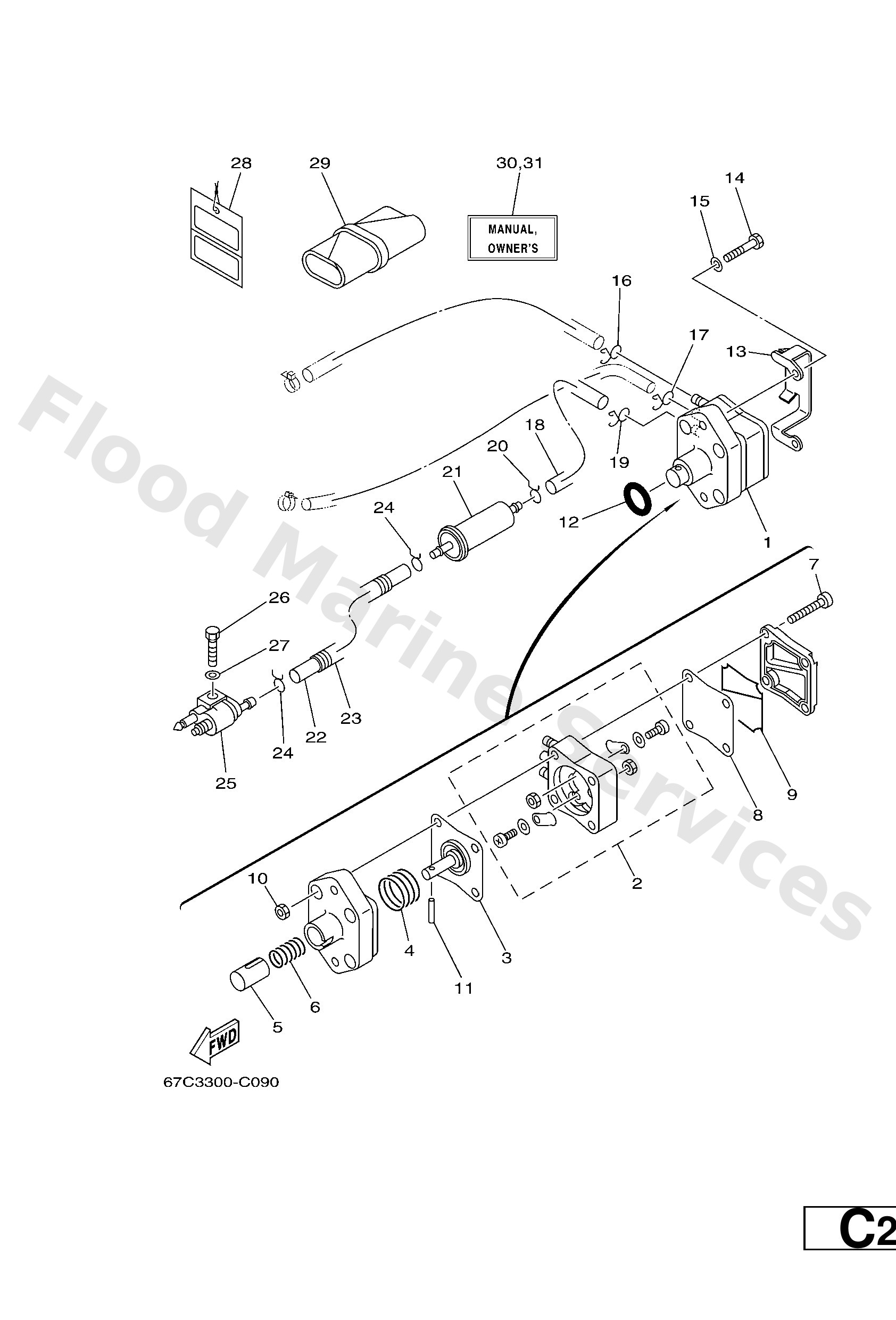

Diagram: FUEL
Parts List
Reference
Description
Price
1
62Y2441003
Fuel pump assembly
Loading…
↗
2
62Y2441500
Body 4
Loading…
↗
3
62Y2441102
Diaphragm
Loading…
↗
4
62Y2442300
Spring, diaphragm
Loading…
↗
5
62Y1313101
Plunger
Loading…
↗
6
62Y2445400
Spring
Loading…
↗
7
62Y2444401
Screw
Loading…
↗
8
62Y2447100
Diaphragm
Loading…
↗
9
62Y2445200
Packing
Loading…
↗
10
9538005600
Nut, hexagon (663)
Loading…
↗
11
62Y2437401
Pin
Loading…
↗
12
9321024M79
O-ring
Loading…
↗
13
65W2447400
Cover
Loading…
↗
14
9709506030
Bolt(jf7)
Loading…
↗
15
9299506600
Washer, plain (646)
Loading…
↗
16
9046710M04
Clip, pipe 1 (6e9)
Loading…
↗
17
9046709M17
Clip(6k8)
Loading…
↗
18
9044510MG6
Hose (l200)
Loading…
↗
20
9046709M03
Clip(6k8)
Loading…
↗
21
65W2425100
Strainer 1
Loading…
↗
22
9044510MH8
Hose 'l430)
Loading…
↗
23
9044614M12
Hose(6tc)
Loading…
↗
25
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
26
9709506025
Bolt
Loading…
↗
28
61H2819R31
-
Loading…
↗
29
62Y2810000
Tool kit
Loading…
↗
30
67C2819974A0
UR (E,F,S)
Om f-series
Loading…
↗
30
67C2819974B0
UR (D,NL,I)
Om f40b, f40 '04
Loading…
↗
31
67C2819985A0
UR (DK,P,GR)
Om f40b, f40 '04
Loading…
↗
31
67C2819985B0
UR (N,S,SS)
Om f40b, f40 '04
Loading…
↗
