Yamaha Outboard Parts - FUEL - F40FED (2017) | Flood Marine

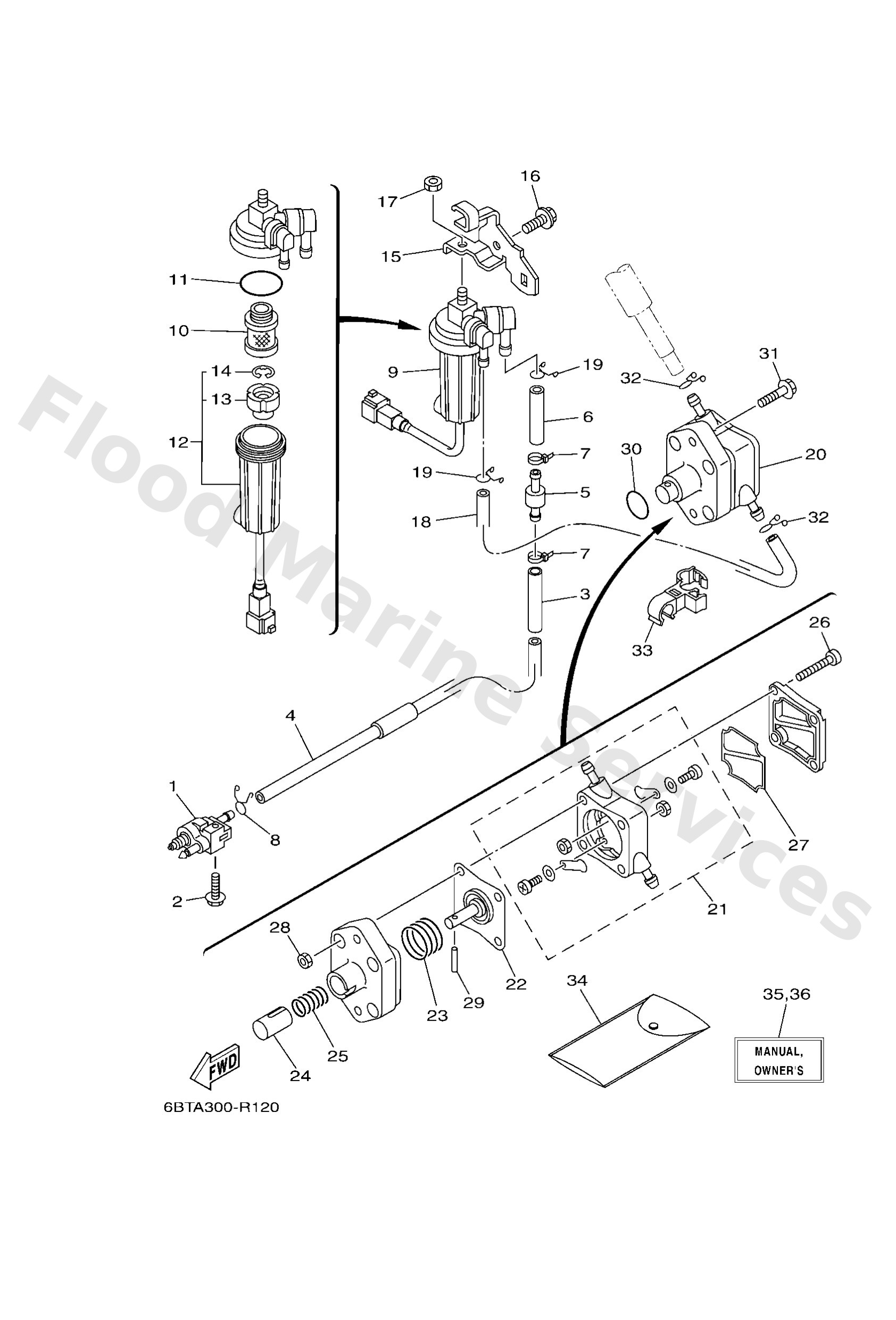

Diagram: FUEL

Diagram

Parts List

Reference

Description

Price

1

6G12430410

Fuel pipe joint comp. 1

Loading…

2

9759506525

Bolt, hexagon w/w deep recess

Loading…

3

9044514020

Loading…

4

6BG2431300

Loading…

5

67F2437700

Loading…

6

9044513M02

Loading…

7

9046511M10

Loading…

8

9046709M17

Loading…

9

6D82456001

Filter assembly

Loading…

10

6D82456300

Element, filter (with tag)

Loading…

11

6D82456400

Loading…

12

6D82456200

Cup, filter (with tag)

Loading…

13

6D82446900

Float, water level

Loading…

14

6D82451900

Loading…

15

6BG2456601

Bracket, filter

Loading…

16

9589508016

Bolt, flange deep recess

Loading…

17

9538008600

Loading…

18

6BG2431100

Loading…

19

9046711M08

Loading…

20

6C52441000

Fuel pump assembly

Loading…

21

6C52441500

Loading…

22

62Y2441102

Loading…

23

62Y2442300

Spring, diaphragm

Loading…

24

62Y1313100

Loading…

25

62Y2445400

Loading…

26

62Y2444401

Loading…

27

6C52447100

Loading…

28

9538005600

Nut, hexagon (663)

Loading…

29

62Y2437401

Loading…

30

9321024M79

Loading…

31

9759506530

Bolt, hexagon w/w deep recess

Loading…

32

9046710M04

Clip, pipe 1 (6e9)

Loading…

33

9046412012

Loading…

34

6C52810000 AP

Loading…

35

6BG2819979E0 UR (E)

Loading…

35

6BG2819979F0 UR (F)

Loading…

35

6BG2819979S0 UR (ES)

Loading…

35

6BG2819979G0 UR (D)

Loading…

35

6BG2819979D0 UR (NL)

Loading…

35

6BG2819979H0 UR (I)

Loading…

36

6BG2819989K0 UR (DK)

Loading…

36

6BG2819989R0 UR (GR)

Loading…

36

6BG2819989P0 UR (P)

Loading…

36

6BG2819989N0 UR (N)

Loading…

36

6BG2819989M0 UR (S)

Loading…

36

6BG2819989L0 UR (SF)

Loading…
