F40FEHD (2011)
FUEL

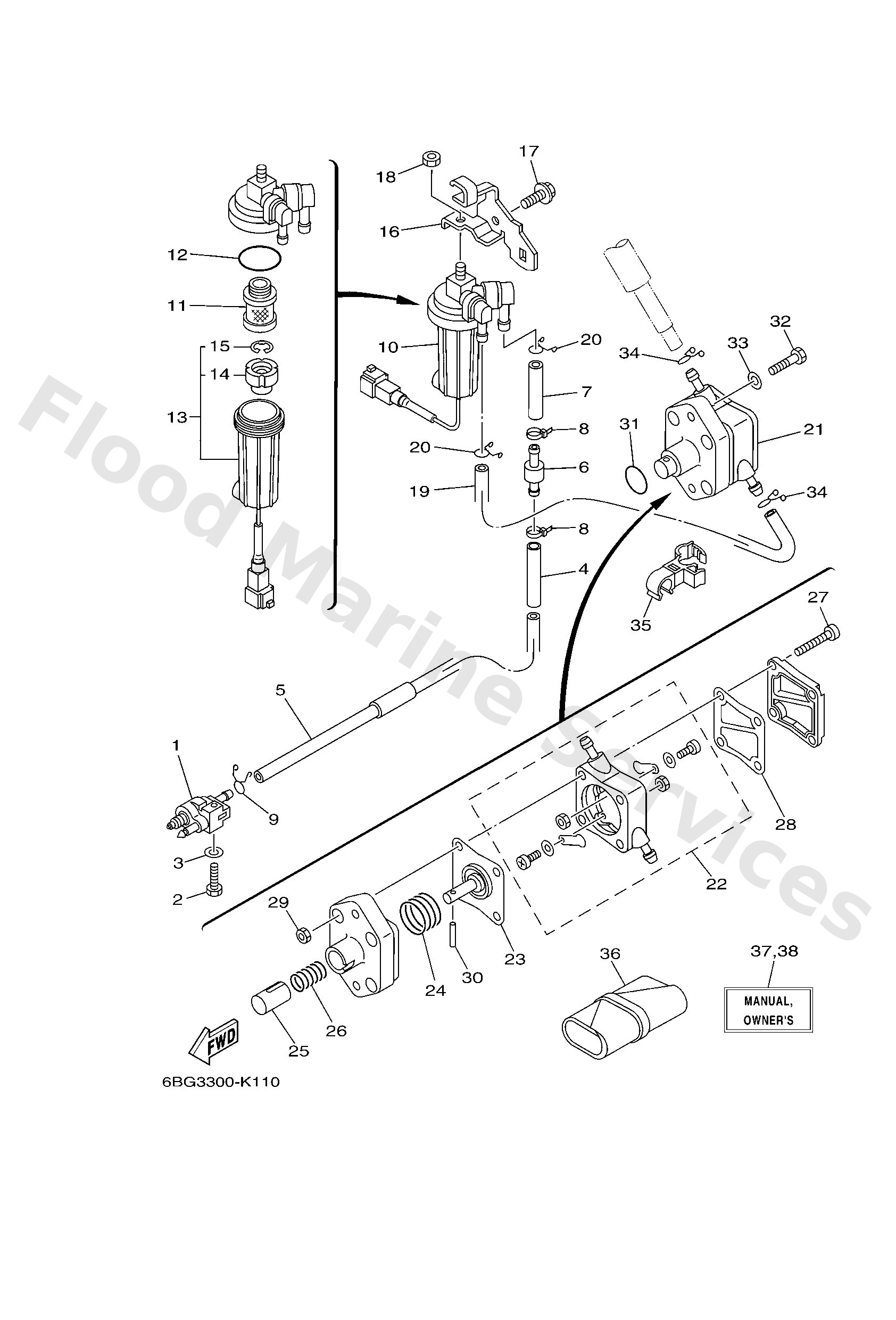

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
2
9709506025
Bolt
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
9044514020
Hose (l65)
Loading…
↗
5
6BG2431300
Pipe 3
Loading…
↗
6
67F2437700
Pipe, joint 3
Loading…
↗
7
9044513M02
Hose (l90)
Loading…
↗
8
9046511M10
Clamp
Loading…
↗
9
9046709M17
Clip(6k8)
Loading…
↗
10
6D82456000
Filter assembly
Loading…
↗
11
6D82456300
Element, filter (with tag)
Loading…
↗
12
6D82456400
Gasket
Loading…
↗
13
6D82456200
Cup, filter (with tag)
Loading…
↗
14
6D82446900
Float, water level
Loading…
↗
15
6D82451900
Clip
Loading…
↗
16
6BG2456600
Bracket, filter
Loading…
↗
17
9589508016
Bolt, flange deep recess
Loading…
↗
18
9538008600
Nut (661)
Loading…
↗
19
6BG2431100
Pipe, fuel 1
Loading…
↗
20
9046711M08
Clip(72x)
Loading…
↗
21
6C52441000
Fuel pump assembly
Loading…
↗
22
6C52441500
Body 4
Loading…
↗
23
62Y2441102
Diaphragm
Loading…
↗
24
62Y2442300
Spring, diaphragm
Loading…
↗
25
62Y1313100
Plunger
Loading…
↗
26
62Y2445400
Spring
Loading…
↗
27
62Y2444401
Screw
Loading…
↗
28
6C52447100
Diaphragm
Loading…
↗
29
9538005600
Nut, hexagon (663)
Loading…
↗
30
62Y2437401
Pin
Loading…
↗
31
9321024M79
O-ring
Loading…
↗
32
9709506030
Bolt(jf7)
Loading…
↗
34
9046710M04
Clip, pipe 1 (6e9)
Loading…
↗
35
9046412012
Clamp
Loading…
↗
36
6C52810000
AP
Tool kit
Loading…
↗
37
6BG2819973E0
UR (E)
Manual,owner's
Loading…
↗
37
6BG2819973H0
UR (I)
Manual,owner's
Loading…
↗
37
6BG2819973D0
UR (NL)
Manual,owner's
Loading…
↗
37
6BG2819973G0
UR (D)
Manual,owner's
Loading…
↗
37
6BG2819973S0
UR (ES)
Manual,owner's
Loading…
↗
37
6BG2819973F0
UR (F)
Manual,owner's
Loading…
↗
38
6BG2819983K0
UR (DK)
Manual,owner's
Loading…
↗
38
6BG2819983R0
UR (GR)
Manual,owner's
Loading…
↗
38
6BG2819983P0
UR (P)
Manual,owner's
Loading…
↗
38
6BG2819983N0
UR (N)
Manual,owner's
Loading…
↗
38
6BG2819983M0
UR (S)
O/m f40f/f30b '11
Loading…
↗
38
6BG2819983L0
UR (SF)
Manual,owner's
Loading…
↗
