F40GET1 (2022)
FUEL

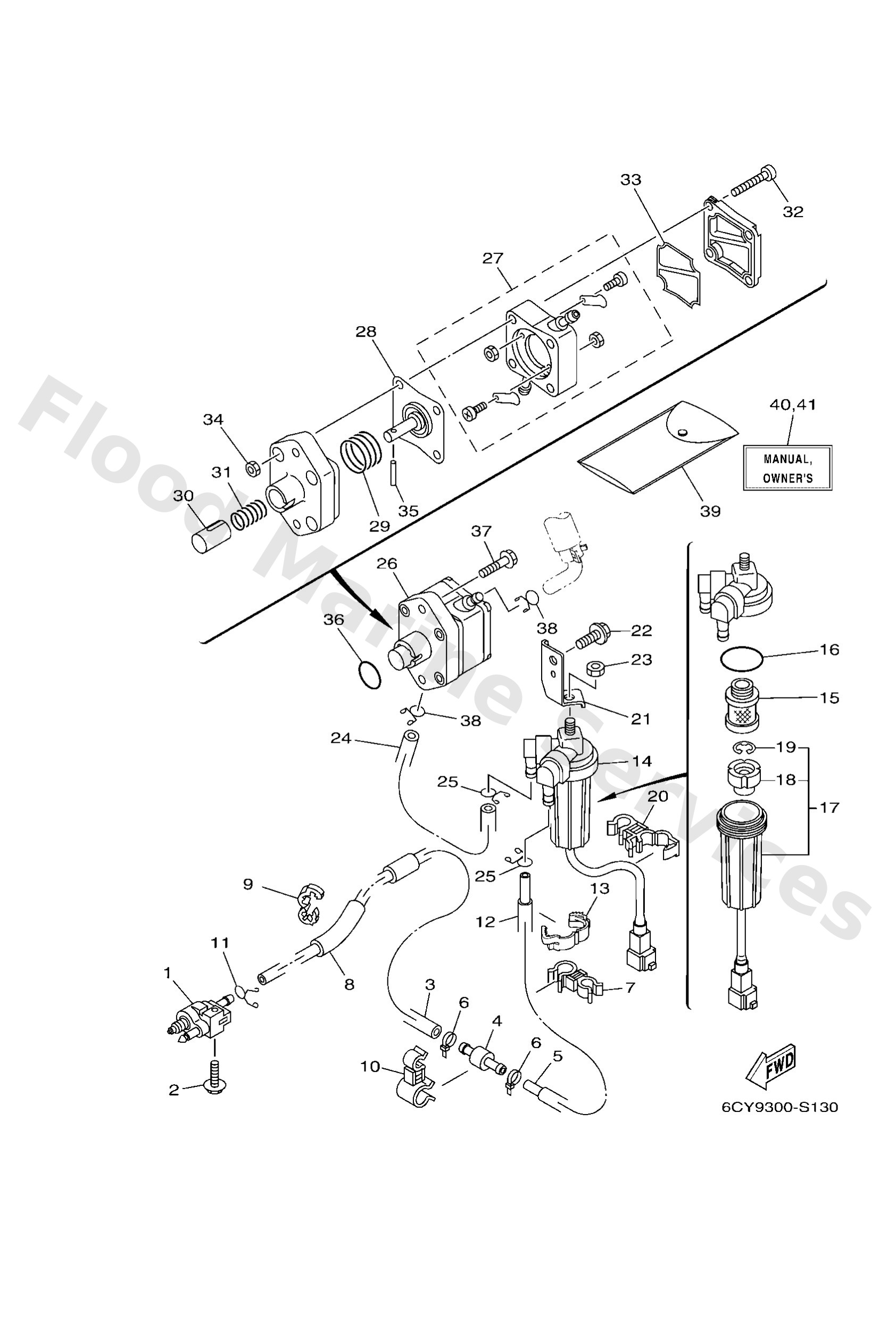

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430410
Fuel pipe joint comp. 1
Loading…
↗
2
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
3
6BG2431300
Pipe 3
Loading…
↗
4
67F2437700
Pipe, joint 3
Loading…
↗
5
90445133F0
Hose (l195)
Loading…
↗
6
9046511M10
Clamp
Loading…
↗
7
9046412004
Clamp
Loading…
↗
8
9044613M11
Hose(6n6)
Loading…
↗
9
9046413227
Clamp
Loading…
↗
10
9046416017
Clamp
Loading…
↗
11
9046709M17
Clip(6k8)
Loading…
↗
12
9044615006
Hose
Loading…
↗
13
9046414010
Clamp
Loading…
↗
14
6D82456001
Filter assembly
Loading…
↗
15
6D82456300
Element, filter (with tag)
Loading…
↗
16
6D82456400
Gasket
Loading…
↗
17
6D82456200
Cup, filter (with tag)
Loading…
↗
18
6D82446900
Float, water level
Loading…
↗
19
6D82451900
Clip
Loading…
↗
20
9046412012
Clamp
Loading…
↗
21
6CJ2456600
Bracket, filter
Loading…
↗
22
95D9508016
Bolt, flange deep recess
Loading…
↗
23
9538008600
Nut (661)
Loading…
↗
24
6BG2431100
Pipe, fuel 1
Loading…
↗
25
9046711M08
Clip(72x)
Loading…
↗
26
6CJ2441001
Fuel pump assembly
Loading…
↗
27
6CJ2441500
Body 4
Loading…
↗
28
62Y2441103
Diaphragm
Loading…
↗
29
62Y2442300
Spring, diaphragm
Loading…
↗
30
6CJ1313100
Plunger
Loading…
↗
31
6CJ2445400
Spring
Loading…
↗
32
62Y2444401
Screw
Loading…
↗
33
6C52447101
Diaphragm
Loading…
↗
34
9538005600
Nut, hexagon (663)
Loading…
↗
35
6CJ2437400
Pin
Loading…
↗
36
9321024M79
O-ring
Loading…
↗
37
97E9506530
Bolt, hexagon w/w deep recess
Loading…
↗
38
9046710M04
Clip, pipe 1 (6e9)
Loading…
↗
39
6CJ2810001
AP
Tool kit
Loading…
↗
40
6C1281997LE0
UR (E)
Manual,owner's
Loading…
↗
40
6C1281997LF0
UR (F)
Manual,owner's
Loading…
↗
40
6C1281997LS0
UR (ES)
Manual,owner's
Loading…
↗
40
6C1281997LG0
UR (D)
Manual,owner's
Loading…
↗
40
6C1281997LD0
UR (NL)
Manual,owner's
Loading…
↗
40
6C1281997LH0
UR (I)
Manual,owner's
Loading…
↗
41
6C1281998LK0
UR (DK)
Manual,owner's
Loading…
↗
41
6C1281998LR0
UR (GR)
Manual,owner's
Loading…
↗
41
6C1281998LP0
UR (P)
Manual,owner's
Loading…
↗
41
6C1281998LN0
UR (N)
Manual,owner's
Loading…
↗
41
6C1281998LM0
UR (S)
Manual,owner's
Loading…
↗
41
6C1281998LL0
UR (SF)
Manual,owner's
Loading…
↗
