F50DET (2010)
FUEL

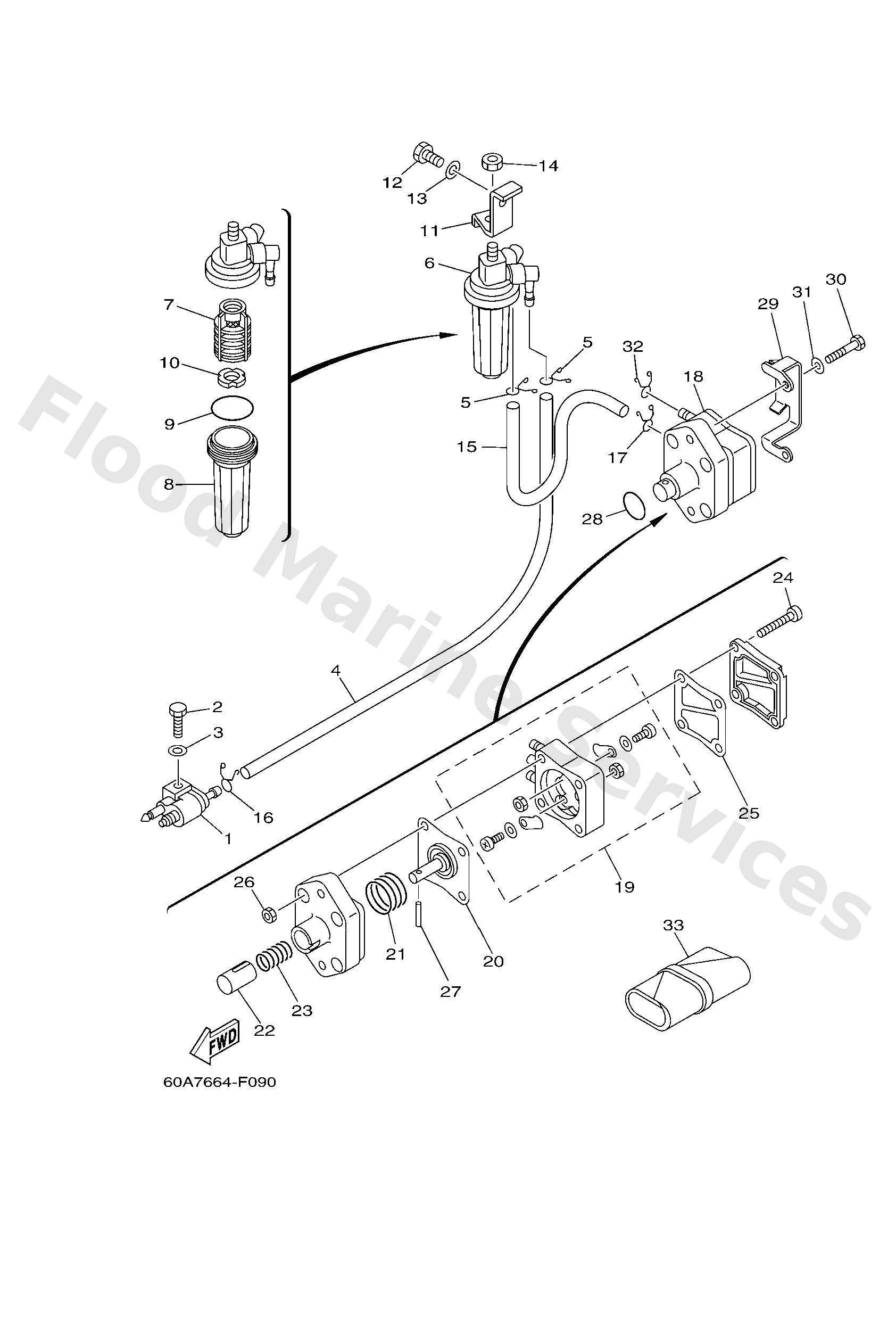

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
2
9709506025
Bolt
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
9044510020
Hose (l590)
Loading…
↗
5
9046709M17
Clip(6k8)
Loading…
↗
6
64J2456000
Filter assembly
Loading…
↗
7
61N2456300
Element, filter
Loading…
↗
8
68V2452101
Cup, filter
Loading…
↗
9
9321032738
O-ring(1wg)
Loading…
↗
10
68V2446901
Float, water level
Loading…
↗
11
62Y2456600
Bracket, filter
Loading…
↗
12
9709508014
Bolt, hexagon deep recess
Loading…
↗
13
9299508600
Washer, plain (663)
Loading…
↗
14
9538008600
Nut (661)
Loading…
↗
15
9044510M48
Hose (l400)
Loading…
↗
17
9046710M04
Clip, pipe 1 (6e9)
Loading…
↗
18
62Y2441004
Fuel pump assembly
Loading…
↗
19
62Y2441501
Body 4
Loading…
↗
20
62Y2441102
Diaphragm
Loading…
↗
21
62Y2442300
Spring, diaphragm
Loading…
↗
22
62Y1313101
Plunger
Loading…
↗
23
62Y2445400
Spring
Loading…
↗
24
62Y2444401
Screw
Loading…
↗
25
6C52447100
Diaphragm
Loading…
↗
26
9538005600
Nut, hexagon (663)
Loading…
↗
27
62Y2437401
Pin
Loading…
↗
28
9321024M79
O-ring
Loading…
↗
29
65W2447400
Cover
Loading…
↗
30
9709506030
Bolt(jf7)
Loading…
↗
33
62Y2810000
Tool kit
Loading…
↗
