F6AMH (2002)
FUEL

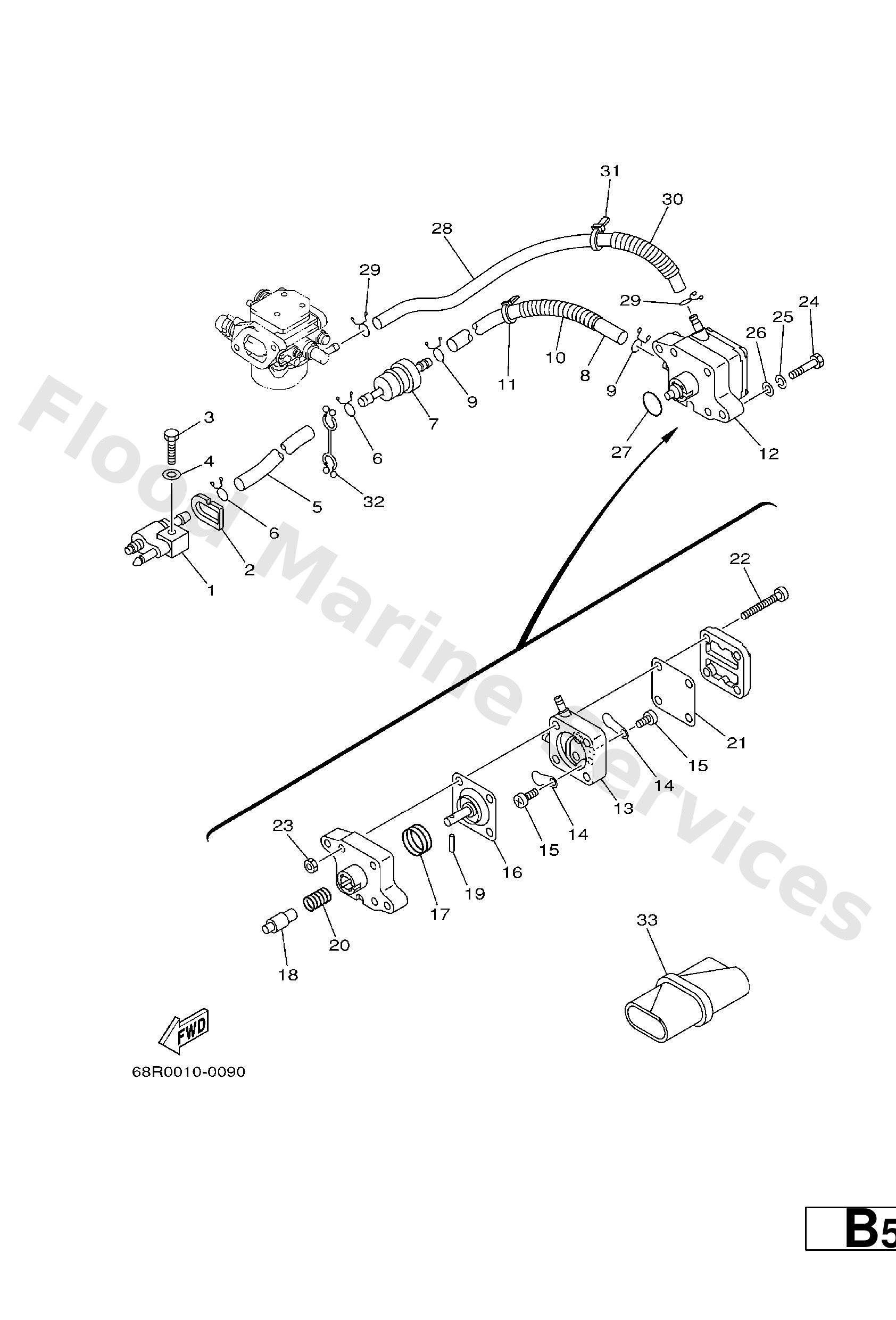

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
2
61N2432900
Seal
Loading…
↗
3
9709506025
Bolt
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
9044510M18
Hose (l400)
Loading…
↗
6
9046709M09
Clip(6k8)
Loading…
↗
7
68T2425100
Strainer 1
Loading…
↗
8
9044510M50
Hose (l400)
Loading…
↗
10
9044614M66
Hose(64x)
Loading…
↗
11
9046511M10
Clamp
Loading…
↗
12
68T2441000
Fuel pump assembly
Loading…
↗
13
66M2441301
Body 2
Loading…
↗
14
6A02442101
Valve, check
Loading…
↗
15
6E71432500
Screw, pan head
Loading…
↗
16
66M2441100
Diaphragm
Loading…
↗
17
66M2442300
Spring, diaphragm
Loading…
↗
18
66M1313100
Plunger
Loading…
↗
19
66M2437400
Pin
Loading…
↗
20
66M2445400
Spring
Loading…
↗
21
66M2447100
Diaphragm
Loading…
↗
22
66M2444400
Screw
Loading…
↗
23
9538005600
Nut, hexagon (663)
Loading…
↗
24
9709506030
Bolt(jf7)
Loading…
↗
25
9299506100
Washer(6a1)
Loading…
↗
27
9321020M65
O-ring
Loading…
↗
28
9044510016
Hose (l280)
Loading…
↗
32
9046410M53
Clamp
Loading…
↗
33
68T2810000
Tool kit
Loading…
↗
