F80CED (2009)
FUEL

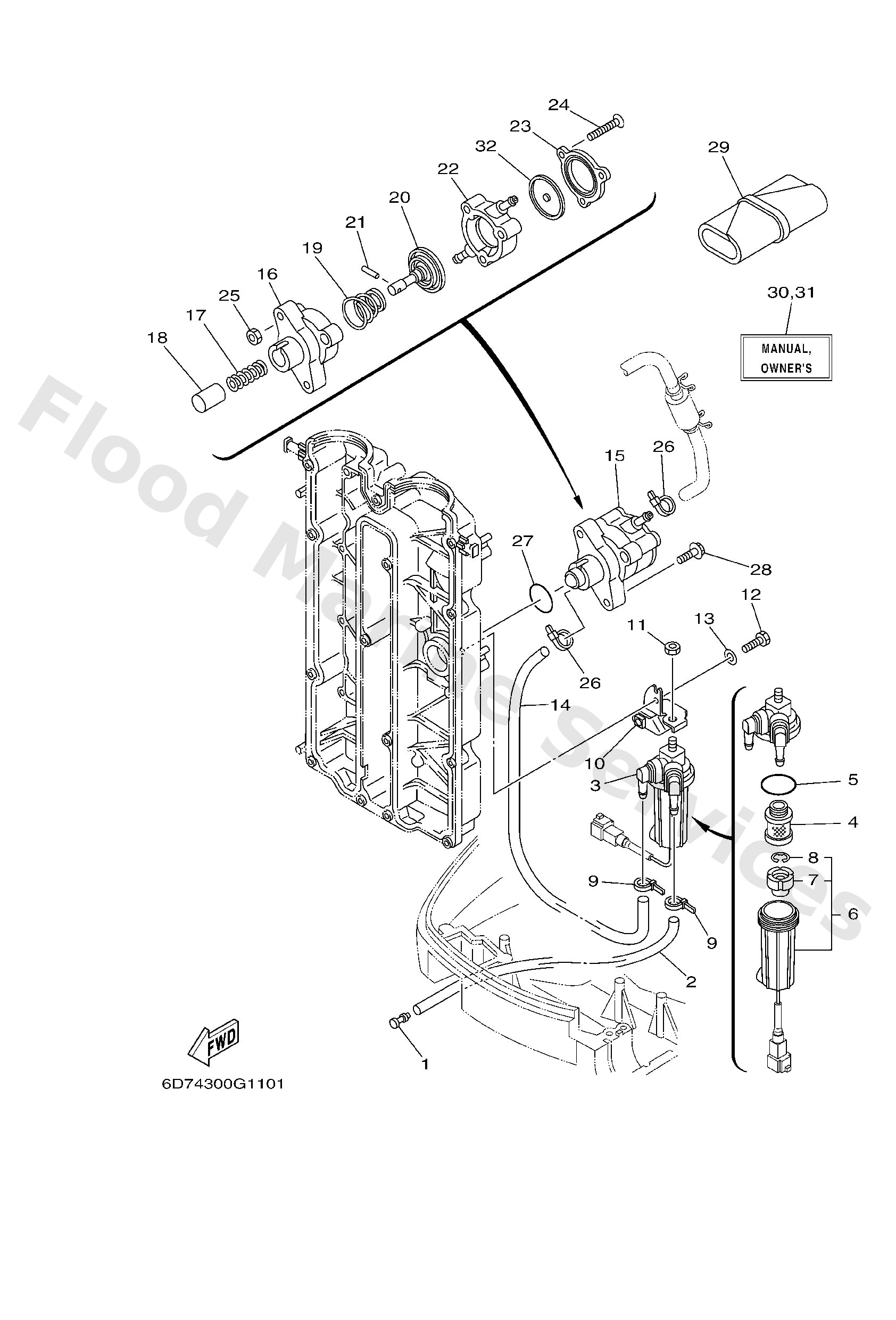

Diagram: FUEL
Parts List
Reference
Description
Price
1
6898554700
Damper
Loading…
↗
2
9044513M37
Hose (l2300)
Loading…
↗
3
6D82456000
Filter assembly
Loading…
↗
4
6D82456300
Element, filter (with tag)
Loading…
↗
5
6D82456400
Gasket
Loading…
↗
6
6D82456200
Cup, filter (with tag)
Loading…
↗
7
6D82446900
Float, water level
Loading…
↗
8
6D82451900
Clip
Loading…
↗
9
9046511M10
Clamp
Loading…
↗
10
6D82456600
Bracket, filter
Loading…
↗
11
9538008600
Nut (661)
Loading…
↗
12
9709506016
Bolt, hexagon deep recess
Loading…
↗
13
9299506600
Washer, plain (646)
Loading…
↗
14
6D82431100
Pipe, fuel 1
Loading…
↗
15
6D82441010
Fuel pump assembly
Loading…
↗
16
68V2441200
Body 1
Loading…
↗
17
68V2445400
Spring
Loading…
↗
18
63P1313100
Plunger
Loading…
↗
19
68V2442300
Spring, diaphragm
Loading…
↗
20
68V2441100
Diaphragm
Loading…
↗
21
68V2437400
Pin
Loading…
↗
22
68V2441300
Body 2
Loading…
↗
23
6D82441400
Body 3
Loading…
↗
24
68V2444400
Screw
Loading…
↗
25
68V2414900
Nut
Loading…
↗
27
9321030682
O-ring (371)
Loading…
↗
28
9011906M83
Bolt, with washer
Loading…
↗
29
67F2810001
Tool kit
Loading…
↗
30
6D72819975G0
UR (D)
O/m f80b/f80c/f100d '09
Loading…
↗
30
6D72819975H0
UR (I)
O/m f80b/f80c/f100d '09
Loading…
↗
30
6D72819975D0
UR (NL)
O/m f80b/f80c/f100d '09
Loading…
↗
30
6D72819975S0
UR (ES)
O/m f80b/f80c/f100d '09
Loading…
↗
30
6D72819975F0
UR (F)
O/m f80b/f80c/f100d '09
Loading…
↗
30
6D72819975E0
UR (E)
O/m f80b/f80c/f100d '09
Loading…
↗
31
6D72819985K0
UR (DK)
O/m f80d/f80c/f100d '09
Loading…
↗
31
6D72819985R0
UR (GR)
O/m f80d/f80c/f100d '09
Loading…
↗
31
6D72819985P0
UR (P)
O/m f80d/f80c/f100d '09
Loading…
↗
31
6D72819985N0
UR (N)
O/m f80d/f80c/f100d '09
Loading…
↗
31
6D72819985M0
UR (S)
O/m f80d/f80c/f100d '09
Loading…
↗
31
6D72819985L0
UR (SF)
O/m f80d/f80c/f100d '09
Loading…
↗
32
68V2447110
Diaphragm
Loading…
↗
38
4EB2314400
Seal, dust
Loading…
↗
