F9.9CE (2008)
FUEL

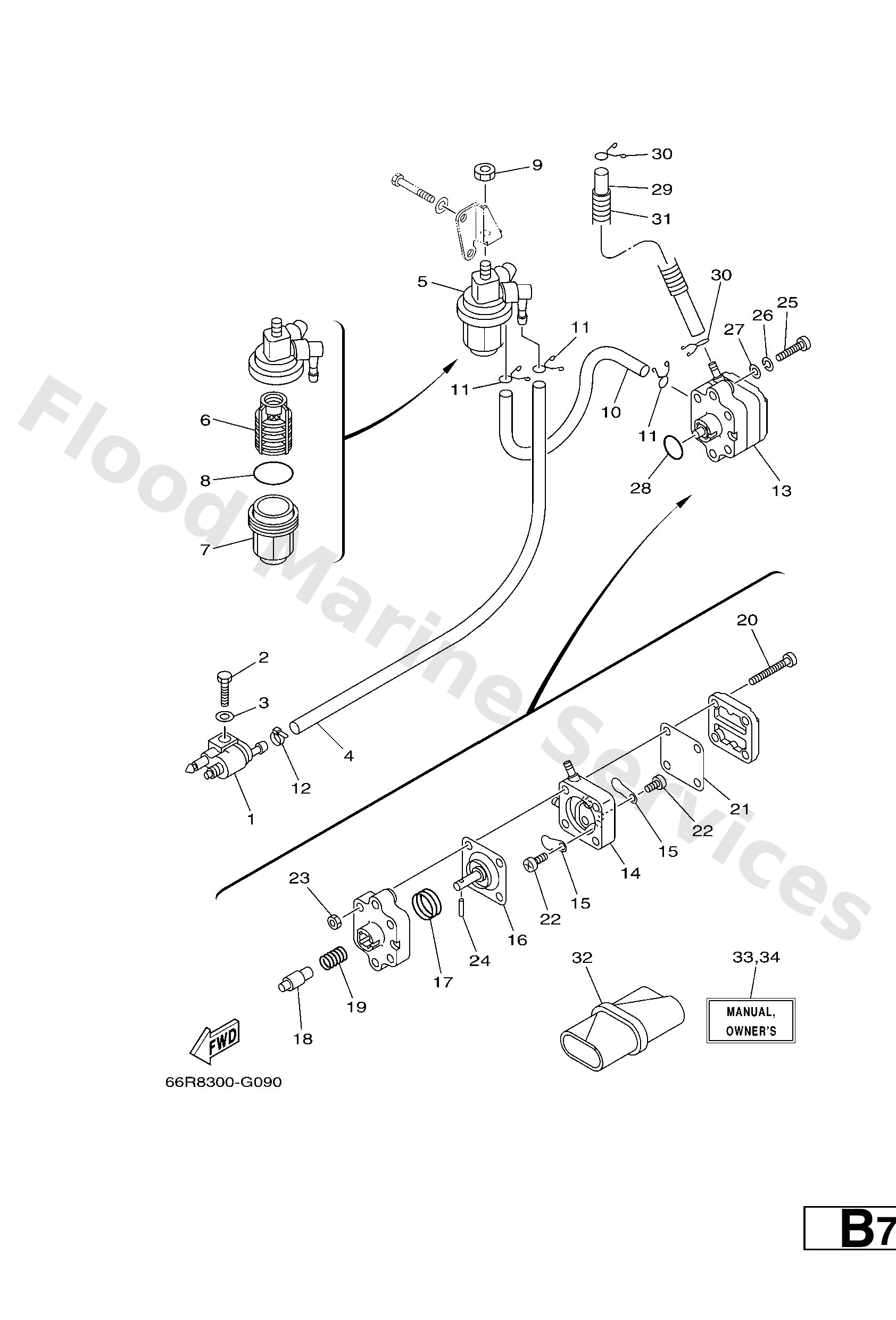

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
2
9709506020
Bolt(7u8)
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
9044510M19
Hose (l590)
Loading…
↗
5
61N2456000
Filter assembly
Loading…
↗
6
61N2456300
Element, filter
Loading…
↗
7
61N2452100
Cup, filter
Loading…
↗
8
9321032738
O-ring(1wg)
Loading…
↗
9
9538008600
Nut (661)
Loading…
↗
10
9044510M15
Hose (l400)
Loading…
↗
11
9046709M17
Clip(6k8)
Loading…
↗
12
9046511M10
Clamp
Loading…
↗
13
66M2441011
Fuel pump assembly
Loading…
↗
14
66M2441301
Body 2
Loading…
↗
15
6A02442101
Valve, check
Loading…
↗
16
66M2441111
Diaphragm
Loading…
↗
17
66M2442300
Spring, diaphragm
Loading…
↗
18
66M1313110
Plunger
Loading…
↗
19
66M2445400
Spring
Loading…
↗
20
66M2444400
Screw
Loading…
↗
21
66M2447101
Diaphragm
Loading…
↗
22
6E71432500
Screw, pan head
Loading…
↗
23
9538004600
Nut,hex
Loading…
↗
24
66M2437400
Pin
Loading…
↗
25
9788006030
Screw, pan head(6e0)
Loading…
↗
26
9299006100
Washer(6a1)
Loading…
↗
27
9299006600
Washer, plain (646)
Loading…
↗
28
9321020M65
O-ring
Loading…
↗
29
9044510M93
Hose (l400)
Loading…
↗
31
9044614M51
Hose(6tc)
Loading…
↗
32
62Y2810000
Tool kit
Loading…
↗
33
66M281997CF0
UR (F)
O/m f15a/f9.9c/ft9.9d '08
Loading…
↗
33
66M281997CH0
UR (I)
O/m f15a/f9.9c/ft9.9d '08
Loading…
↗
33
66M281997CD0
UR (NL)
O/m f15a/f9.9c/ft9.9d '08
Loading…
↗
33
66M281997CG0
UR (D)
O/m f15a/f9.9c/ft9.9d '08
Loading…
↗
33
66M281997CS0
UR (ES)
O/m f15a/f9.9c/ft9.9d '08
Loading…
↗
33
66M281997CE0
UR (E)
O/m f15a/f9.9c/ft9.9d '08
Loading…
↗
34
66M281998DK0
UR (DK)
O/m f15a/f9.9c/ft9.9d '08
Loading…
↗
34
66M281998DR0
UR (GR)
O/m f15a/f9.9c/ft9.9d '08
Loading…
↗
34
66M281998DP0
UR (P)
O/m f15a/f9.9c/ft9.9d '08
Loading…
↗
34
66M281998DN0
UR (N)
O/m f15a/f9.9c/ft9.9d '08
Loading…
↗
34
66M281998DM0
UR (S)
O/m f15a/f9.9c/ft9.9d '08
Loading…
↗
34
66M281998DL0
UR (SF)
O/m f15a/f9.9c/ft9.9d '08
Loading…
↗
