F9.9FE (2008)
FUEL

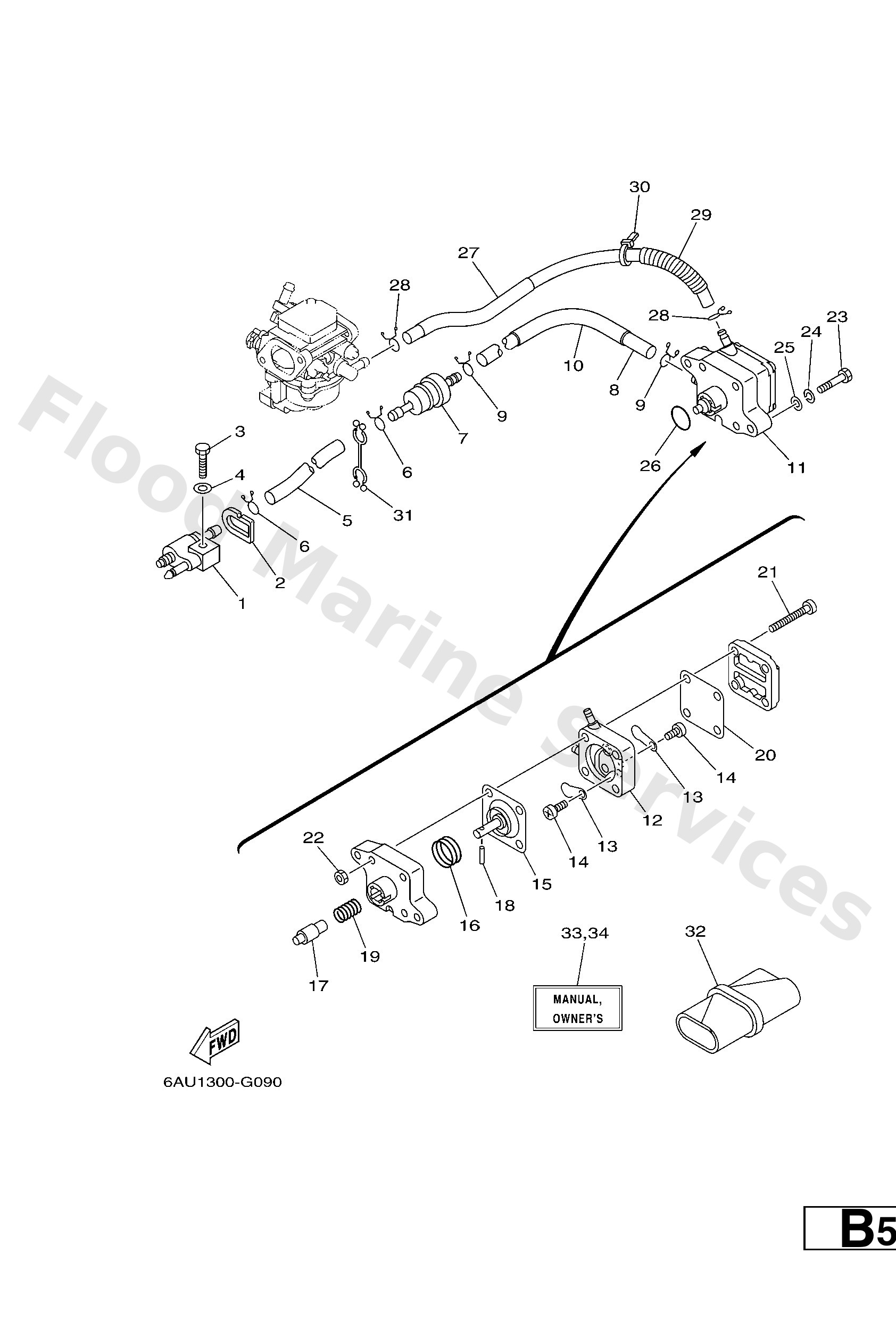

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
2
61N2432900
Seal
Loading…
↗
3
9709506025
Bolt
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
9044510M18
Hose (l400)
Loading…
↗
6
9046709M09
Clip(6k8)
Loading…
↗
7
68T2425100
Strainer 1
Loading…
↗
8
9044510M50
Hose (l400)
Loading…
↗
10
9044516010
Hose
Loading…
↗
11
68T2441001
Fuel pump assembly
Loading…
↗
12
66M2441301
Body 2
Loading…
↗
13
6A02442101
Valve, check
Loading…
↗
14
6E71432500
Screw, pan head
Loading…
↗
15
66M2441101
Diaphragm
Loading…
↗
16
66M2442300
Spring, diaphragm
Loading…
↗
17
66M1313100
Plunger
Loading…
↗
18
66M2437400
Pin
Loading…
↗
19
66M2445400
Spring
Loading…
↗
20
66M2447101
Diaphragm
Loading…
↗
21
66M2444400
Screw
Loading…
↗
22
9538004600
Nut,hex
Loading…
↗
23
9709506030
Bolt(jf7)
Loading…
↗
24
9299506100
Washer(6a1)
Loading…
↗
26
9321020M65
O-ring
Loading…
↗
27
6AU2431100
Pipe, fuel 1
Loading…
↗
29
9044614M66
Hose(64x)
Loading…
↗
30
9046511M10
Clamp
Loading…
↗
31
9046410M53
Clamp
Loading…
↗
32
68T2810000
Tool kit
Loading…
↗
33
6AU2819970F0
UR (F)
O/m f9.9f '08
Loading…
↗
33
6AU2819970H0
UR (I)
O/m f9.9f '08
Loading…
↗
33
6AU2819970D0
UR (NL)
O/m f9.9f '08
Loading…
↗
33
6AU2819970G0
UR (D)
O/m f9.9f '08
Loading…
↗
33
6AU2819970S0
UR (ES)
O/m f9.9f '08
Loading…
↗
33
6AU2819970E0
UR (E)
O/m f9.9fmhs/ft9.9 '08
Loading…
↗
34
6AU2819980K0
UR (DK)
O/m f9.9f '08
Loading…
↗
34
6AU2819980R0
UR (GR)
O/m f9.9f '08
Loading…
↗
34
6AU2819980P0
UR (P)
O/m f9.9f '08
Loading…
↗
34
6AU2819980N0
UR (N)
O/m f9.9f '08
Loading…
↗
34
6AU2819980M0
UR (S)
O/m f9.9f '08
Loading…
↗
34
6AU2819980L0
UR (SF)
O/m f9.9f '08
Loading…
↗
