F9.9HMH (2009)
FUEL

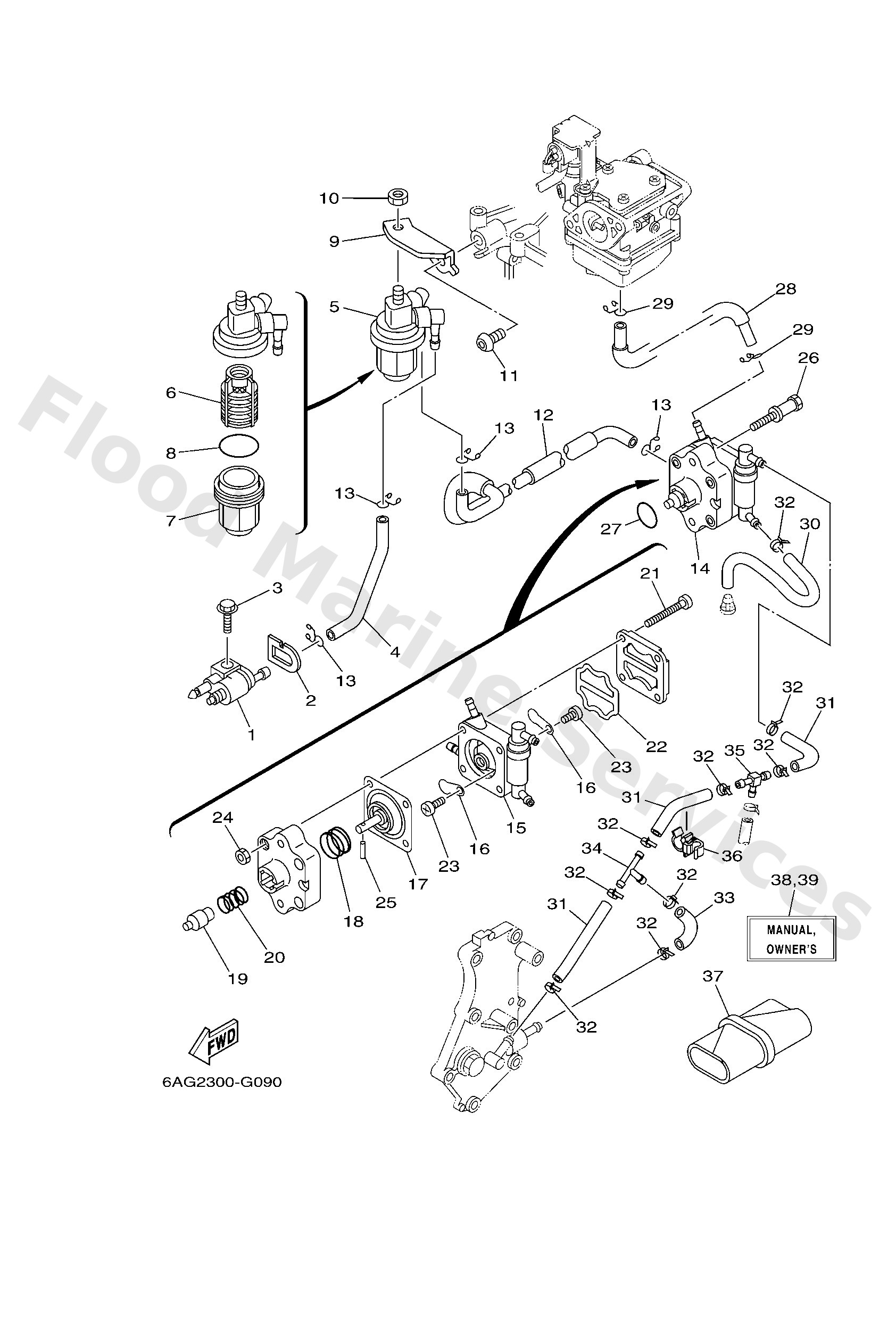

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
2
61N2432900
Seal
Loading…
↗
3
9589506020
Bolt, flange(jk3)
Loading…
↗
4
6AH2431100
Pipe, fuel 1
Loading…
↗
5
61N2456000
Filter assembly
Loading…
↗
6
61N2456300
Element, filter
Loading…
↗
7
61N2452100
Cup, filter
Loading…
↗
8
9321032738
O-ring(1wg)
Loading…
↗
9
6AH2456600
Bracket, filter
Loading…
↗
10
9538008600
Nut (661)
Loading…
↗
11
9011108055
Bolt,hex. socket button
Loading…
↗
12
6AH2431200
Pipe 2
Loading…
↗
13
9046709M17
Clip(6k8)
Loading…
↗
14
6AH2441000
Fuel pump assembly
Loading…
↗
15
6AH2441300
Body 2
Loading…
↗
16
6A02442101
Valve, check
Loading…
↗
17
66M2441111
Diaphragm
Loading…
↗
18
66M2442300
Spring, diaphragm
Loading…
↗
19
66M1313110
Plunger
Loading…
↗
20
66M2445400
Spring
Loading…
↗
21
66M2444400
Screw
Loading…
↗
22
66M2447101
Diaphragm
Loading…
↗
23
6E71432500
Screw, pan head
Loading…
↗
24
9538004600
Nut,hex
Loading…
↗
25
66M2437400
Pin
Loading…
↗
26
9010906215
Bolt
Loading…
↗
27
9321020M65
O-ring
Loading…
↗
28
6AH2431300
Pipe 3
Loading…
↗
30
6AH2431500
Pipe 5
Loading…
↗
31
9044509026
Hose (l420)
Loading…
↗
32
9046511M10
Clamp
Loading…
↗
33
6AH2431700
Pipe 7
Loading…
↗
34
6882437800
Pipe, joint
Loading…
↗
35
6C52437800
Pipe, joint 4
Loading…
↗
36
9046409018
Clamp
Loading…
↗
37
62Y2810000
Tool kit
Loading…
↗
38
6AG2819973E0
UR (E)
Om f13.5b/f15c/f20b/f9.9h '09
Loading…
↗
38
6AG2819973H0
UR (I)
Om f13.5b/f15c/f20b/f9.9h '09
Loading…
↗
38
6AG2819973D0
UR (NL)
Om f13.5b/f15c/f20b/f9.9h '09
Loading…
↗
38
6AG2819973G0
UR (D)
Om f13.5b/f15c/f20b/f9.9h '09
Loading…
↗
38
6AG2819973S0
UR (ES)
Om f13.5b/f15c/f20b/f9.9h '09
Loading…
↗
38
6AG2819973F0
UR (F)
Om f13.5b/f15c/f20b/f9.9h '09
Loading…
↗
39
6AG2819983K0
UR (DK)
Om f13.5b/f15c/f20b/f9.9h '09
Loading…
↗
39
6AG2819983R0
UR (GR)
Om f13.5b/f15c/f20b/f9.9h '09
Loading…
↗
39
6AG2819983P0
UR (P)
Om f13.5b/f15c/f20b/f9.9h '09
Loading…
↗
39
6AG2819983N0
UR (N)
Om f13.5b/f15c/f20b/f9.9h '09
Loading…
↗
39
6AG2819983M0
UR (S)
Om f13.5b/f15c/f20b/f9.9h '09
Loading…
↗
39
6AG2819983L0
UR (SF)
Om f13.5b/f15c/f20b/f9.9h '09
Loading…
↗
