Yamaha Outboard Parts - FUEL - F9.9JE (2013) | Flood Marine
New Search
Parts
New Outboards
Home
F9.9JE (2013)
FUEL

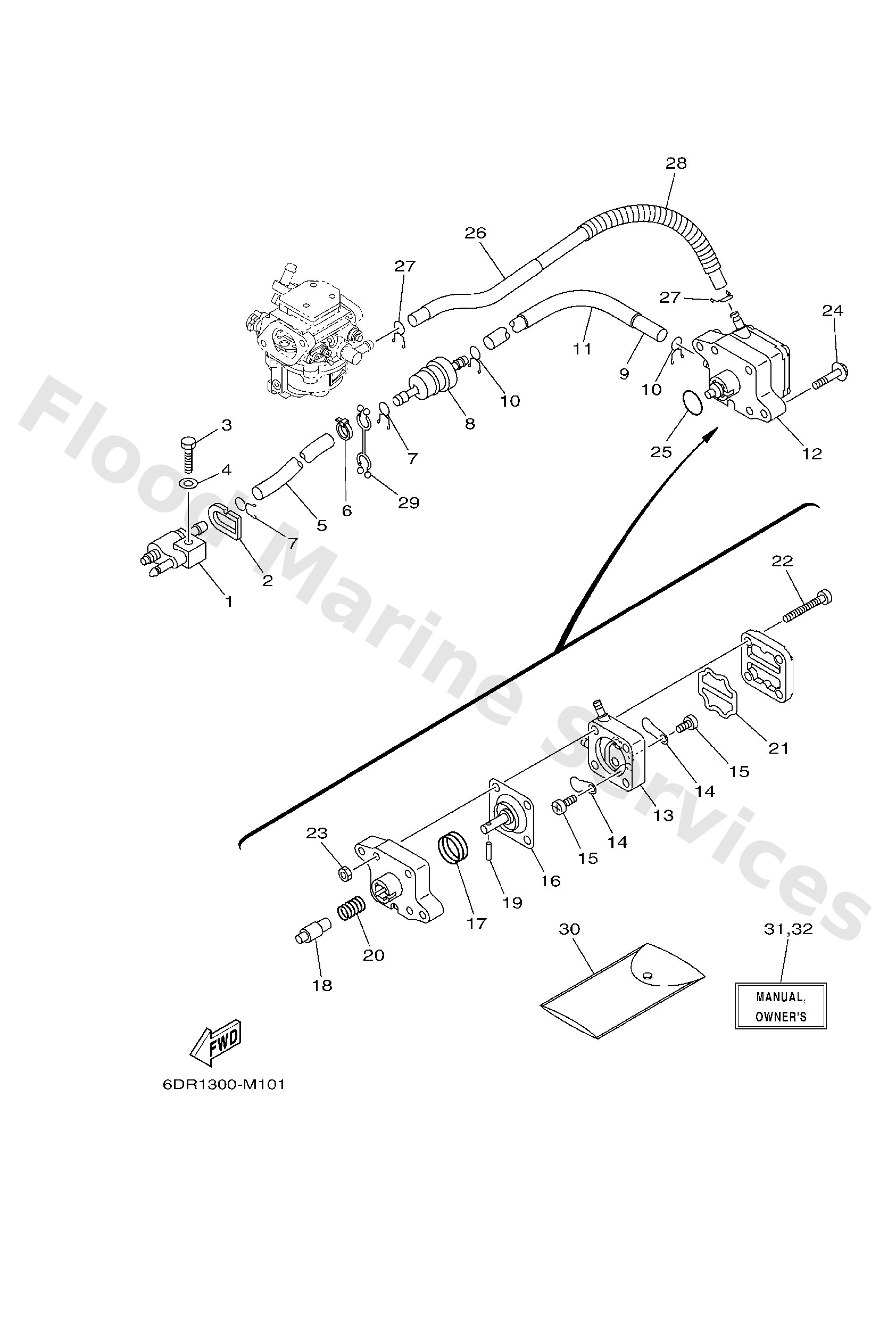

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
2
61N2432900
Seal
Loading…
↗
3
9709506025
Bolt
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
9044510046
Hose
Loading…
↗
6
9046511M10
Clamp
Loading…
↗
7
9046709M09
Clip(6k8)
Loading…
↗
8
68T2425101
Strainer 1
Loading…
↗
9
9044510M50
Hose (l400)
Loading…
↗
11
9044516010
Hose
Loading…
↗
12
68T2441001
Fuel pump assembly
Loading…
↗
13
66M2441301
Body 2
Loading…
↗
14
6A02442101
Valve, check
Loading…
↗
15
6E71432500
Screw, pan head
Loading…
↗
16
66M2441101
Diaphragm
Loading…
↗
17
66M2442300
Spring, diaphragm
Loading…
↗
18
66M1313100
Plunger
Loading…
↗
19
66M2437400
Pin
Loading…
↗
20
66M2445400
Spring
Loading…
↗
21
66M2447101
Diaphragm
Loading…
↗
22
66M2444400
Screw
Loading…
↗
23
9538004600
Nut,hex
Loading…
↗
24
9759506630
Bolt, hexagon w/w deep recess
Loading…
↗
25
9321020M65
O-ring
Loading…
↗
26
6AU2431100
Pipe, fuel 1
Loading…
↗
28
9044713014
Tube
Loading…
↗
29
9046410M53
Clamp
Loading…
↗
30
68T2810000
AP
Tool kit
Loading…
↗
31
6DR2819970S0
UR (ES)
Manual,owner's
Loading…
↗
31
6DR2819970H0
UR (I)
Manual,owner's
Loading…
↗
31
6DR2819970D0
UR (NL)
Manual,owner's
Loading…
↗
31
6DR2819970G0
UR (D)
Manual,owner's
Loading…
↗
31
6DR2819970F0
UR (F)
Manual,owner's
Loading…
↗
31
6DR2819970E0
UR (E)
Manual,owner's
Loading…
↗
32
6DR2819980K0
UR (DK)
Manual,owner's
Loading…
↗
32
6DR2819980R0
UR (GR)
Manual,owner's
Loading…
↗
32
6DR2819980P0
UR (P)
Manual,owner's
Loading…
↗
32
6DR2819980N0
UR (N)
Manual,owner's
Loading…
↗
32
6DR2819980M0
UR (S)
Manual,owner's
Loading…
↗
32
6DR2819980L0
UR (SF)
Manual,owner's
Loading…
↗
