FT25BED (2002)
FUEL

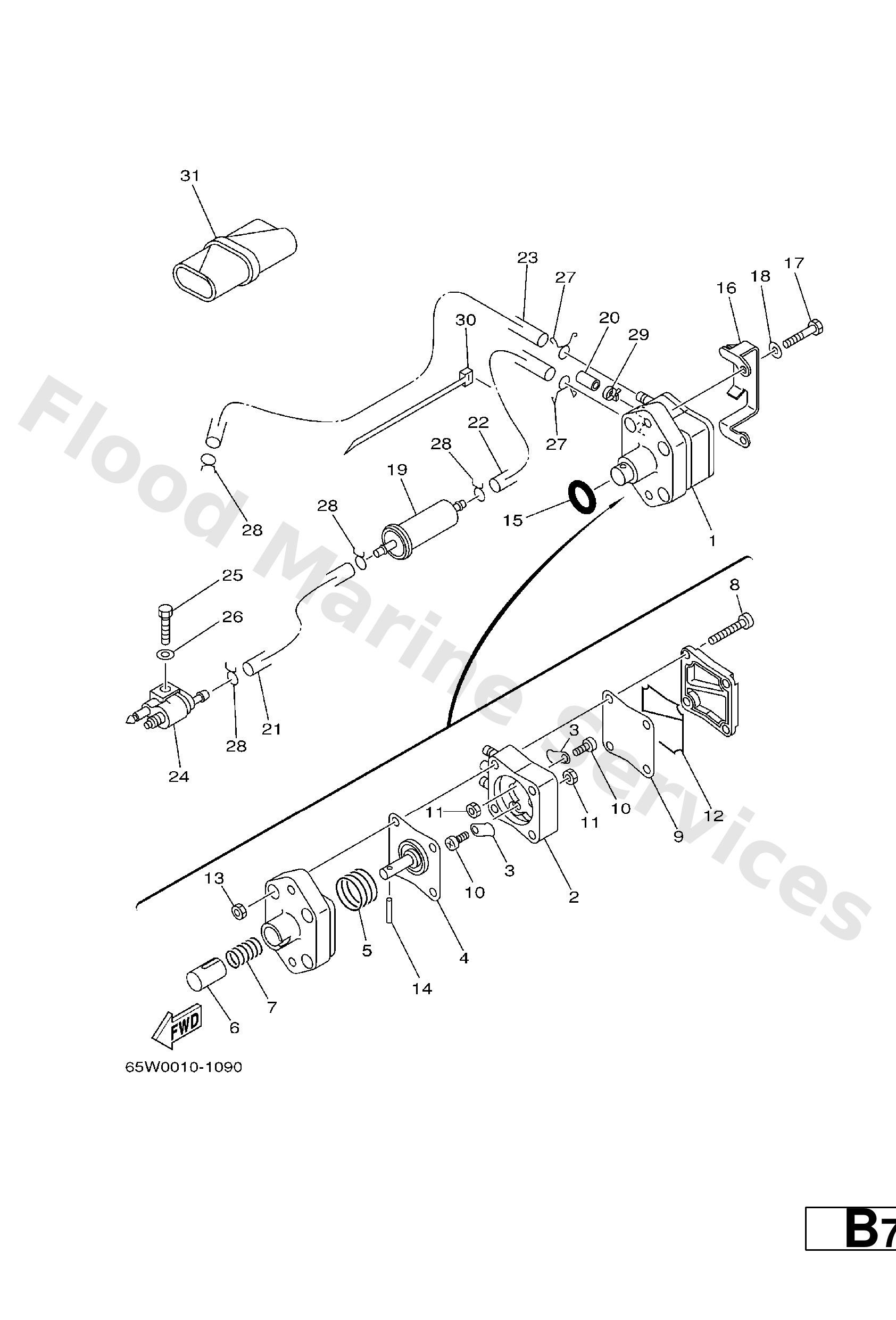

Diagram: FUEL
Parts List
Reference
Description
Price
1
62Y--24410--02
Fuel pump assembly
Loading…
↗
2
62Y2441300
Body 4
Loading…
↗
3
62Y--24421--01
Valve, check
Loading…
↗
4
62Y--24411--02
Diaphragm
Loading…
↗
5
62Y--24423--00
Spring, diaphragm
Loading…
↗
6
62Y--13131--01
Plunger
Loading…
↗
7
62Y--24454--00
Spring
Loading…
↗
8
62Y--24444--00
Screw
Loading…
↗
9
62Y--24471--00
Diaphragm
Loading…
↗
10
6A0--14325--00
Screw, pan head
Loading…
↗
11
95380--03600
Nut (6g8)
Loading…
↗
12
62Y--24452--00
Packing
Loading…
↗
13
95380--05600
Nut, hexagon (663)
Loading…
↗
14
62Y--24374--01
Pin
Loading…
↗
15
93210--24M79
O-ring
Loading…
↗
16
65W2447400
Cover
Loading…
↗
17
97095--06030
Bolt(jf7)
Loading…
↗
18
92995--06600
Washer, plain (646)
Loading…
↗
19
65W--24251--00
Strainer 1
Loading…
↗
20
65W--24481--00
Plug
Loading…
↗
21
90445--10M33
Hose (l1040)
Loading…
↗
22
90445--10M03
Hose (l400)
Loading…
↗
23
9044510M43
Hose (l400)
Loading…
↗
24
6G1--24304--02
Fuel pipe joint comp. 1
Loading…
↗
25
97095--06025
Bolt
Loading…
↗
27
90467--10M04
Clip, pipe 1 (6e9)
Loading…
↗
28
90467--09M03
Clip(6k8)
Loading…
↗
29
90465--11M10
Clamp
Loading…
↗
30
90465--13M18
Clamp
Loading…
↗
31
62Y--28100--00
Tool kit
Loading…
↗
