Yamaha Outboard Parts - FUEL - FT25BET (EU1 SPEC) (2006) | Flood Marine

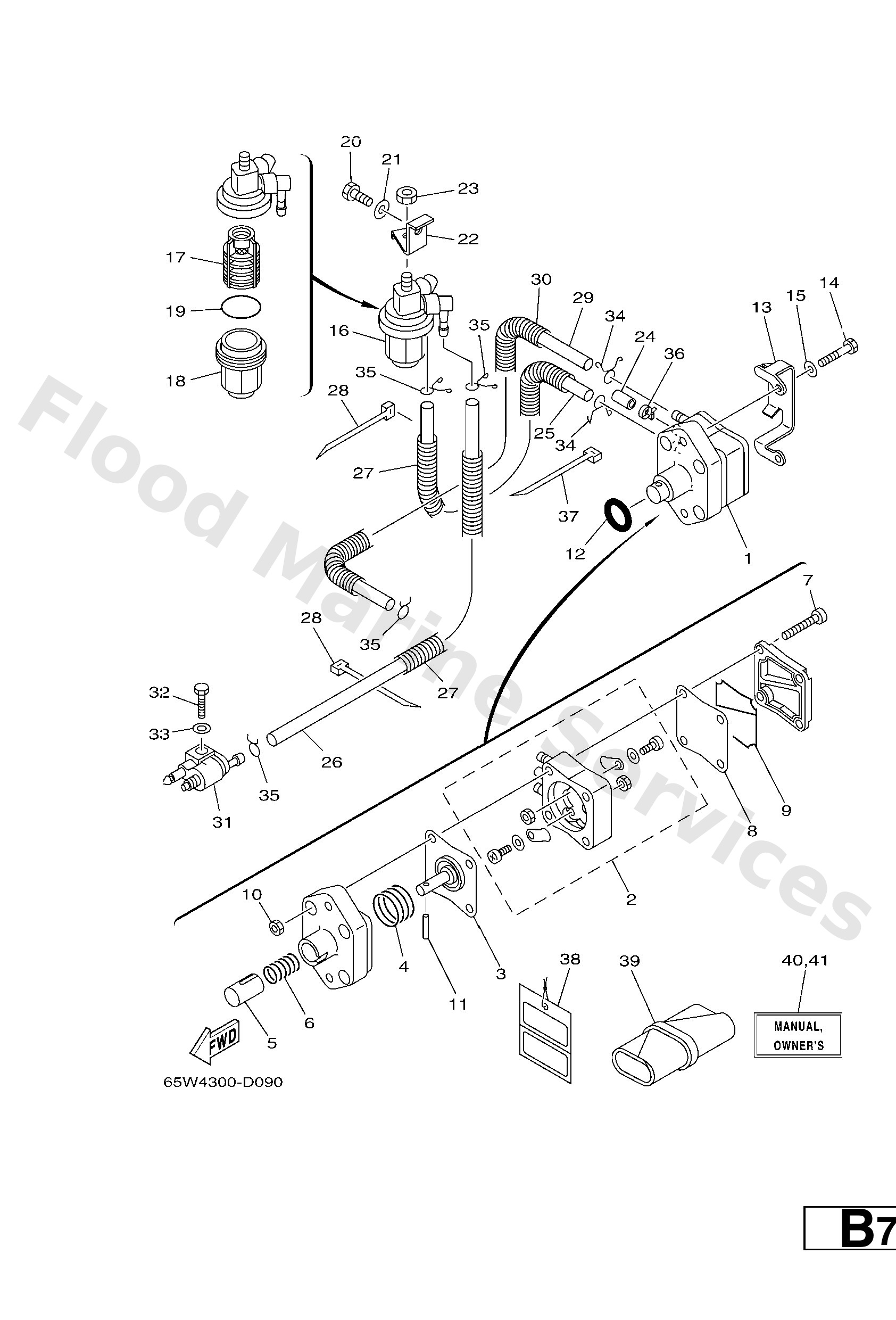

Diagram: FUEL

Diagram

Parts List

Reference
Description
Price


1
62Y2441003
Fuel pump assembly
Loading…

↗
2
62Y2441500
Body 4
Loading…

↗
3
62Y2441102
Diaphragm
Loading…

↗
4
62Y2442300
Spring, diaphragm
Loading…

↗
5
62Y1313101
Plunger
Loading…

↗
6
62Y2445400
Spring
Loading…

↗
7
62Y2444401
Screw
Loading…

↗
8
62Y2447100
Diaphragm
Loading…

↗
9
62Y2445200
Packing
Loading…

↗
10
9538005600
Nut, hexagon (663)
Loading…

↗
11
62Y2437401
Pin
Loading…

↗
12
9321024M79
O-ring
Loading…

↗
13
65W2447410
Cover
Loading…

↗
14
9709506030
Bolt(jf7)
Loading…

↗
15
9299506600
Washer, plain (646)
Loading…

↗
16
61N2456000
Filter assembly
Loading…

↗
17
61N2456300
Element, filter
Loading…

↗
18
61N2452100
Cup, filter
Loading…

↗
19
9321032738
O-ring(1wg)
Loading…

↗
20
9709508014
Bolt, hexagon deep recess
Loading…

↗
21
9299508600
Washer, plain (663)
Loading…

↗
22
6D52456600
Bracket, filter
Loading…

↗
23
9538008600
Nut (661)
Loading…

↗
24
65W2448100
Plug
Loading…

↗
25
9044510MG6
Hose (l200)
Loading…

↗
26
9044510M34
Hose (L550)
Loading…

↗
27
9044614M12
Hose(6tc)
Loading…

↗
28
9046511M10
Clamp
Loading…

↗
29
9044510MG7
Hose (l350)
Loading…

↗
30
9044614M51
Hose(6tc)
Loading…

↗
31
6G12430402
Fuel pipe joint comp. 1
Loading…

↗
32
9709506025
Bolt
Loading…

↗
34
9046710M04
Clip, pipe 1 (6e9)
Loading…

↗
35
9046709M17
Clip(6k8)
Loading…

↗
37
9046513M18
Clamp
Loading…

↗
38
61H2819R31
-
Loading…

↗
39
62Y2810000
Tool kit
Loading…

↗
40
65W281997BE0 UR (E)
O/m f20a/f25a/ft25b '06
Loading…

↗
40
65W281997BF0 UR (F)
O/m f20a/f25a/ft25b '06
Loading…

↗
40
65W281997BS0 UR (ES)
O/m f20a/f25a/ft25b '06
Loading…

↗
40
65W281997BG0 UR (D)
O/m f20a/f25a/ft25b '06
Loading…

↗
40
65W281997BD0 UR (NL)
O/m f20a/f25a/ft25b '06
Loading…

↗
40
65W281997BH0 UR (I)
O/m f20a/f25a/ft25b '06
Loading…

↗
41
65W281998CK0 UR (DK)
O/m f20a/f25a/ft25b '06
Loading…

↗
41
65W281998CR0 UR (GR)
O/m f20a/f25a/ft25b '06
Loading…

↗
41
65W281998CP0 UR (P)
O/m f20a/f25a/ft25b '06
Loading…

↗
41
65W281998CN0 UR (N)
O/m f20a/f25a/ft25b '06
Loading…

↗
41
65W281998CM0 UR (S)
O/m f20a/f25a/ft25b '06
Loading…

↗
41
65W281998CL0 UR (SF)
O/m f20a/f25a/ft25b '06
Loading…

↗
