Yamaha Outboard Parts - FUEL - FT50CET (2006) | Flood Marine

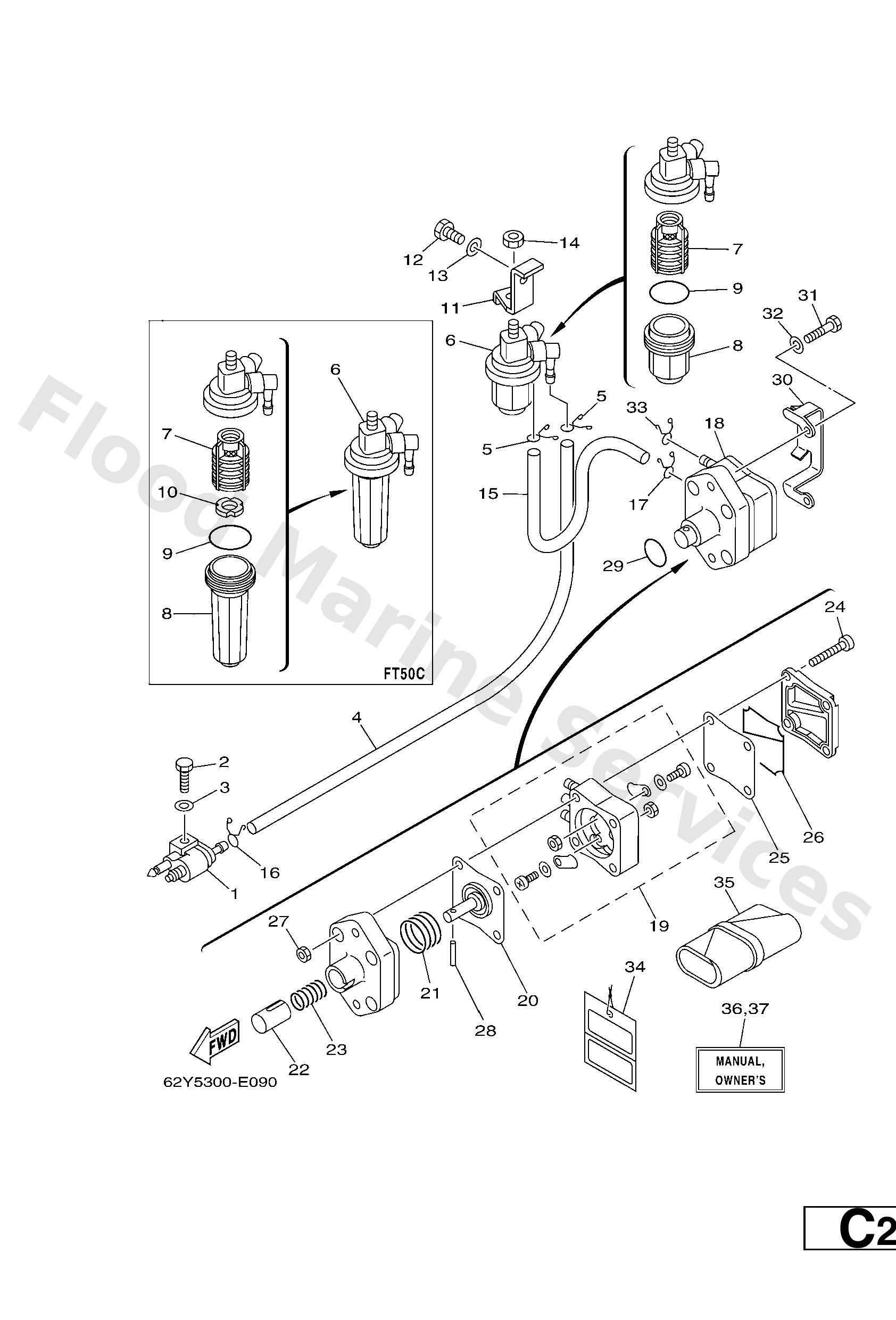

Diagram: FUEL

Diagram

Parts List

Reference
Description
Price


1
6G12430402
Fuel pipe joint comp. 1
Loading…

↗
2
9709506025
Bolt
Loading…

↗
3
9299506600
Washer, plain (646)
Loading…

↗
4
9044510020
Hose (l590)
Loading…

↗
5
9046709M17
Clip(6k8)
Loading…

↗
6
61N2456000 F50A
Filter assembly
Loading…

↗
6
64J2456000 FT50C
Filter assembly
Loading…

↗
7
61N2456300
Element, filter
Loading…

↗
8
61N2452100 FOR 61N-24560-00
Cup, filter
Loading…

↗
8
68V2452101 FOR 64J-24560-00
Cup, filter
Loading…

↗
9
9321032738
O-ring(1wg)
Loading…

↗
10
68V2446901 FOR 64J-24560-00
Float, water level
Loading…

↗
11
62Y2456600
Bracket, filter
Loading…

↗
12
9709508014
Bolt, hexagon deep recess
Loading…

↗
13
9299508600
Washer, plain (663)
Loading…

↗
14
9538008600
Nut (661)
Loading…

↗
15
9044510M48
Hose (l400)
Loading…

↗
17
9046710M04
Clip, pipe 1 (6e9)
Loading…

↗
18
62Y2441003
Fuel pump assembly
Loading…

↗
19
62Y2441500
Body 4
Loading…

↗
20
62Y2441102
Diaphragm
Loading…

↗
21
62Y2442300
Spring, diaphragm
Loading…

↗
22
62Y1313101
Plunger
Loading…

↗
23
62Y2445400
Spring
Loading…

↗
24
62Y2444401
Screw
Loading…

↗
25
62Y2447100
Diaphragm
Loading…

↗
26
62Y2445200
Packing
Loading…

↗
27
9538005600
Nut, hexagon (663)
Loading…

↗
28
62Y2437401
Pin
Loading…

↗
29
9321024M79
O-ring
Loading…

↗
30
65W2447400
Cover
Loading…

↗
31
9709506030
Bolt(jf7)
Loading…

↗
34
61H2819R31
-
Loading…

↗
35
62Y2810000
Tool kit
Loading…

↗
36
62Y281997GE0 UR (E)
Om ft50c/f50a '06
Loading…

↗
36
62Y281997GH0 UR (I)
Om ft50c/f50a '06
Loading…

↗
36
62Y281997GD0 UR (NL)
Om ft50c/f50a '06
Loading…

↗
36
62Y281997GG0 UR (D)
Om ft50c/f50a '06
Loading…

↗
36
62Y281997GS0 UR (ES)
Om ft50c/f50a '06
Loading…

↗
36
62Y281997GF0 UR (F)
Om ft50c/f50a '06
Loading…

↗
37
62Y281998HK0 UR (DK)
Om ft50c/f50a '06
Loading…

↗
37
62Y281998HR0 UR (GR)
Om ft50c/f50a '06
Loading…

↗
37
62Y281998HP0 UR (P)
Om ft50c/f50a '06
Loading…

↗
37
62Y281998HN0 UR (N)
Om ft50c/f50a '06
Loading…

↗
37
62Y281998HM0 UR (S)
Om ft50c/f50a '06
Loading…

↗
37
62Y281998HL0 UR (SF)
Om ft50c/f50a '06
Loading…

↗
