Yamaha Outboard Parts - FUEL - FT50GET (2009) | Flood Marine

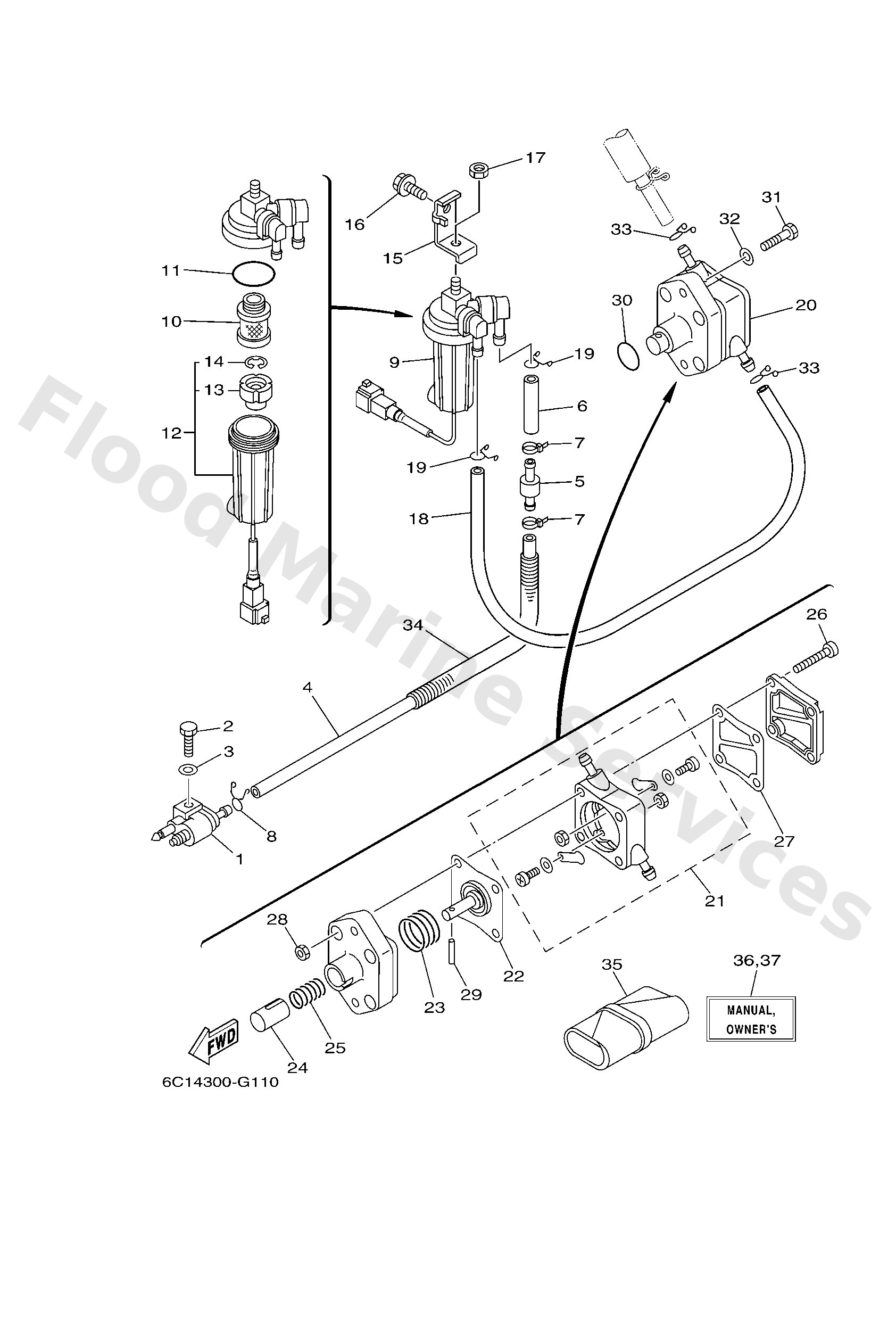

Diagram: FUEL

Diagram

Parts List

Reference
Description
Price


1
6G12430402
Fuel pipe joint comp. 1
Loading…

↗
2
9709506025
Bolt
Loading…

↗
3
9299506600
Washer, plain (646)
Loading…

↗
4
6C52247A00
Hose 1
Loading…

↗
5
67F2437700
Pipe, joint 3
Loading…

↗
6
9044513M02
Hose (l90)
Loading…

↗
7
9046511M10
Clamp
Loading…

↗
8
9046709M17
Clip(6k8)
Loading…

↗
9
6D82456000
Filter assembly
Loading…

↗
10
6D82456300
Element, filter (with tag)
Loading…

↗
11
6D82456400
Gasket
Loading…

↗
12
6D82456200
Cup, filter (with tag)
Loading…

↗
13
6D82446900
Float, water level
Loading…

↗
14
6D82451900
Clip
Loading…

↗
15
6C52456601
Bracket, Filter
Loading…

↗
16
9589508016
Bolt, flange deep recess
Loading…

↗
17
9538008600
Nut (661)
Loading…

↗
18
9044513M36
Hose (l350)
Loading…

↗
19
9046710M04
Clip, pipe 1 (6e9)
Loading…

↗
20
6C52441000
Fuel pump assembly
Loading…

↗
21
6C52441500
Body 4
Loading…

↗
22
62Y2441102
Diaphragm
Loading…

↗
23
62Y2442300
Spring, diaphragm
Loading…

↗
24
62Y1313100
Plunger
Loading…

↗
25
62Y2445400
Spring
Loading…

↗
26
62Y2444401
Screw
Loading…

↗
27
6C52447100
Diaphragm
Loading…

↗
28
9538005600
Nut, hexagon (663)
Loading…

↗
29
62Y2437401
Pin
Loading…

↗
30
9321024M79
O-ring
Loading…

↗
31
9709506030
Bolt(jf7)
Loading…

↗
34
9044614M62
Hose(64t)
Loading…

↗
35
6C52810000
Tool kit
Loading…

↗
36
6C12819975E0 UR (E)
O/m f50f/ft50g/f60c/ft60d/f40d
Loading…

↗
36
6C12819975H0 UR (I)
O/m f50f/ft50g/f60c/ft60d/f40d
Loading…

↗
36
6C12819975D0 UR (NL)
O/m f50f/ft50g/f60c/ft60d/f40d
Loading…

↗
36
6C12819975G0 UR (D)
O/m f50f/ft50g/f60c/ft60d/f40d
Loading…

↗
36
6C12819975S0 UR (ES)
O/m f50f/ft50g/f60c/ft60d/f40d
Loading…

↗
36
6C12819975F0 UR (F)
O/m f50f/ft50g/f60c/ft60d/f40d
Loading…

↗
37
6C12819985K0 UR (DK)
O/m f50f/ft50g/f60c/ft60d/f40d
Loading…

↗
37
6C12819985R0 UR (GR)
O/m f50f/ft50g/f60c/ft60d/f40d
Loading…

↗
37
6C12819985P0 UR (P)
O/m f50f/ft50g/f60c/ft60d/f40d
Loading…

↗
37
6C12819985N0 UR (N)
O/m f50f/ft50g/f60c/ft60d/f40d
Loading…

↗
37
6C12819985M0 UR (S)
O/m f50f/ft50g/f60c/ft60d/f40d
Loading…

↗
37
6C12819985L0 UR (SF)
O/m f50f/ft50g/f60c/ft60d/f40d
Loading…

↗
