Yamaha Outboard Parts - FUEL - FT60BET (2003) | Flood Marine

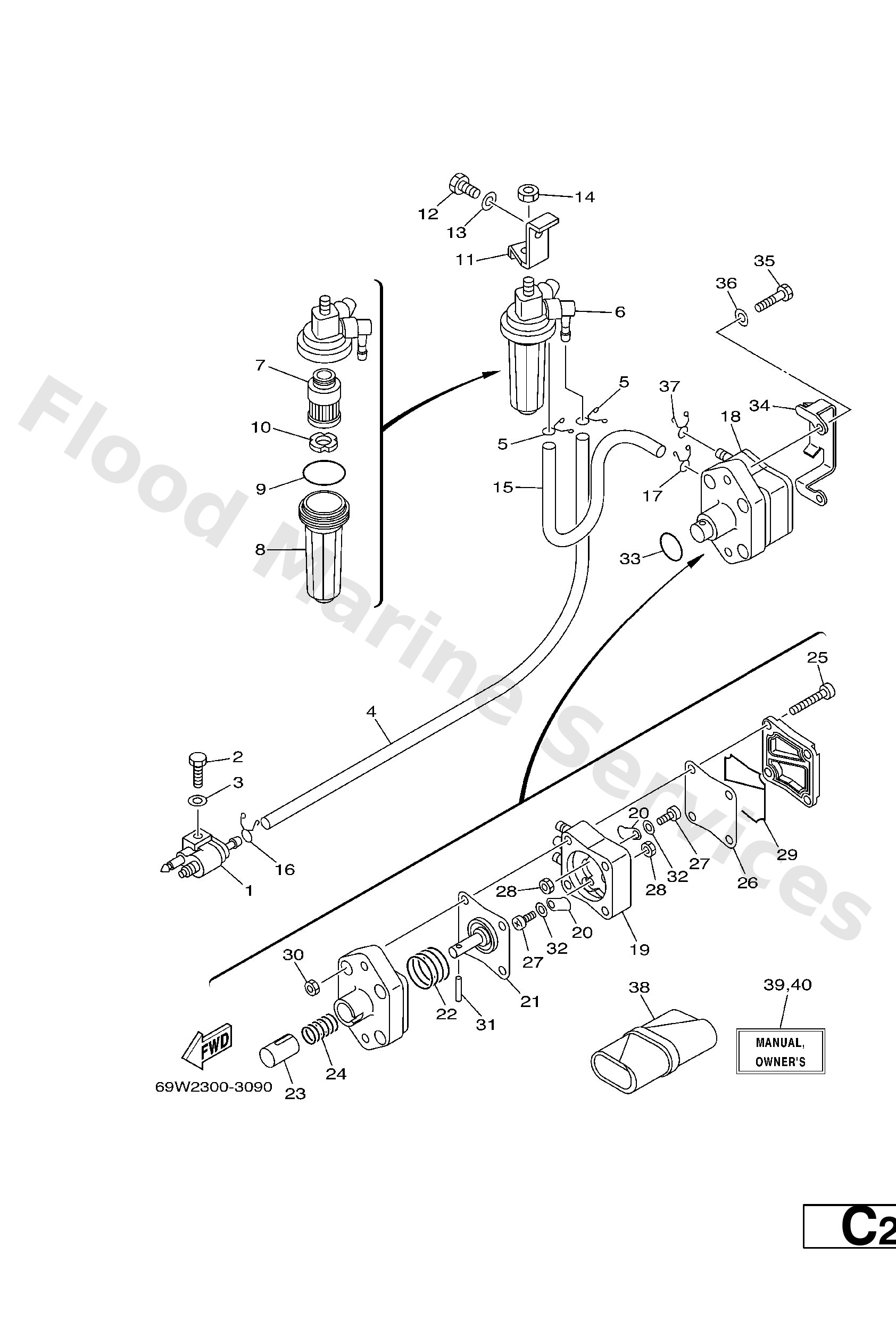

Diagram: FUEL

Diagram

Parts List

Reference
Description
Price


1
6G1−24304−02
Fuel pipe joint comp. 1
Loading…

↗
2
97095−06025
Bolt
Loading…

↗
3
92995−06600
Washer, plain (646)
Loading…

↗
4
90445−10020
Hose (l590)
Loading…

↗
5
90467−09M17
Clip(6k8)
Loading…

↗
6
64J−24560−00
Filter assembly
Loading…

↗
7
68V−24563−00
Element, filter
Loading…

↗
8
68V−24521−00
Cup, filter
Loading…

↗
9
93210−32738
O-ring(1wg)
Loading…

↗
10
68V−24469−00
Float, water level
Loading…

↗
11
62Y−24566−00
Bracket, filter
Loading…

↗
12
97095−08014
Bolt, hexagon deep recess
Loading…

↗
13
92995−08600
Washer, plain (663)
Loading…

↗
14
95380−08600
Nut (661)
Loading…

↗
15
90445−10M48
Hose (l400)
Loading…

↗
17
90467−10M04
Clip, pipe 1 (6e9)
Loading…

↗
18
62Y−24410−03
Fuel pump assembly
Loading…

↗
19
62Y−24413−01
Body 4
Loading…

↗
20
62Y−24421−01
Valve, check
Loading…

↗
21
62Y−24411−02
Diaphragm
Loading…

↗
22
62Y−24423−00
Spring, diaphragm
Loading…

↗
23
62Y−13131−01
Plunger
Loading…

↗
24
62Y−24454−00
Spring
Loading…

↗
25
62Y−24444−01
Screw
Loading…

↗
26
62Y−24471−00
Diaphragm
Loading…

↗
27
6A0−14325−00
Screw, pan head
Loading…

↗
28
95380−03600
Nut (6g8)
Loading…

↗
29
62Y−24452−00
Packing
Loading…

↗
30
95380−05600
Nut, hexagon (663)
Loading…

↗
31
62Y−24374−01
Pin
Loading…

↗
32
62Y−24422−00
Plate
Loading…

↗
33
93210−24M79
O-ring
Loading…

↗
34
65W−24474−00
Cover
Loading…

↗
35
97095−06030
Bolt(jf7)
Loading…

↗
38
62Y−28100−00
Tool kit
Loading…

↗
39
62Y−28199−7D−A0 UR (E,F,S)
Om f40c/f50a/ft50c/f60a/ft60b
Loading…

↗
39
62Y−28199−7D−B0 UR (D,NL,I)
Om f40c/f50a/ft50c/f60a/ft60b
Loading…

↗
40
62Y−28199−8D−A0 UR (DK,P,GR)
Om f40c/f50a/ft50c/f60a/ft60b
Loading…

↗
40
62Y−28199−8D−B0 UR (N,S,SS)
Om f40c/f50a/ft50c/f60a/ft60b
Loading…

↗
