FT60DET (2005)
FUEL

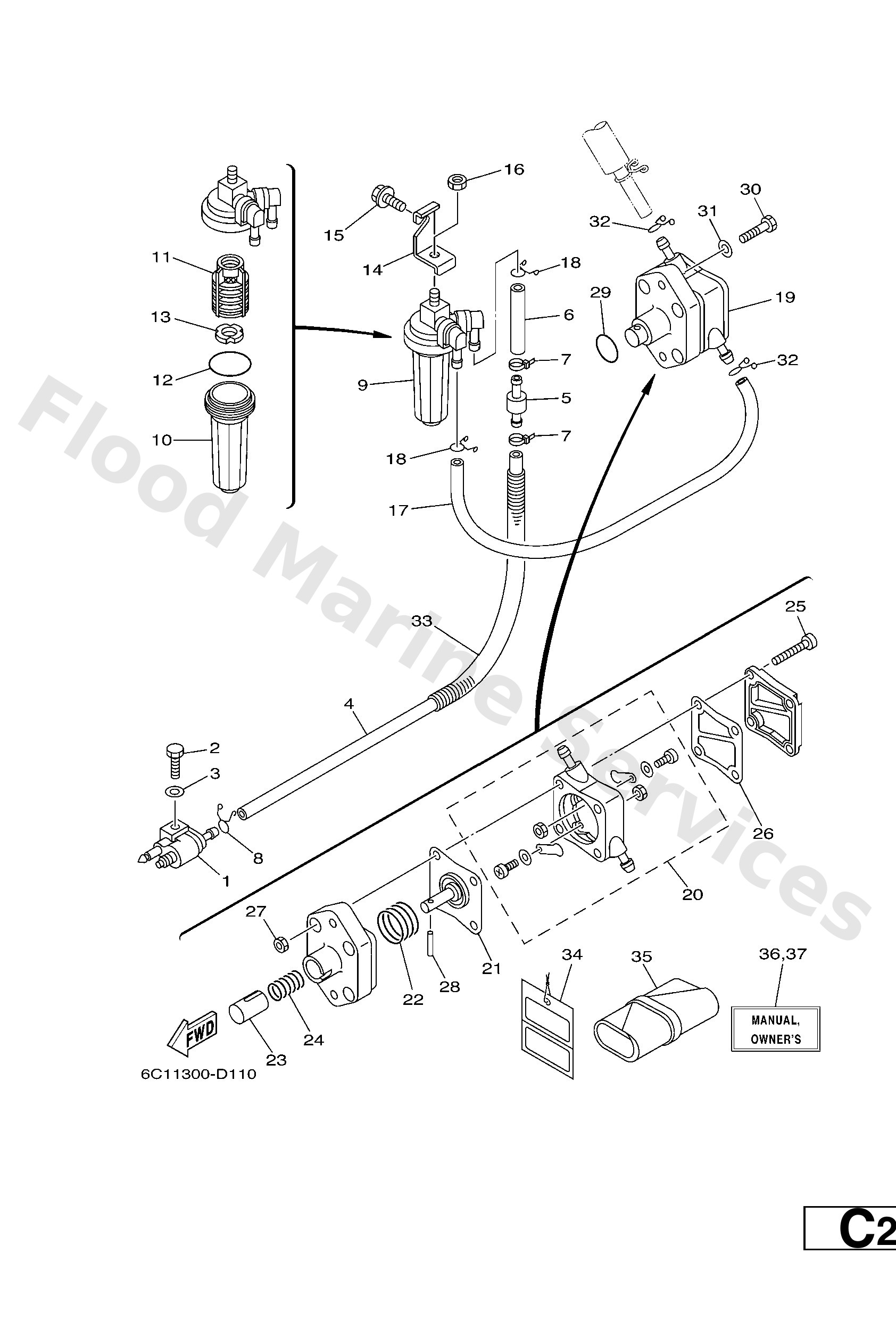

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
2
9709506025
Bolt
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
9044510020
Hose (l590)
Loading…
↗
5
67F2437700
Pipe, joint 3
Loading…
↗
6
9044513M14
Hose (l90)
Loading…
↗
7
9046511M10
Clamp
Loading…
↗
8
9046709M17
Clip(6k8)
Loading…
↗
9
68V2456001
Filter assembly
Loading…
↗
10
68V2452101
Cup, filter
Loading…
↗
11
68V2456300
Element, filter
Loading…
↗
12
9321032738
O-ring(1wg)
Loading…
↗
13
68V2446901
Float, water level
Loading…
↗
14
6C52456600
Bracket, Filter
Loading…
↗
15
9589508016
Bolt, flange deep recess
Loading…
↗
16
9538008600
Nut (661)
Loading…
↗
17
9044513M36
Hose (l350)
Loading…
↗
18
9046710M04
Clip, pipe 1 (6e9)
Loading…
↗
19
6C52441000
Fuel pump assembly
Loading…
↗
20
6C52441500
Body 4
Loading…
↗
21
62Y2441102
Diaphragm
Loading…
↗
22
62Y2442300
Spring, diaphragm
Loading…
↗
23
62Y1313100
Plunger
Loading…
↗
24
62Y2445400
Spring
Loading…
↗
25
62Y2444401
Screw
Loading…
↗
26
6C52447100
Diaphragm
Loading…
↗
27
9538005600
Nut, hexagon (663)
Loading…
↗
28
62Y2437401
Pin
Loading…
↗
29
9321024M79
O-ring
Loading…
↗
30
9709506030
Bolt(jf7)
Loading…
↗
33
9044614M62
Hose(64t)
Loading…
↗
34
61H2819R31
-
Loading…
↗
35
6C52810000
Tool kit
Loading…
↗
36
6C12819970E0
UR (E)
O/m f50f/ft50g/f60c/ft60d '05
Loading…
↗
36
6C12819970H0
UR (I)
O/m f50f/ft50g/f60c/ft60d '05
Loading…
↗
36
6C12819970D0
UR (NL)
O/m f50f/ft50g/f60c/ft60d '05
Loading…
↗
36
6C12819970G0
UR (D)
O/m f50f/ft50g/f60c/ft60d '05
Loading…
↗
36
6C12819970S0
UR (ES)
O/m f50f/ft50g/f60c/ft60d '05
Loading…
↗
36
6C12819970F0
UR (F)
O/m f50f/ft50g/f60c/ft60d '05
Loading…
↗
37
6C12819980K0
UR (DK)
O/m f50f/ft50g/f60c/ft60d '05
Loading…
↗
37
6C12819980R0
UR (GR)
O/m f50f/ft50g/f60c/ft60d '05
Loading…
↗
37
6C12819980P0
UR (P)
O/m f50f/ft50g/f60c/ft60d '05
Loading…
↗
37
6C12819980N0
UR (N)
O/m f50f/ft50g/f60c/ft60d '05
Loading…
↗
37
6C12819980M0
UR (S)
O/m f50f/ft50g/f60c/ft60d '05
Loading…
↗
37
6C12819980L0
UR (SF)
Manual,Owner's
