FT60GET (2021)
FUEL

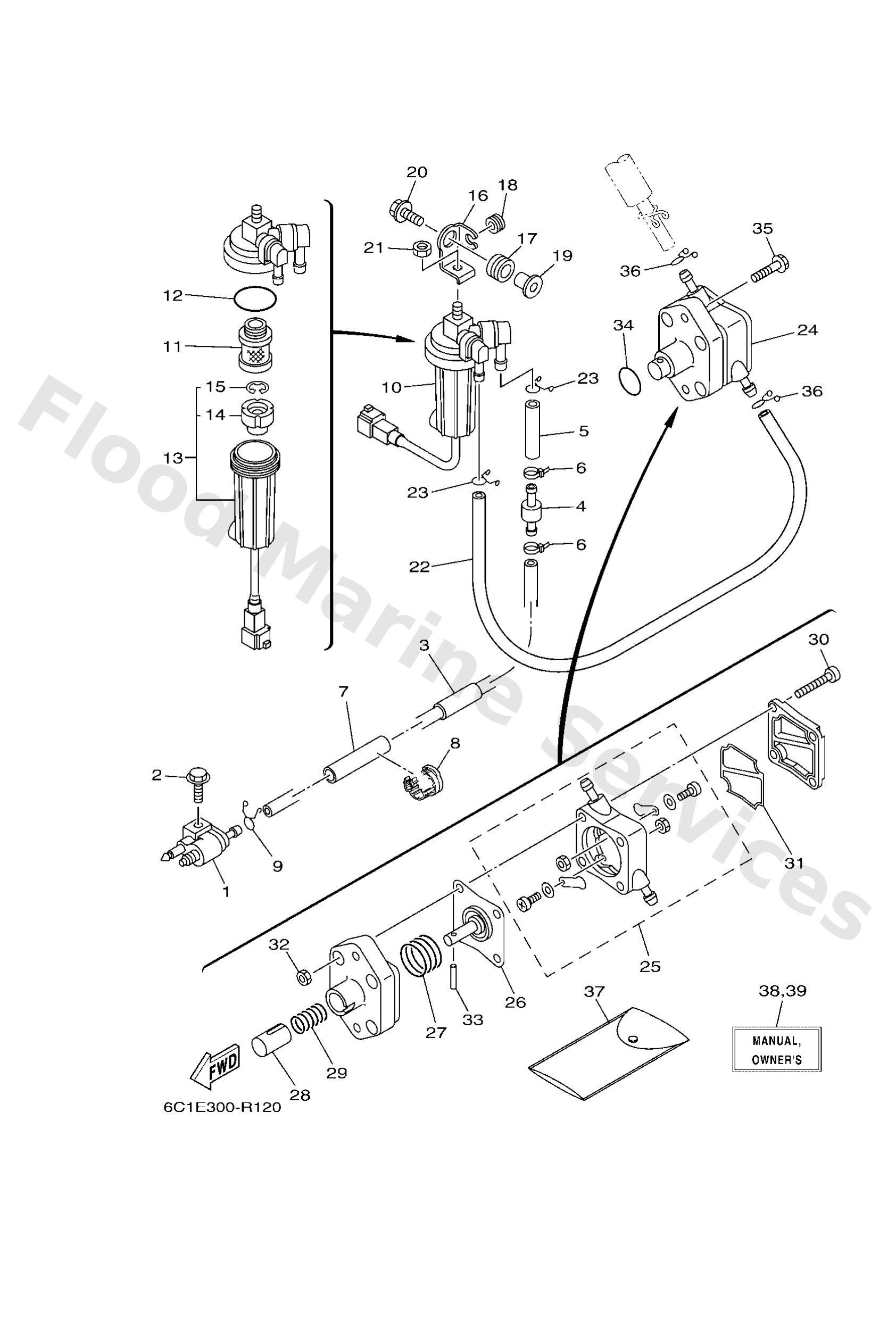

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430410
Fuel pipe joint comp. 1
Loading…
↗
2
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
3
6C52431310
Pipe 3
Loading…
↗
4
67F2437700
Pipe, joint 3
Loading…
↗
5
9044513M02
Hose (l90)
Loading…
↗
6
9046511M10
Clamp
Loading…
↗
7
9044613M11
Hose(6n6)
Loading…
↗
8
9046413227
Clamp
Loading…
↗
9
9046709M17
Clip(6k8)
Loading…
↗
10
6D82456001
Filter assembly
Loading…
↗
11
6D82456300
Element, filter (with tag)
Loading…
↗
12
6D82456400
Gasket
Loading…
↗
13
6D82456200
Cup, filter (with tag)
Loading…
↗
14
6D82446900
Float, water level
Loading…
↗
15
6D82451900
Clip
Loading…
↗
16
6C52456611
Bracket, filter
Loading…
↗
17
9048016013
Grommet
Loading…
↗
18
9048010M58
Grommet(6ta)
Loading…
↗
19
9038708095
Collar
Loading…
↗
20
9011908148
Bolt, with washer
Loading…
↗
21
9538008600
Nut (661)
Loading…
↗
22
9044513M36
Hose (l350)
Loading…
↗
23
9046710M04
Clip, pipe 1 (6e9)
Loading…
↗
24
6C52441000
Fuel pump assembly
Loading…
↗
25
6C52441500
Body 4
Loading…
↗
26
62Y2441102
Diaphragm
Loading…
↗
27
62Y2442300
Spring, diaphragm
Loading…
↗
28
62Y1313100
Plunger
Loading…
↗
29
62Y2445400
Spring
Loading…
↗
30
62Y2444401
Screw
Loading…
↗
31
6C52447100
Diaphragm
Loading…
↗
32
9538005600
Nut, hexagon (663)
Loading…
↗
33
62Y2437401
Pin
Loading…
↗
34
9321024M79
O-ring
Loading…
↗
35
97E9506530
Bolt, hexagon w/w deep recess
Loading…
↗
37
6C52810001
AP
Tool kit
Loading…
↗
38
6C1281997KE0
UR (E)
Manual,owner's
Loading…
↗
38
6C1281997KH0
UR (I)
Manual,owner's
Loading…
↗
38
6C1281997KD0
UR (NL)
Manual,owner's
Loading…
↗
38
6C1281997KG0
UR (D)
Manual,owner's
Loading…
↗
38
6C1281997KS0
UR (ES)
Manual,owner's
Loading…
↗
38
6C1281997KF0
UR (F)
Manual,owner's
Loading…
↗
39
6C1281998KK0
UR (DK)
Manual,owner's
Loading…
↗
39
6C1281998KR0
UR (GR)
Manual,owner's
Loading…
↗
39
6C1281998KP0
UR (P)
Manual,owner's
Loading…
↗
39
6C1281998KN0
UR (N)
Manual,owner's
Loading…
↗
39
6C1281998KM0
UR (S)
Manual,owner's
Loading…
↗
39
6C1281998KL0
UR (SF)
Manual,owner's
Loading…
↗
