FT8GMH (2021)
FUEL

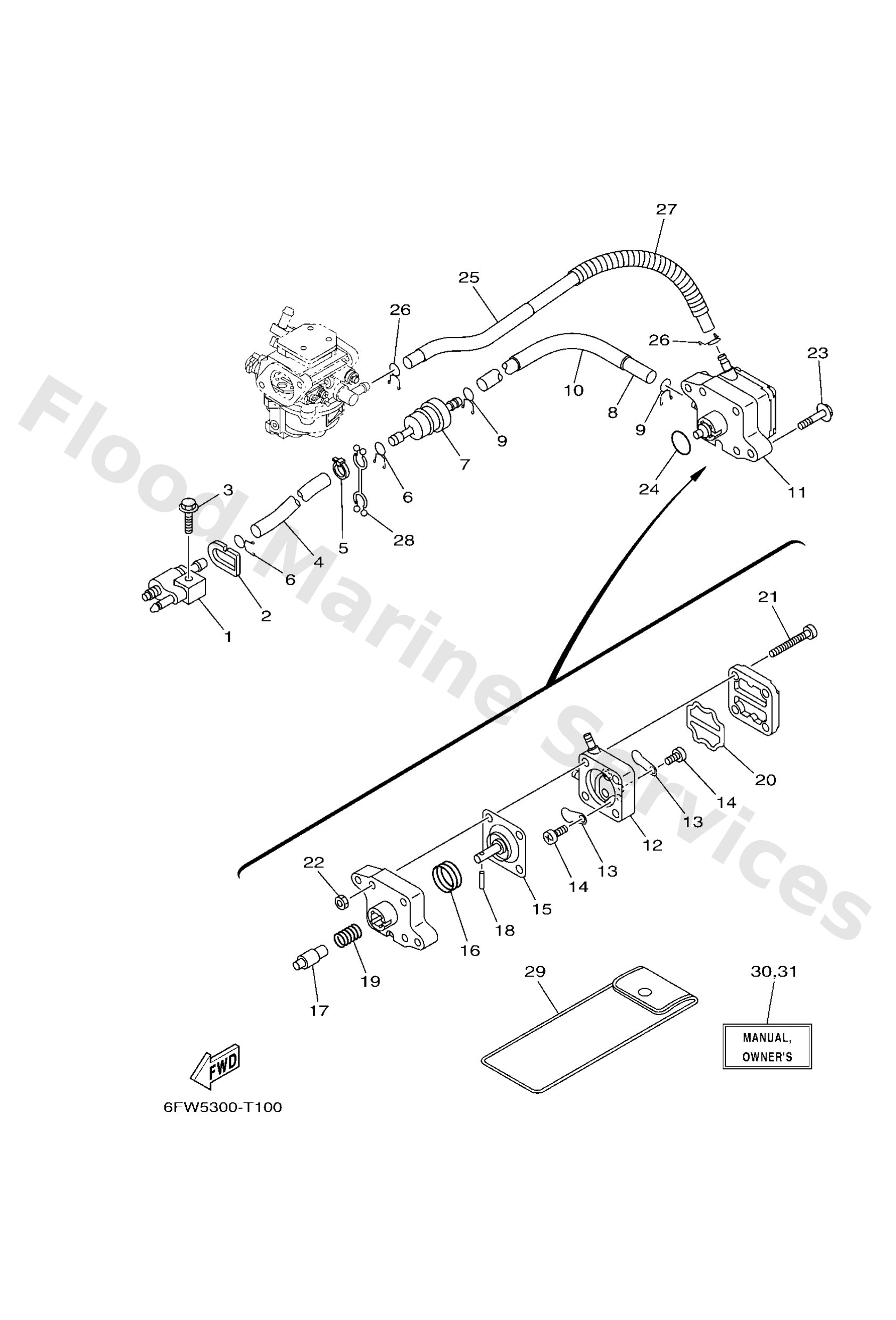

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430410
Fuel pipe joint comp. 1
Loading…
↗
2
61N2432901
Seal
Loading…
↗
3
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
4
9044510046
Hose
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
9046709M09
Clip(6k8)
Loading…
↗
7
68T2425101
Strainer 1
Loading…
↗
8
9044510M50
Hose (l400)
Loading…
↗
10
9044516010
Hose
Loading…
↗
11
68T2441001
Fuel pump assembly
Loading…
↗
12
66M2441301
Body 2
Loading…
↗
13
6A02442101
Valve, check
Loading…
↗
14
6E71432500
Screw, pan head
Loading…
↗
15
66M2441101
Diaphragm
Loading…
↗
16
66M2442300
Spring, diaphragm
Loading…
↗
17
66M1313100
Plunger
Loading…
↗
18
66M2437400
Pin
Loading…
↗
19
66M2445400
Spring
Loading…
↗
20
66M2447101
Diaphragm
Loading…
↗
21
66M2444400
Screw
Loading…
↗
22
9538004600
Nut,hex
Loading…
↗
23
97E9506630
Bolt, hexagon w/w deep recess
Loading…
↗
24
9321020M65
O-ring
Loading…
↗
25
6AU2431100
Pipe, fuel 1
Loading…
↗
27
9044713014
Tube
Loading…
↗
28
9046410M53
Clamp
Loading…
↗
29
68T2810002
AP
Tool kit
Loading…
↗
30
6FW2819975F0
UR (F)
Manual,owner's
Loading…
↗
30
6FW2819975S0
UR (ES)
Manual,owner's
Loading…
↗
30
6FW2819975G0
UR (D)
Manual,owner's
Loading…
↗
30
6FW2819975D0
UR (NL)
Manual,owner's
Loading…
↗
30
6FW2819975H0
UR (I)
Manual,owner's
Loading…
↗
30
6FW2819975E0
UR (E)
Manual,owner's
Loading…
↗
31
6FW2819985L0
UR (SF)
Manual,owner's
Loading…
↗
31
6FW2819985M0
UR (S)
Manual,owner's
Loading…
↗
31
6FW2819985N0
UR (N)
Manual,owner's
Loading…
↗
31
6FW2819985P0
UR (P)
Manual,owner's
Loading…
↗
31
6FW2819985R0
UR (GR)
Manual,owner's
Loading…
↗
31
6FW2819985K0
UR (DK)
Manual,owner's
Loading…
↗
