FT9.9DEP (2002)
FUEL

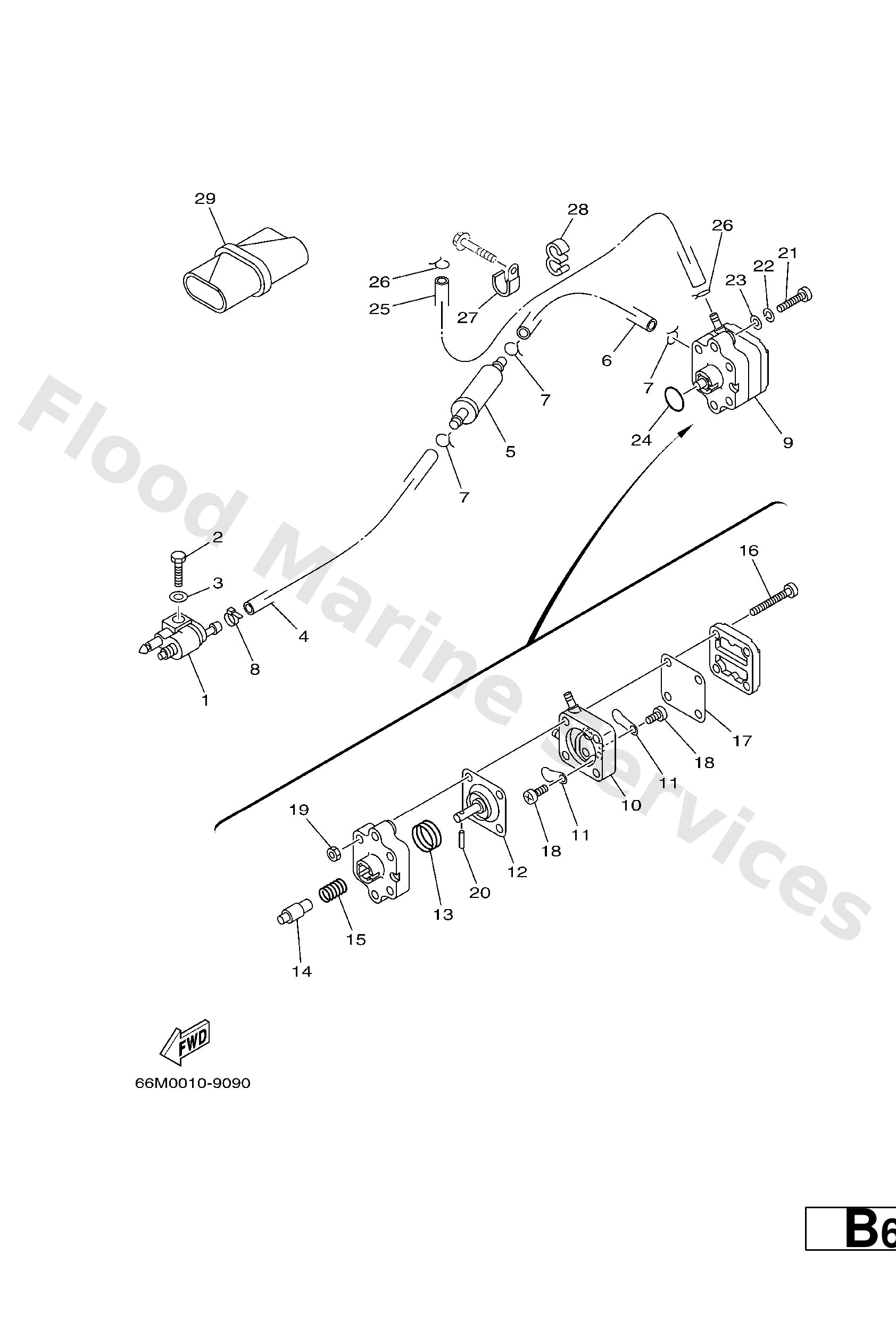

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G1−24304−02
Fuel pipe joint comp. 1
Loading…
↗
2
97095−06020
Bolt(7u8)
Loading…
↗
3
92995−06600
Washer, plain (646)
Loading…
↗
4
90445−10M40
Hose (l400)
Loading…
↗
5
65W−24251−00
Strainer 1
Loading…
↗
6
90445−10M20
Hose (l400)
Loading…
↗
7
90467−09M03
Clip(6k8)
Loading…
↗
8
90465−11M10
Clamp
Loading…
↗
9
66M−24410−10
Fuel pump assembly
Loading…
↗
10
66M−24413−01
Body 2
Loading…
↗
11
6A0−24421−01
Valve, check
Loading…
↗
12
66M−24411−10
Diaphragm
Loading…
↗
13
66M−24423−00
Spring, diaphragm
Loading…
↗
14
66M−13131−10
Plunger
Loading…
↗
15
66M−24454−00
Spring
Loading…
↗
16
66M−24444−00
Screw
Loading…
↗
17
66M−24471−00
Diaphragm
Loading…
↗
18
6E7−14325−00
Screw, pan head
Loading…
↗
19
95380−05600
Nut, hexagon (663)
Loading…
↗
20
66M−24374−00
Pin
Loading…
↗
21
97880−06030
Screw, pan head(6e0)
Loading…
↗
22
92990−06100
Washer(6a1)
Loading…
↗
23
92990−06600
Washer, plain (646)
Loading…
↗
24
93210−20M65
O-ring
Loading…
↗
25
90445−10M93
Hose (l400)
Loading…
↗
27
90465−06M86
Clamp
Loading…
↗
28
90464−09M31
Clamp(6m7)
Loading…
↗
29
62Y−28100−00
Tool kit
Loading…
↗
