Yamaha Outboard Parts - FUEL - FT9.9DMH (2005) | Flood Marine

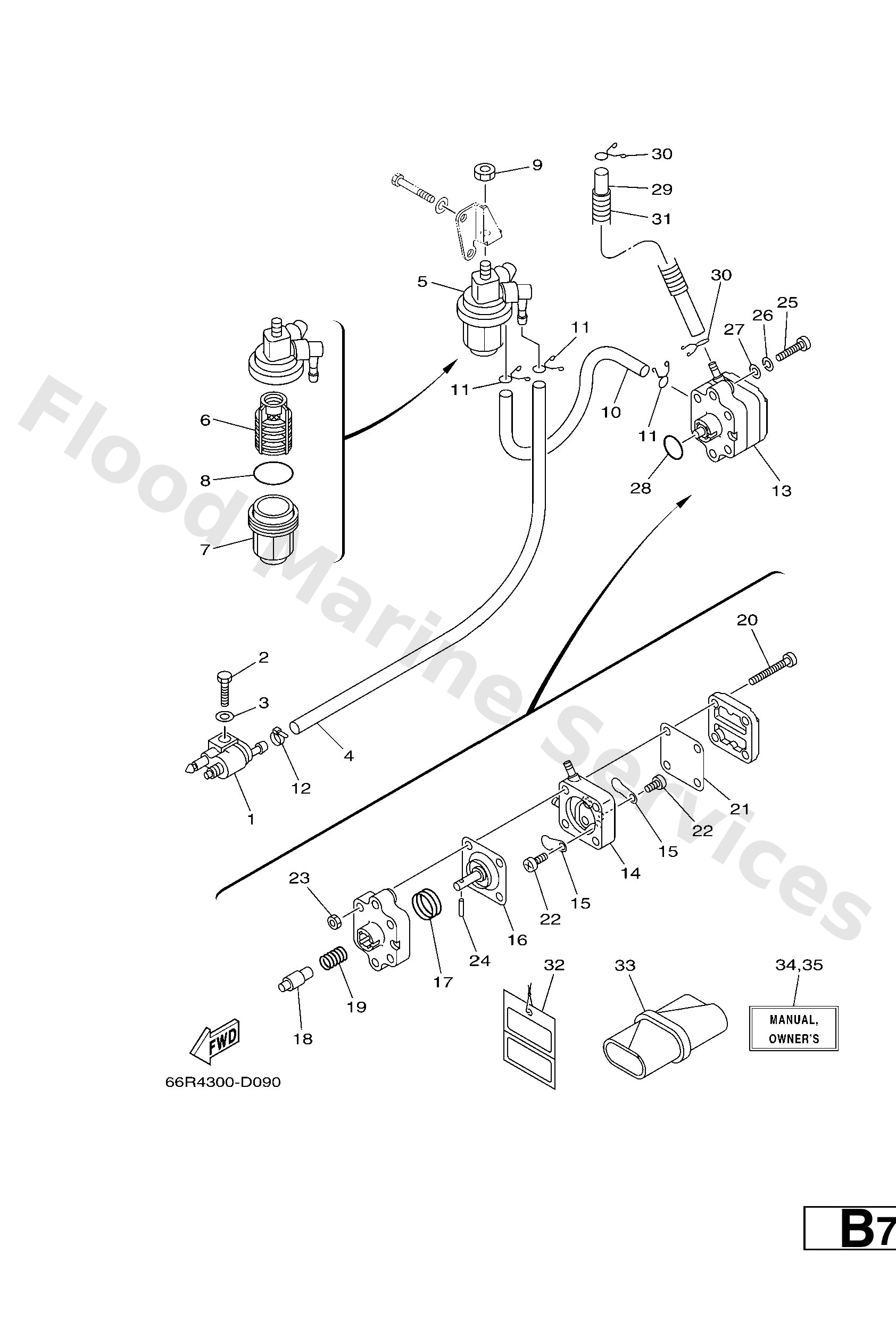

Diagram: FUEL

Diagram

Parts List

Reference
Description
Price


1
6G12430402
Fuel pipe joint comp. 1
Loading…

↗
2
9709506020
Bolt(7u8)
Loading…

↗
3
9299506600
Washer, plain (646)
Loading…

↗
4
9044510M19
Hose (l590)
Loading…

↗
5
61N2456000
Filter assembly
Loading…

↗
6
61N2456300
Element, filter
Loading…

↗
7
61N2452100
Cup, filter
Loading…

↗
8
9321032738
O-ring(1wg)
Loading…

↗
9
9538008600
Nut (661)
Loading…

↗
10
9044510M15
Hose (l400)
Loading…

↗
11
9046709M17
Clip(6k8)
Loading…

↗
12
9046511M10
Clamp
Loading…

↗
13
66M2441010
Fuel pump assembly
Loading…

↗
14
66M2441301
Body 2
Loading…

↗
15
6A02442101
Valve, check
Loading…

↗
16
66M2441110
Diaphragm
Loading…

↗
17
66M2442300
Spring, diaphragm
Loading…

↗
18
66M1313110
Plunger
Loading…

↗
19
66M2445400
Spring
Loading…

↗
20
66M2444400
Screw
Loading…

↗
21
66M2447100
Diaphragm
Loading…

↗
22
6E71432500
Screw, pan head
Loading…

↗
23
9538005600
Nut, hexagon (663)
Loading…

↗
24
66M2437400
Pin
Loading…

↗
25
9788006030
Screw, pan head(6e0)
Loading…

↗
26
9299006100
Washer(6a1)
Loading…

↗
27
9299006600
Washer, plain (646)
Loading…

↗
28
9321020M65
O-ring
Loading…

↗
29
9044510M93
Hose (l400)
Loading…

↗
31
9044614M51
Hose(6tc)
Loading…

↗
32
61H2819R31
-
Loading…

↗
33
62Y2810000
Tool kit
Loading…

↗
34
66M2819979F0 UR (F)
F15a/f9.9c/ft9.9d/f13.5a
Loading…

↗
34
66M2819979H0 UR (I)
F15a/f9.9c/ft9.9d/f13.5a
Loading…

↗
34
66M2819979D0 UR (NL)
F15a/f9.9c/ft9.9d/f13.5a
Loading…

↗
34
66M2819979G0 UR (D)
F15a/f9.9c/ft9.9d/f13.5a
Loading…

↗
34
66M2819979S0 UR (ES)
F15a/f9.9c/ft9.9d/f13.5a
Loading…

↗
34
66M2819979E0 UR (E)
F15a/f9.9c/ft9.9d/f13.5a
Loading…

↗
35
66M281998AK0 UR (DK)
F15a/f9.9c/ft9.9d/f13.5a
Loading…

↗
35
66M281998AR0 UR (GR)
F15a/f9.9c/ft9.9d/f13.5a
Loading…

↗
35
66M281998AP0 UR (P)
F15a/f9.9c/ft9.9d/f13.5a
Loading…

↗
35
66M281998AN0 UR (N)
F15a/f9.9c/ft9.9d/f13.5a
Loading…

↗
35
66M281998AM0 UR (S)
F15a/f9.9c/ft9.9d/f13.5a
Loading…

↗
35
66M281998AL0 UR (SF)
F15a/f9.9c/ft9.9d/f13.5a
Loading…

↗
