LZ200NETO (2007)
FUEL

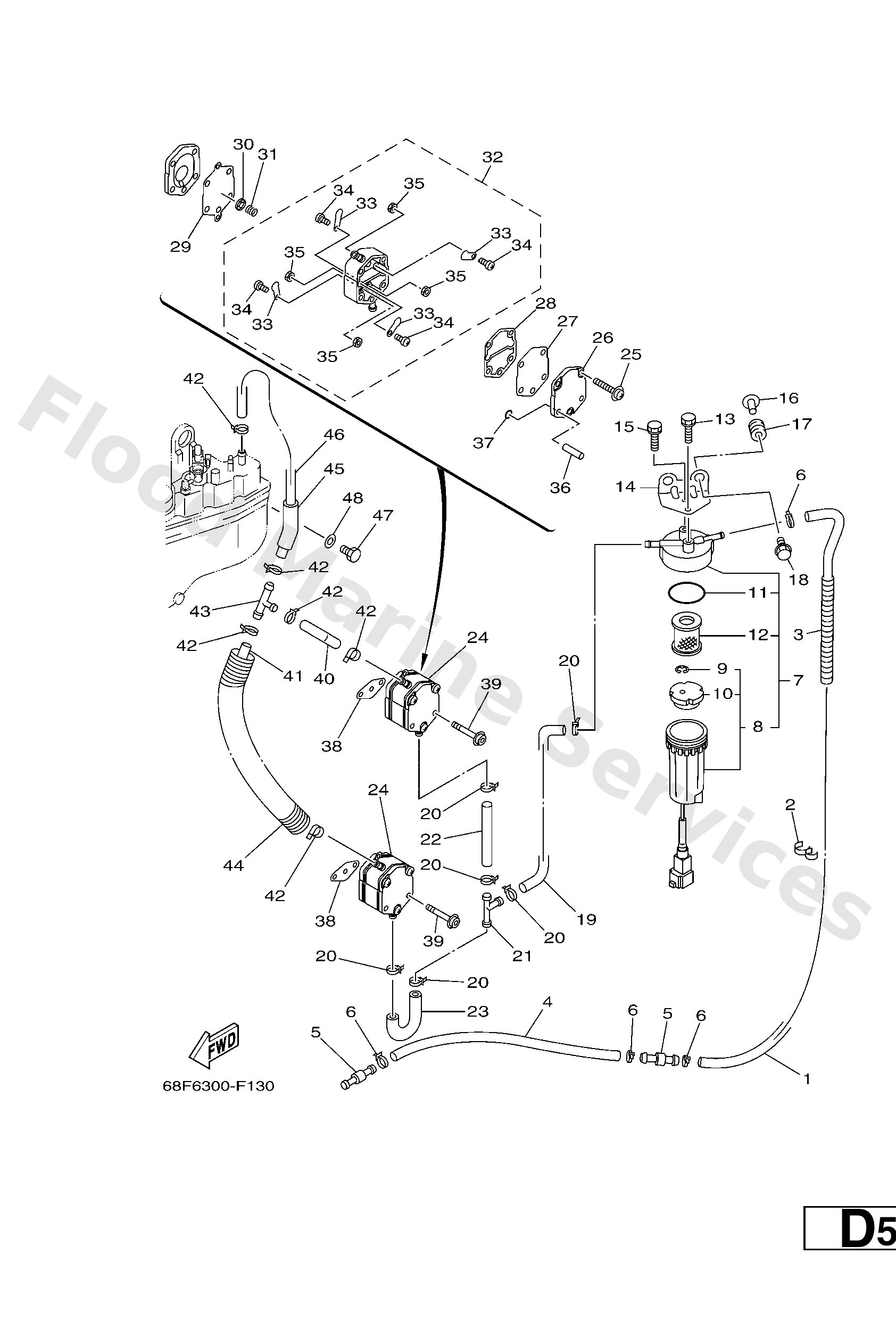

Diagram: FUEL
Parts List
Reference
Description
Price
1
61A2431300
Pipe 3
Loading…
↗
2
9046413M34
Clamp(6r3)
Loading…
↗
3
9044713012
Hose, with spring
Loading…
↗
4
9044513M17
Hose(l2700)
Loading…
↗
5
6R32437700
Pipe, joint 3
Loading…
↗
6
9046511M10
Clamp
Loading…
↗
7
6P32456010
Filter assembly
Loading…
↗
8
6P32456210
Cup, filter (with tag)
Loading…
↗
9
6P32451900
Clip
Loading…
↗
10
6P32446900
Float, water level
Loading…
↗
11
6P32456400
Gasket
Loading…
↗
12
6P32456300
Element, filter (with tag)
Loading…
↗
13
9759506514
Bolt(gj3)
Loading…
↗
14
68F2456600
Bracket, filter
Loading…
↗
16
9038706M60
Collar (6h3)
Loading…
↗
17
9048010M23
Grommet(6k7)
Loading…
↗
18
9011906M88
Bolt, with washer
Loading…
↗
19
68F2431100
Pipe, Fuel 1
Loading…
↗
21
6E52437800
Pipe, joint 3
Loading…
↗
22
9044513M31
Hose (L85)
Loading…
↗
23
67H2431100
Pipe, fuel 1
Loading…
↗
24
6E52441004
Fuel pump assembly
Loading…
↗
25
6E52444401
Screw
Loading…
↗
26
6E52441301
Body 2
Loading…
↗
27
6E52447101
Diaphragm
Loading…
↗
28
6E52443501
Gasket, body 2
Loading…
↗
29
6E52441101
Diaphragm
Loading…
↗
30
6482442400
Seat,spring
Loading…
↗
31
6E52442300
Spring, diaphragm
Loading…
↗
32
6E52441211
Body 1
Loading…
↗
33
6A02442101
Valve, check
Loading…
↗
34
6A01432500
Screw, pan head
Loading…
↗
35
9538003600
Nut (6g8)
Loading…
↗
36
6E52449200
Bush, fulel pump
Loading…
↗
37
6E52448600
O-ring
Loading…
↗
38
65024431A0
Gasket,fuel pump
Loading…
↗
39
9011006128
Bolt, hexagon socket head
Loading…
↗
40
61U2431600
Pipe 6
Loading…
↗
41
6E52431300
Pipe 3
Loading…
↗
44
6H18355700
Tube
Loading…
↗
45
9044615M07
Hose(6g4)
Loading…
↗
46
9044513M12
Hose (L235)
Loading…
↗
47
9709506012
Bolt(gh1)
Loading…
↗
48
9299506600
Washer, plain (646)
Loading…
↗
