Z250FETO (2006)
FUEL

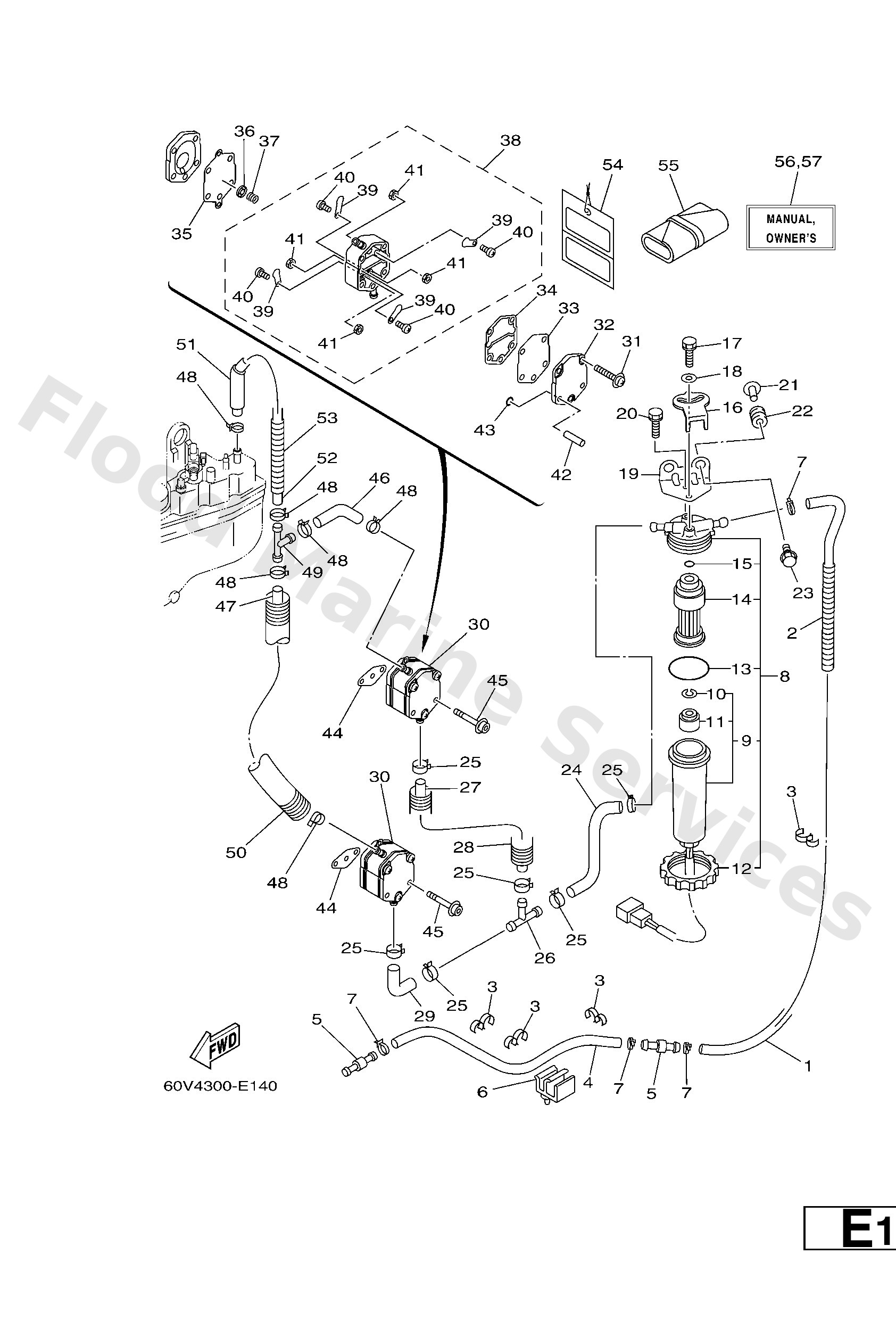

Diagram: FUEL
Parts List
Reference
Description
Price
1
61A2431300
Pipe 3
Loading…
↗
2
9044713008
Hose, with spring
Loading…
↗
3
9046413M34
Clamp(6r3)
Loading…
↗
4
9044513M17
Hose(l2700)
Loading…
↗
5
6R32437700
Pipe, joint 3
Loading…
↗
6
6E58259400
Clamp
Loading…
↗
7
9046511M10
Clamp
Loading…
↗
8
68F2456010
Filter assembly
Loading…
↗
9
68F2456210
Cup, filter
Loading…
↗
10
68F2451910
Clip
Loading…
↗
11
68F2446910
Float, Water Level
Loading…
↗
12
65L2453101
Nut
Loading…
↗
13
61A2456400
O-ring
Loading…
↗
14
68F2456310
Element, filter
Loading…
↗
15
65L2456400
Gasket
Loading…
↗
16
60H2455800
Holder, filter
Loading…
↗
17
9759506416
Bolt, with washer(62x)
Loading…
↗
18
9020106068
Washer,plate (6k8)
Loading…
↗
19
68F2456600
Bracket, filter
Loading…
↗
20
9759506514
Bolt(gj3)
Loading…
↗
21
9038706M60
Collar (6h3)
Loading…
↗
22
9048010M23
Grommet(6k7)
Loading…
↗
23
9011906M88
Bolt, with washer
Loading…
↗
24
68F2431100
Pipe, Fuel 1
Loading…
↗
26
6E52437800
Pipe, joint 3
Loading…
↗
27
6G52431500
Pipe 5
Loading…
↗
28
9044719004
Hose, with spring
Loading…
↗
29
6E52431500
Pipe 5
Loading…
↗
30
6E52441004
Fuel pump assembly
Loading…
↗
31
6E52444401
Screw
Loading…
↗
32
6E52441301
Body 2
Loading…
↗
33
6E52447101
Diaphragm
Loading…
↗
34
6E52443501
Gasket, body 2
Loading…
↗
35
6E52441101
Diaphragm
Loading…
↗
36
6482442400
Seat,spring
Loading…
↗
37
6E52442300
Spring, diaphragm
Loading…
↗
38
6E52441211
Body 1
Loading…
↗
39
6A02442101
Valve, check
Loading…
↗
40
6A01432500
Screw, pan head
Loading…
↗
41
9538003600
Nut (6g8)
Loading…
↗
42
6E52449200
Bush, fulel pump
Loading…
↗
43
6E52448600
O-ring
Loading…
↗
44
65024431A0
Gasket,fuel pump
Loading…
↗
45
9011006128
Bolt, hexagon socket head
Loading…
↗
46
6G52431610
Pipe 6
Loading…
↗
47
6E52431300
Pipe 3
Loading…
↗
50
9044715002
Hose, With Spring
Loading…
↗
51
9044615M07
Hose(6g4)
Loading…
↗
52
9044513M12
Hose (L235)
Loading…
↗
54
61H2819R31
-
Loading…
↗
55
68F2810000
Tool kit
Loading…
↗
56
60V2819975E0
UR (E)
O/m z250f '06
Loading…
↗
56
60V2819975F0
UR (F)
O/m z250f '06
Loading…
↗
56
60V2819975S0
UR (ES)
O/m z250f '06
Loading…
↗
56
60V2819975G0
UR (D)
O/m z250f '06
Loading…
↗
56
60V2819975D0
UR (NL)
O/m z250f '06
Loading…
↗
56
60V2819975H0
UR (I)
O/m z250f '06
Loading…
↗
57
60V2819985K0
UR (DK)
O/m z250f '06
Loading…
↗
57
60V2819985R0
UR (GR)
O/m z250f '06
Loading…
↗
57
60V2819985P0
UR (P)
O/m z250f '06
Loading…
↗
57
60V2819985N0
UR (N)
O/m z250f '06
Loading…
↗
57
60V2819985M0
UR (S)
O/m z250f '06
Loading…
↗
57
60V2819985L0
UR (SF)
O/m z250f '06
Loading…
↗
