115CETO (2013)
FUEL 1

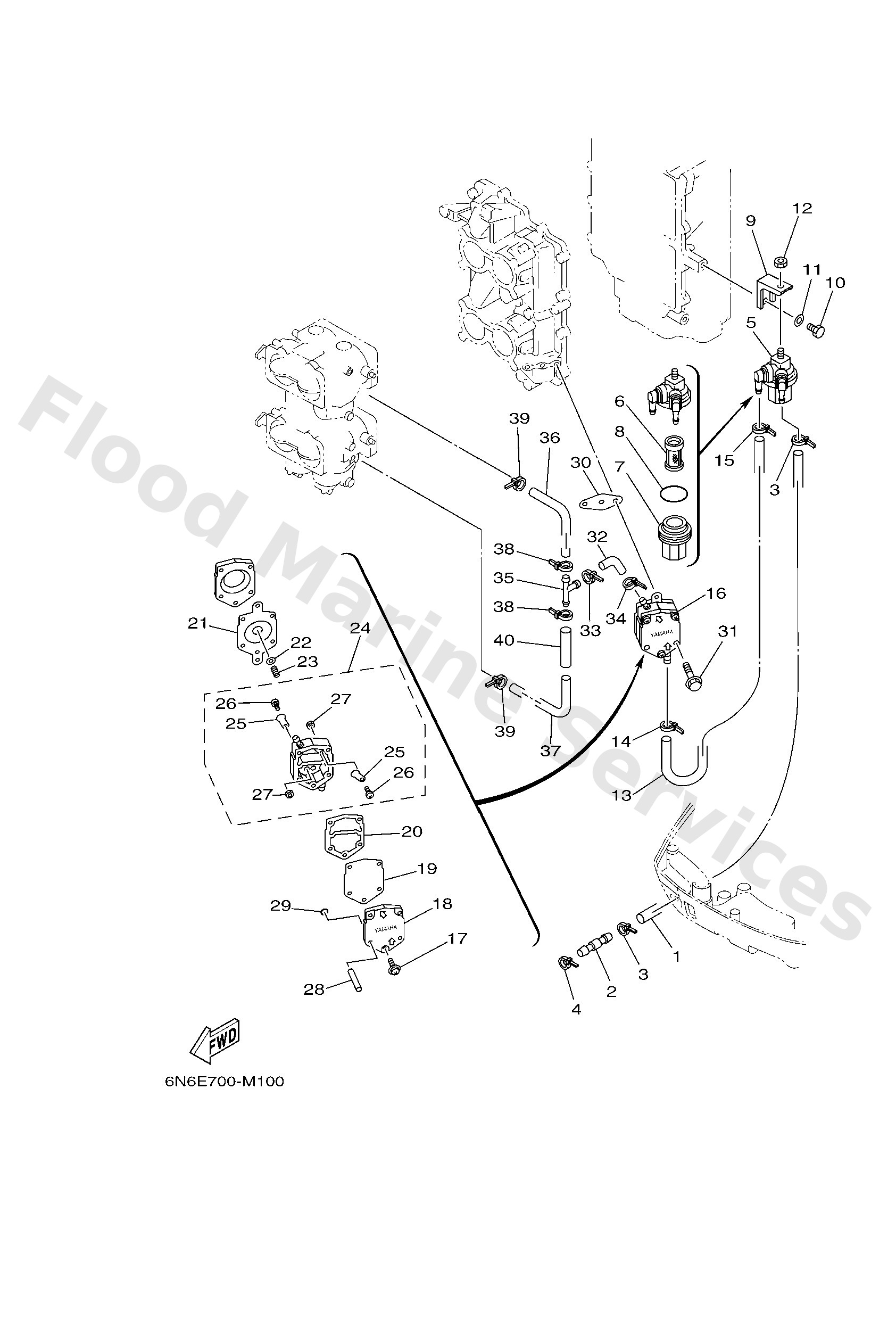

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6R32431320
Pipe 3
Loading…
↗
2
6R32437700
Pipe, joint 3
Loading…
↗
3
9046511M10
Clamp
Loading…
↗
5
6R32456000
Filter assembly
Loading…
↗
6
6R32456300
Element, filter
Loading…
↗
7
61N2452100
Cup, filter
Loading…
↗
8
9321032738
O-ring(1wg)
Loading…
↗
9
6E52456600
Bracket, filter
Loading…
↗
10
9701306014
Bolt(gj3)
Loading…
↗
11
9290306600
Washer, plain (646)
Loading…
↗
12
9538008600
Nut (661)
Loading…
↗
13
6E52431400
Pipe 4
Loading…
↗
16
6E52441004
Fuel pump assembly
Loading…
↗
17
6E52444401
Screw
Loading…
↗
18
6E52441301
Body 2
Loading…
↗
19
6E52447101
Diaphragm
Loading…
↗
20
6E52443501
Gasket, body 2
Loading…
↗
21
6E52441101
Diaphragm
Loading…
↗
22
6482442400
Seat,spring
Loading…
↗
23
6E52442300
Spring, diaphragm
Loading…
↗
24
6E52441211
Body 1
Loading…
↗
25
6A02442101
Valve, check
Loading…
↗
26
6A01432500
Screw, pan head
Loading…
↗
27
9538003600
Nut (6g8)
Loading…
↗
28
6E52449200
Bush, fulel pump
Loading…
↗
29
6E52448600
O-ring
Loading…
↗
30
65024431A0
Gasket,fuel pump
Loading…
↗
31
9759506550
Bolt, hexagon w/w deep recess
Loading…
↗
32
6G52431610
Pipe 6
Loading…
↗
35
6E52437610
Pipe, joint 1
Loading…
↗
36
6G52431810
Hose (l90)
Loading…
↗
37
6G52431910
Pipe 9
Loading…
↗
40
9044615M07
Hose(6g4)
Loading…
↗
