200FETO (2002)
FUEL 1

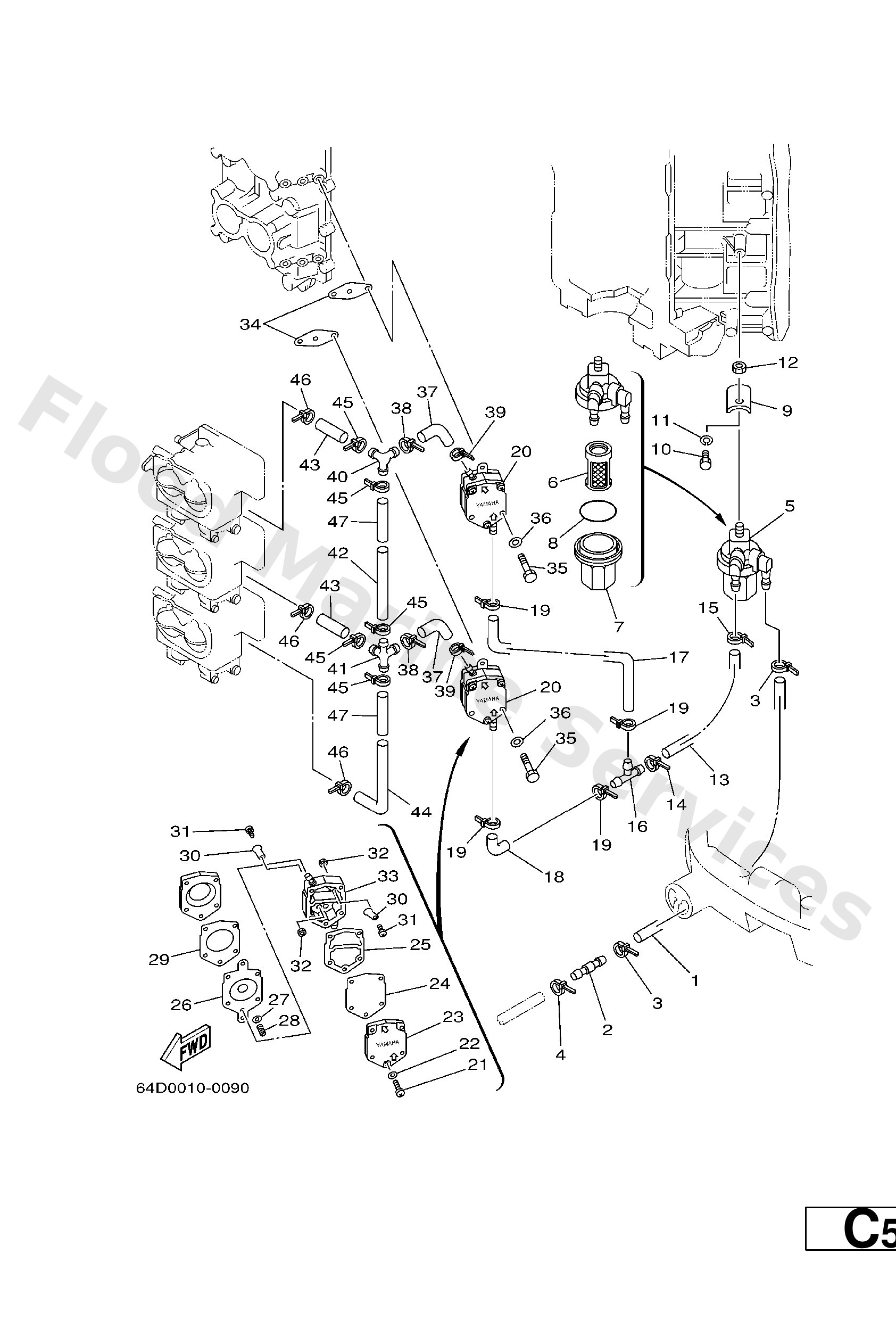

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6R32431301
175D/200F–X
Pipe 3 (L880)
Loading…
↗
1
6R32431320
Pipe 3
Loading…
↗
2
6R32437700
Pipe, joint 3
Loading…
↗
3
9046511M10
Clamp
Loading…
↗
5
6R32456000
Filter assembly
Loading…
↗
6
61N2456300
Element, filter
Loading…
↗
7
61N2452100
Cup, filter
Loading…
↗
8
9321032738
O-ring(1wg)
Loading…
↗
9
6482456602
Bracket, filter
Loading…
↗
10
9701306014
Bolt(gj3)
Loading…
↗
11
9290306100
Washer(6a1)
Loading…
↗
12
9538008600
Nut (661)
Loading…
↗
13
6G52431400
Pipe 4
Loading…
↗
16
6E52437800
Pipe, joint 3
Loading…
↗
17
6G52431500
Pipe 5
Loading…
↗
18
6E52431500
Pipe 5
Loading…
↗
20
6E52441003
Fuel pump assembly
Loading…
↗
21
9850305035
Screw, pan head (686)
Loading…
↗
22
9290305600
Washer, plain (646)
Loading…
↗
23
6E52441300
Body 2
Loading…
↗
24
6E52447100
Diaphragm
Loading…
↗
25
6E52443500
Gasket, body 2
Loading…
↗
26
6E52441100
Diaphragm
Loading…
↗
27
6482442400
Seat,spring
Loading…
↗
28
6E52442300
Spring, diaphragm
Loading…
↗
29
6E52443402
Gasket, body
Loading…
↗
30
6A02442101
Valve, check
Loading…
↗
31
6A01432500
Screw, pan head
Loading…
↗
32
9538003600
Nut (6g8)
Loading…
↗
33
6E52441210
Body 1
Loading…
↗
34
65024431A0
Gasket,fuel pump
Loading…
↗
35
9709506050
Bolt(jf7)
Loading…
↗
36
9299506600
Washer, plain (646)
Loading…
↗
37
6G52431610
Pipe 6
Loading…
↗
40
6G52437600
Pipe, joint 1
Loading…
↗
41
6G52437700
Pipe, joint 2
Loading…
↗
42
6G52431701
Pipe 7
Loading…
↗
43
6G52431810
Hose (l90)
Loading…
↗
44
6G52431910
Pipe 9
Loading…
↗
47
9044615M07
Hose(6g4)
Loading…
↗
